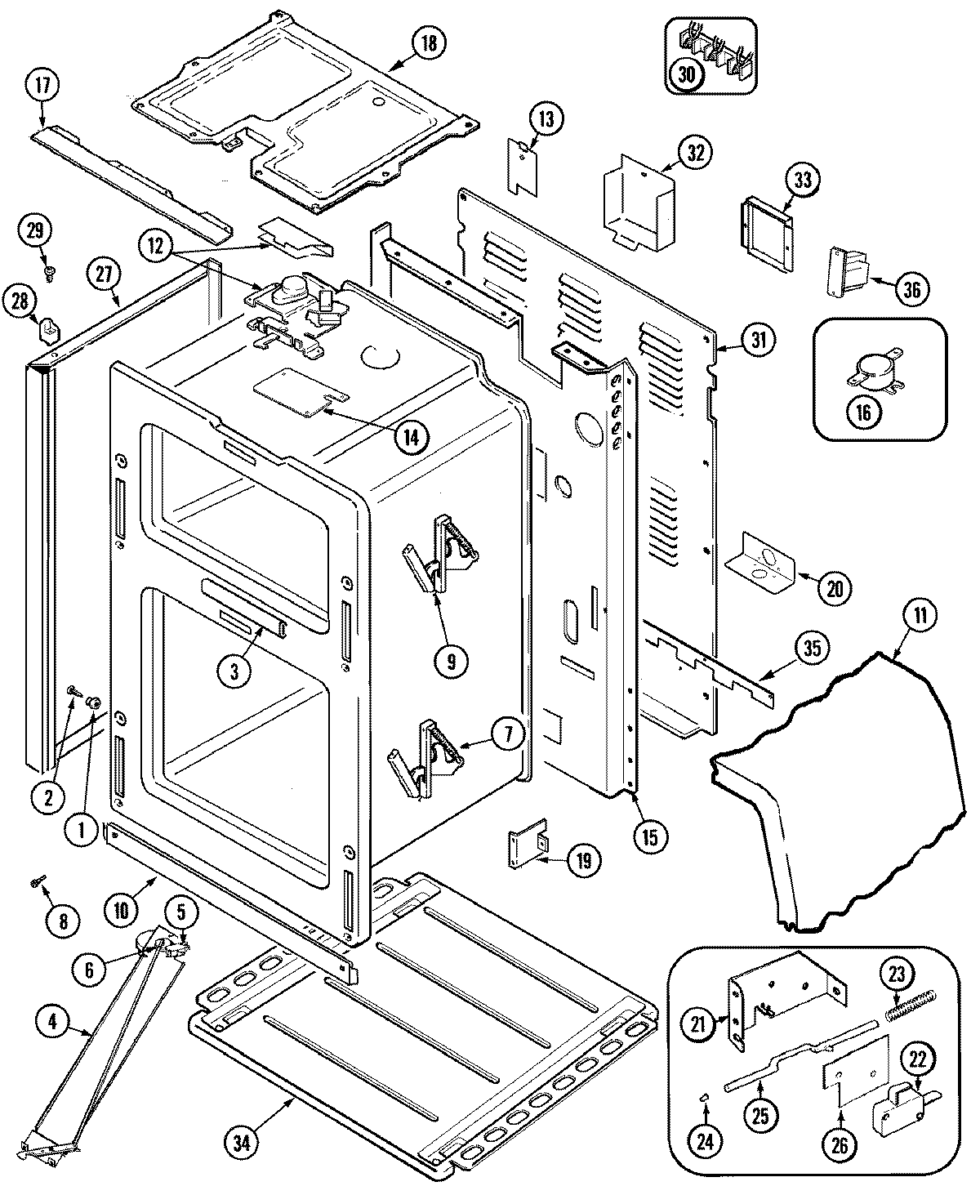

MER6872BAW 01 – BODY

Products

Position	Product
1	3823F015-51 Whirlpool Spacer
1	MAY 8004P024-60
2	W11693756 Whirlpool Screw Assembly
3	74004518 Whirlpool Frame Front Seal
4	MAY 74005485
5	MAY 74005532
6	MAY 74005531
7	HINGE-OVEN DOOR
8	SCREW (10-24X5/16-NI)
9	MAY 74004523
9	WP4159193 Whirlpool Screw
10	WP98008544 Whirlpool Screw Assembly
10	MAY 74007479
10	MAY 74004525
11	MAY 74004520
11	MAY 74004526
12	74007429 Whirlpool Door Latch Assembly Primary Lock
12	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
12	MAY 74005495
12	MAY 74007642
13	MAY 74005484
14	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
14	MAY 74005496
15	MAY 74006550
15	WP74003976 Whirlpool Screw
16	WP74004530 Whirlpool Limit Switch
17	MAY 74003384
18	MAY 74007367
18	MAY 74005505
18	MAY 74007366
19	MAY 74005499
19	MAY 74005500
20	W10190166 Whirlpool Service Bracket
21	BRACKET, SWITCH ACTUATOR
21	MAY 912012
22	MAY 7101P330-60
24	MAY 74001631
25	ROD, DOOR LIGHT SWITCH
26	MAY 74001872
27	MAY 74003236
28	SPACER, MAIN TOP (LT)
28	SPACER, MAIN TOP (RT)
29	MAY 7101P313-60
30	MAY 74004532
30	WPW10245259 Whirlpool Terminal Block
30	WP7103P027-60 Whirlpool Nut
31	MAY 74004576
32	MAY 74004577
33	SCREW
33	MAY 4005F427-51
34	MAY 74004828
34	MAY 74007449
35	MAY 74005653
36	MAY 74005456
36	SCREW (8BX3/8-NI)
