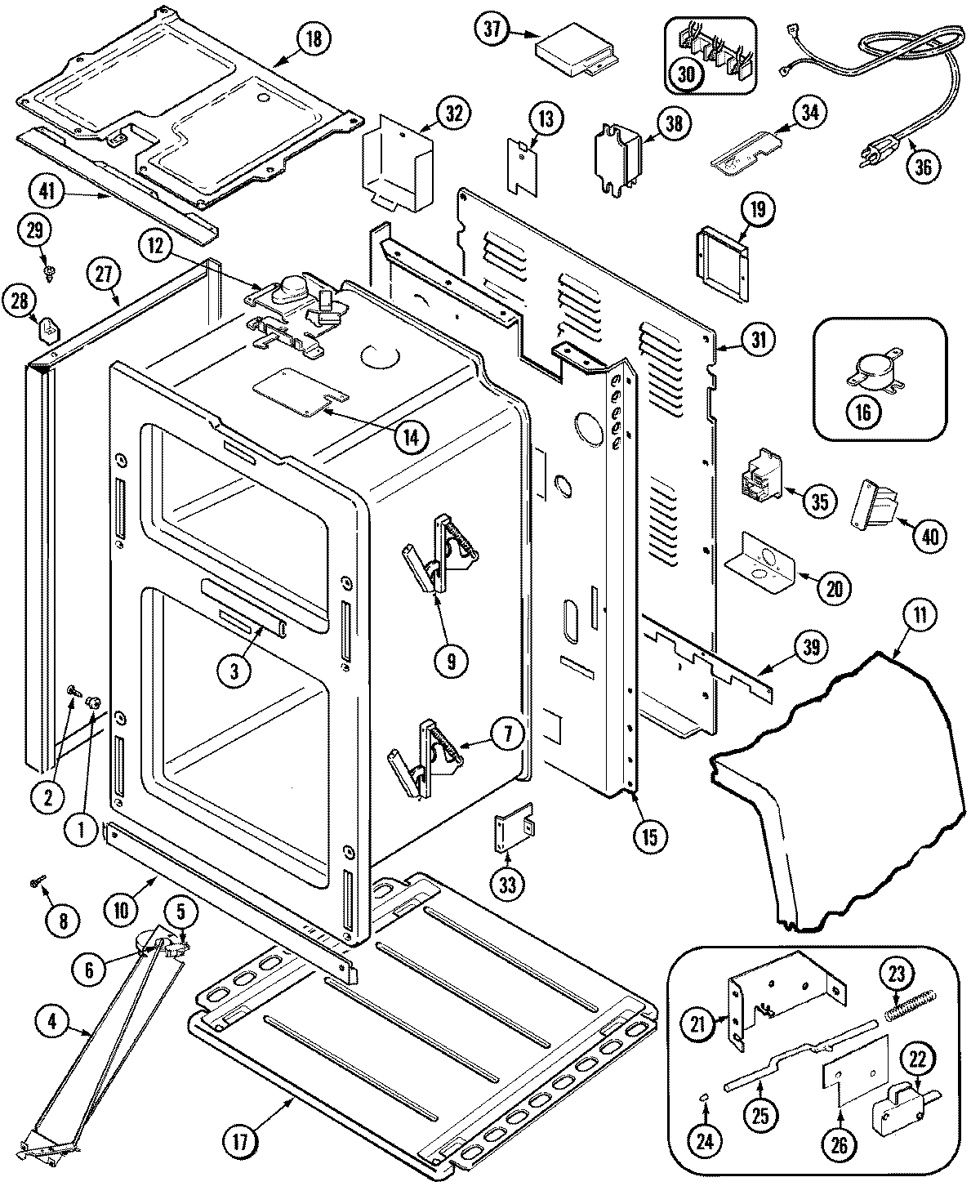

| 1 | MAY 8004P024-60 |
| 1 | 3823F015-51 Whirlpool Spacer |
| 2 | W11693756 Whirlpool Screw Assembly |
| 3 | 74004518 Whirlpool Frame Front Seal |
| 4 | MAY 74004520 |
| 4 | MAY 74005485 |
| 5 | MAY 74005532 |
| 6 | MAY 74005531 |
| 7 | HINGE-OVEN DOOR |
| 9 | SCREW (10-24X5/16-NI) |
| 9 | MAY 74004523 |
| 10 | MAY 74004524 |
| 10 | SCREW (8ABX1/2``-BLK) |
| 10 | MAY 74007478 |
| 11 | MAY 74004526 |
| 12 | MAY 74007642 |
| 12 | MAY 74007637 |
| 12 | MAY 74005517 |
| 12 | 74003975 Whirlpool Screw P1 (8ABX3/8-BLK) |
| 13 | MAY 74005484 |
| 14 | MAY 74005496 |
| 14 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 15 | MAY 74005497 |
| 15 | MAY 74002334 |
| 16 | WP74004530 Whirlpool Limit Switch |
| 17 | MAY 74004828 |
| 17 | MAY 74007449 |
| 18 | MAY 74005505 |
| 18 | MAY 74007366 |
| 18 | MAY 74007367 |
| 19 | MAY 4005F427-51 |
| 20 | W10190166 Whirlpool Service Bracket |
| 21 | BRACKET, SWITCH ACTUATOR |
| 21 | WPY706189 Whirlpool Stove Screw |
| 22 | MAY 7101P330-60 |
| 24 | MAY 74001631 |
| 25 | ROD, DOOR LIGHT SWITCH |
| 26 | MAY 74001872 |
| 27 | MAY 74003283 |
| 28 | SPACER, MAIN TOP (LT) |
| 28 | SPACER, MAIN TOP (RT) |
| 29 | MAY 7101P313-60 |
| 30 | MAY 7401P038-60 |
| 30 | MAY 74004532 |
| 31 | MAY 74004576 |
| 32 | MAY 74004577 |
| 33 | MAY 74005499 |
| 33 | MAY 74005500 |
| 34 | MAY 74001598 |
| 35 | WP74003482 Whirlpool Auxiliary Relay |
| 36 | MAY 7402P050-60 |
| 37 | MAY 74003479 |
| 37 | SCREW |
| 38 | MAY 74004690 |
| 39 | MAY 74005653 |
| 40 | MAY 74005456 |
| 40 | SCREW (8BX3/8-NI) |
| 41 | MAY 74003384 |
