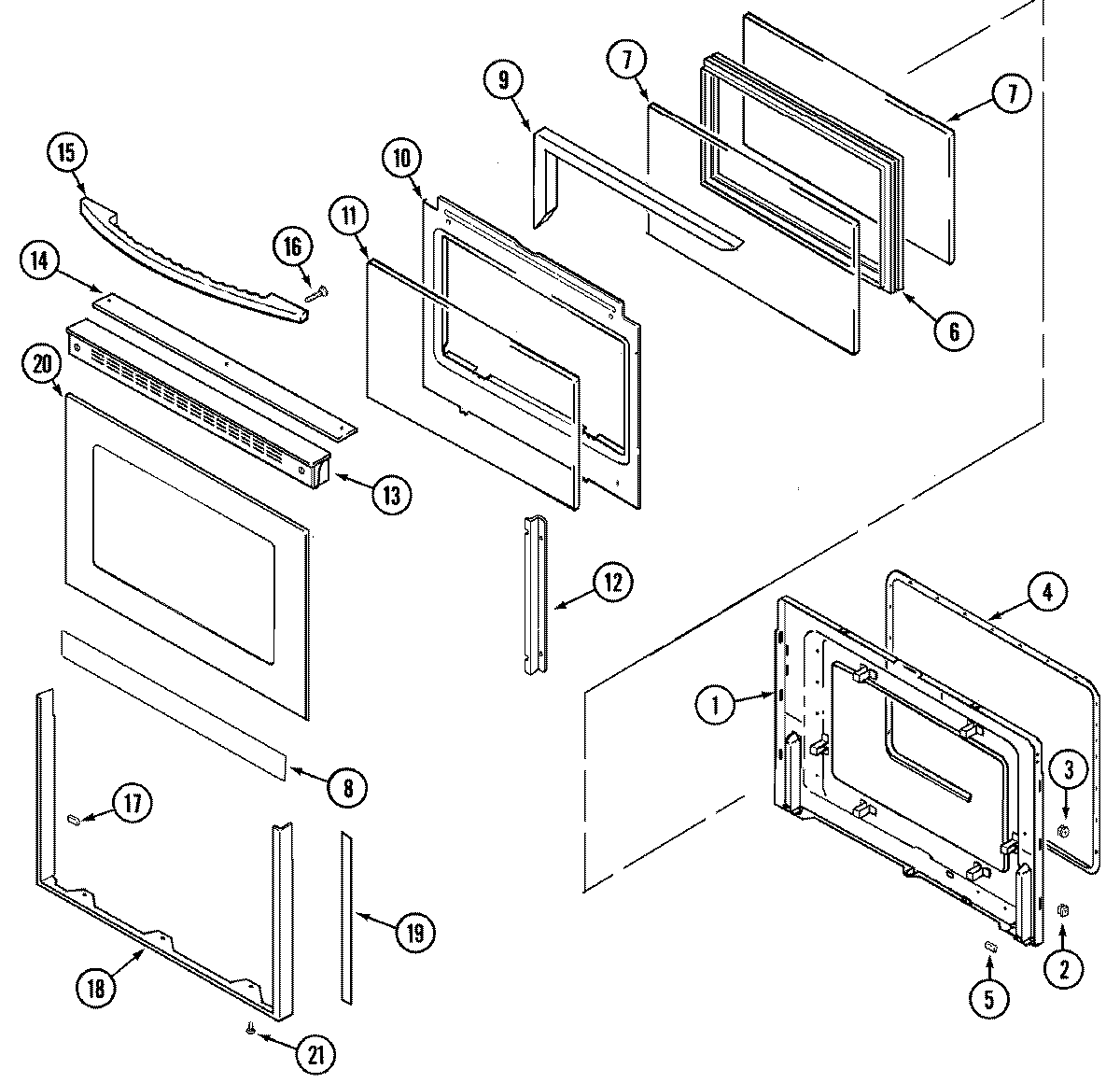

MER6872BCQ 03 – DOOR (LOWER-BCB/BCQ/BCW)

MER6872BCQ 03 – DOOR (LOWER-BCB/BCQ/BCW)

Written by

in

MER6872BCQ 03 – DOOR (LOWER-BCB/BCQ/BCW)

Products

PositionProduct
1MAY 74003642
2MAY 74003643
2NUT, SNAP (ROUND-BLK)
3NUT, SNAP (ROUND-WHT)
4GASKT-DOOR OVEN
5WP74005546 Whirlpool RU Spacer
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8TAPE, FOIL 29“ X 2“
9INSULATION, OVEN DOOR
10MAY 74003648
11GLASS, DOOR
12MAY 74003650
13MAY 74006634
14MAY 74004978
14MAY 74005245
15MAY 74006377
16WP74006515 Whirlpool Washer Screw
18MAY 74005162
18WP74009541 Whirlpool Screw Assembly
19WP74004224 Whirlpool Tape
20MAY 74006637
21SCREW
