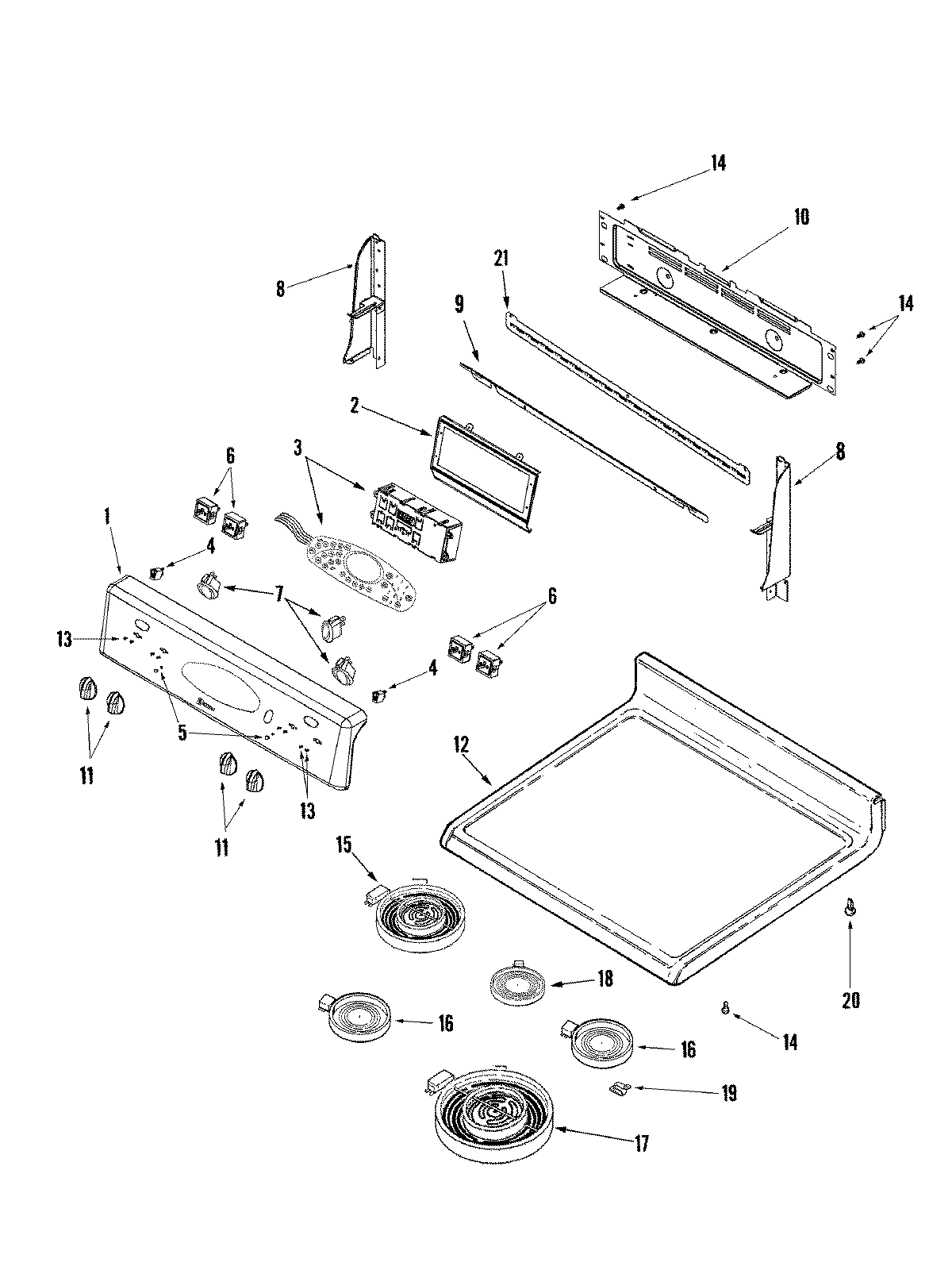

MER6875AAQ 02 – CONTROL PANEL/TOP ASSEMBLY

MER6875AAQ 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER6875AAQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74010056
2MAY 74010058
3MAY 74009982
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6WP74008940 Whirlpool Infinite Switch
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
77403P984-60 Whirlpool RO Switch
8MAY 74009668
8MAY 74009671
8WP74003976 Whirlpool Screw
8WP74009541 Whirlpool Screw Assembly
9MAY 74009978
10MAY 74010804
10SCREW (8BX3/8-NI)
1174008946 Whirlpool Oven Bisque Knob
12MAY 74010032
13SCREW
14SCREW
15MAY 74009898
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17W10823713 Whirlpool Surface Element
18WP74009899 Whirlpool Element
198004P093-60 Whirlpool Support C
20W11189172 Whirlpool Glide Drawer
21WP90767 Whirlpool Screw
21MAY 74009701
