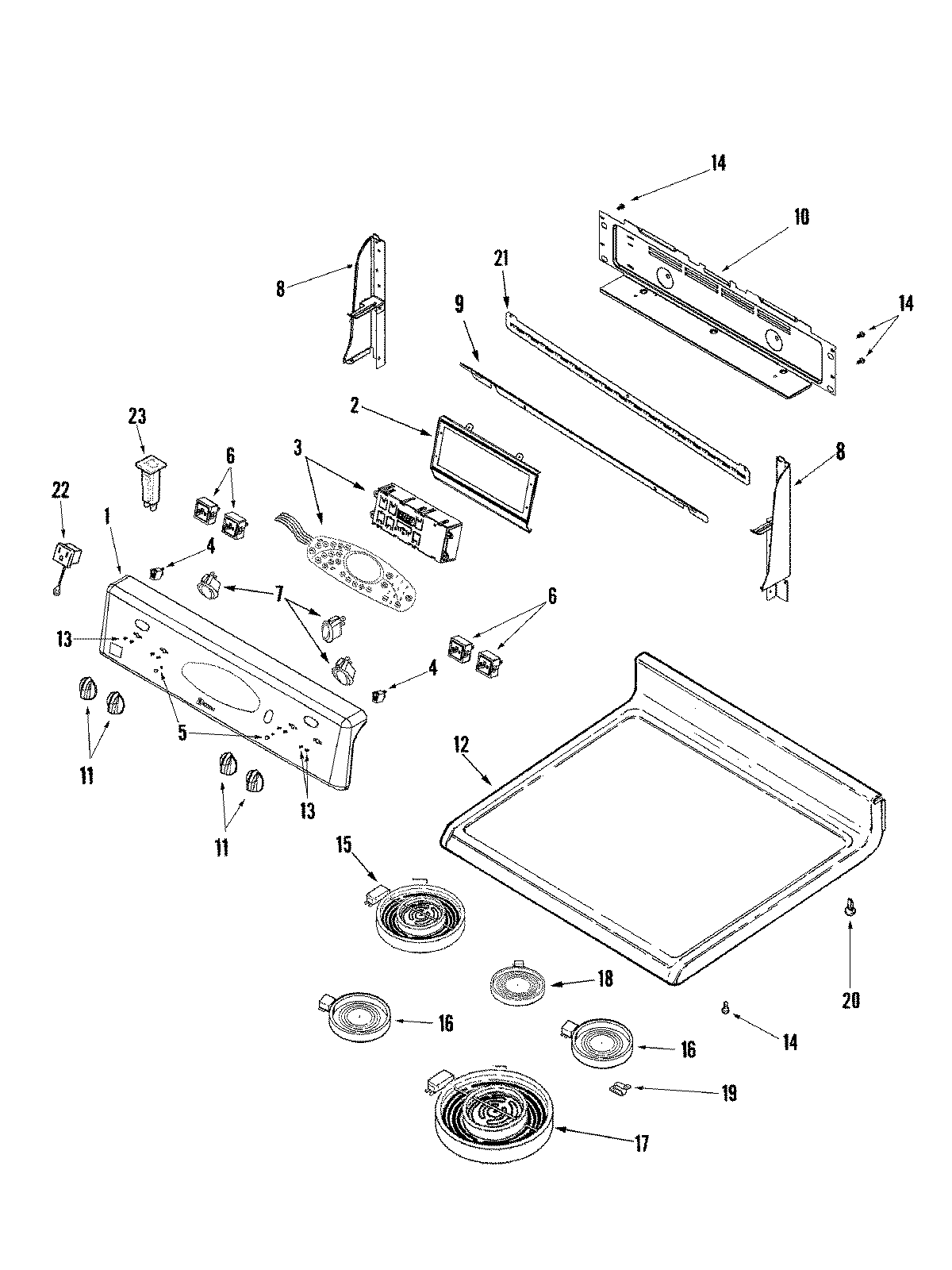

MER6875ACF 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74010400
2	MAY 74010058
3	MAY 74009981
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6	WP74008940 Whirlpool Infinite Switch
7	WP74010226 Whirlpool RO Switch
8	WP74003976 Whirlpool Screw
8	WP98008544 Whirlpool Screw Assembly
8	MAY 74010211
8	MAY 74010212
9	MAY 74009978
10	MAY 74010804
10	SCREW (8BX3/8-NI)
11	WP74008947 Whirlpool Knob White
12	MAY 74010036
13	SCREW
14	SCREW
15	MAY 74009898
16	W10823711 Whirlpool Surface Element Left Front and Right Rear
17	W10823713 Whirlpool Surface Element
18	WP74009899 Whirlpool Element
19	8004P093-60 Whirlpool Support C
20	W11189172 Whirlpool Glide Drawer
21	WP90767 Whirlpool Screw
21	MAY 74009701
22	MAY 71003069
23	MAY 74009322
