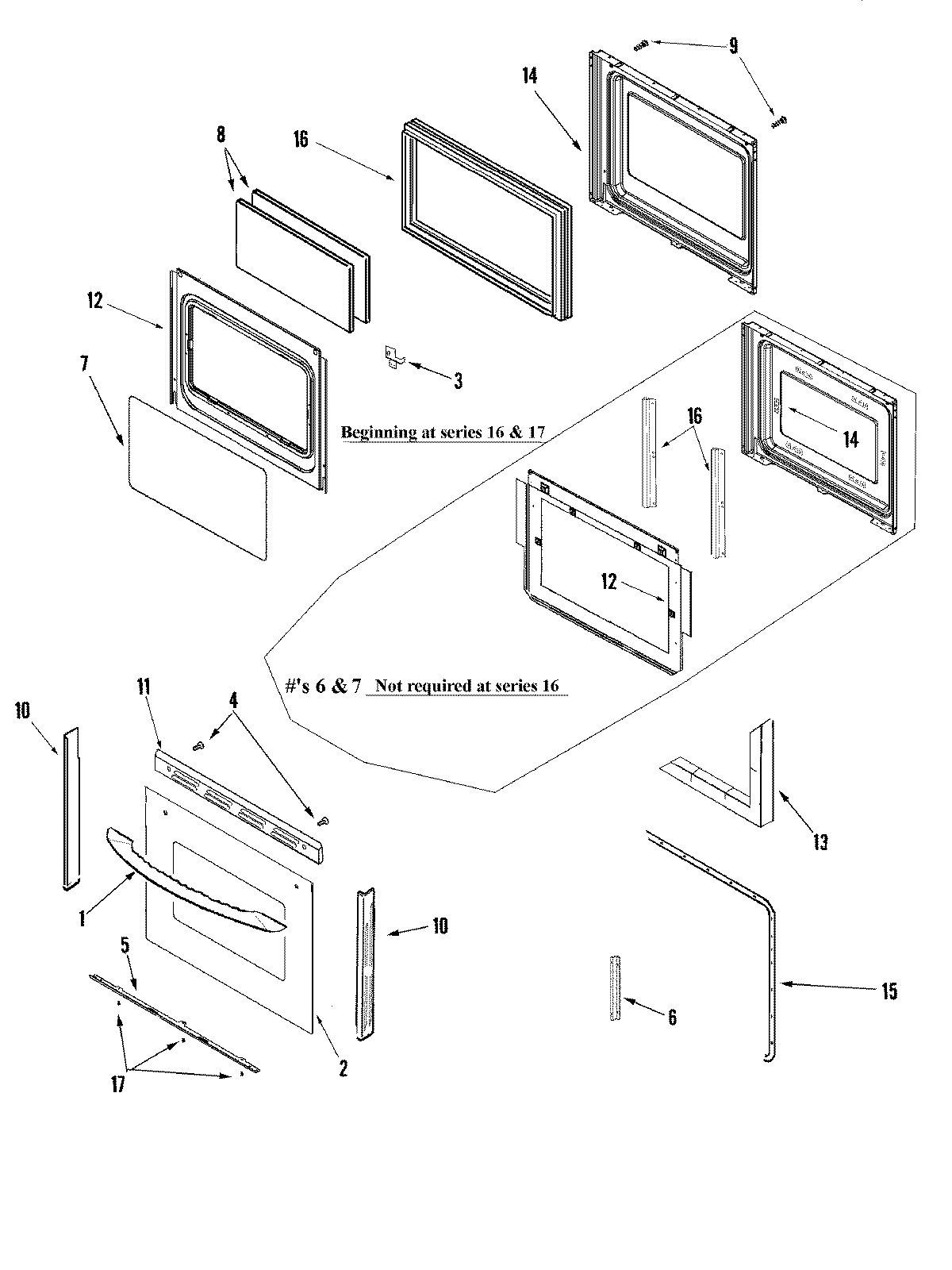

MER6875ACF 03 – DOOR (LOWER)

Products

Position	Product
1	WP74011768 Whirlpool Door Handle
2	MAY 12002396
3	SCREW (10ABX1/4P TR ZN)
3	3801F832-45 Whirlpool Bracket
3	WP74005546 Whirlpool RU Spacer
3	3801F831-45 Whirlpool Bracket Assembly
4	WP74006515 Whirlpool Washer Screw
5	WP3807F708-71 Whirlpool Support
6	MAY 74003650
7	GLASS, DOOR
7	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
8	74003645 Whirlpool Range Oven Door Inner Glass
10	WP3608F116-71 Whirlpool Door Trim
10	WP3608F117-71 Whirlpool Door Trim
11	WP3608F141-71 Whirlpool Door Trim
11	TAPE, FOIL 29`` X 2``
11	WP98008544 Whirlpool Screw Assembly
12	MAY 74009502
12	3601F373-51 Whirlpool Baffle
12	MAY 7101P356-60
13	INSULATION, OVEN DOOR
14	MAY 74003642
14	NUT, SNAP (ROUND-BLK)
14	NUT, SNAP (ROUND-WHT)
14	LINING, DOOR
15	GASKT-DOOR OVEN
16	3801F886-51 Whirlpool Mounting Bracket
16	SCREW, 8 X 1/2
16	FRAME, GLASS
16	SCREW
