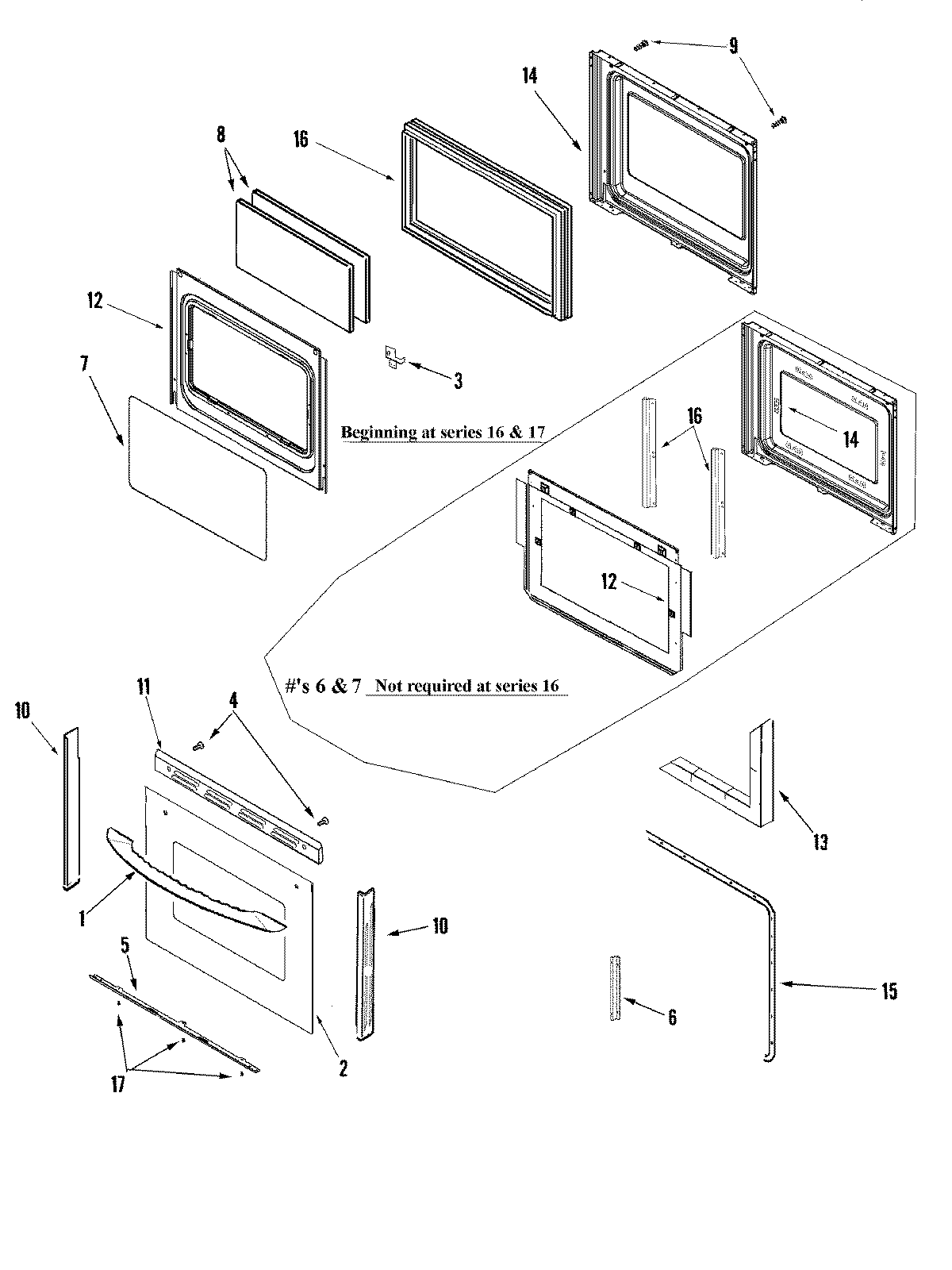

MER6875ACN 03 – DOOR (LOWER)

Products

Position	Product
1	WP74011778 Whirlpool Door Handle
2	12002397 Whirlpool Oven Door Glass Kit (Bisque)
3	SCREW (10ABX1/4P TR ZN)
3	3801F831-45 Whirlpool Bracket Assembly
3	3801F832-45 Whirlpool Bracket
3	WP74005546 Whirlpool RU Spacer
4	WP74006515 Whirlpool Washer Screw
5	SUPPORT, GLASS (BSQ)
6	MAY 74003650
7	GLASS, DOOR
7	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
8	74003645 Whirlpool Range Oven Door Inner Glass
10	TRIM, DOOR (BSQ-RT)
10	TRIM, DOOR (BSQ-LT)
11	MAY 74009691
11	TAPE, FOIL 29“ X 2“
11	WP74009541 Whirlpool Screw Assembly
12	MAY 74009502
12	3601F373-51 Whirlpool Baffle
12	MAY 7101P356-60
13	INSULATION, OVEN DOOR
14	MAY 74003642
14	NUT, SNAP (ROUND-BLK)
14	NUT, SNAP (ROUND-WHT)
14	LINING, DOOR
15	GASKT-DOOR OVEN
16	3801F886-51 Whirlpool Mounting Bracket
16	SCREW, 8 X 1/2
16	FRAME, GLASS
16	SCREW
