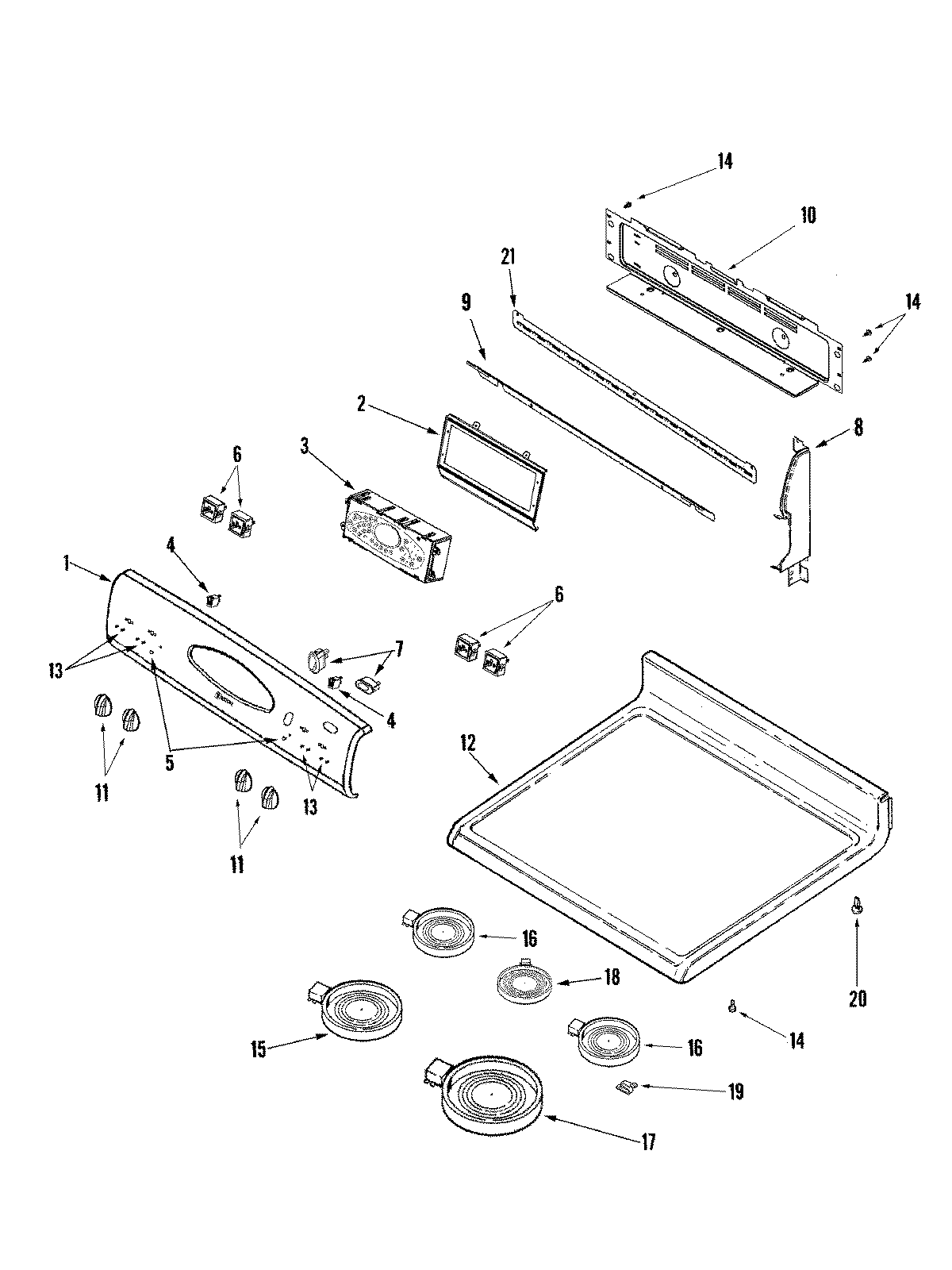

MER6875BAB 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	PANEL, CONTROL (BLACK)
2	MAY 74010058
3	MAY 8507P301-60
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	SWITCH-ELMNT
6	WP74008940 Whirlpool Infinite Switch
6	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
7	7403P985-60 Whirlpool Rocker Switch (Black)
8	MAY 74010202
8	MAY 74010201
8	WP98008545 Whirlpool Screw
8	WP74003976 Whirlpool Screw
9	MAY 74009978
10	SCREW (8BX3/8-NI)
10	MAY 74010804
11	MAY 74008945
12	MAY 5706M616-09
13	SCREW
14	SCREW
15	MAY 74009898
16	W10823711 Whirlpool Surface Element Left Front and Right Rear
17	MAY 74011844
18	ELEMENT (CTR)
18	WP74009899 Whirlpool Element
19	8004P093-60 Whirlpool Support C
20	W11189172 Whirlpool Glide Drawer
21	MAY 74009701
21	WP90767 Whirlpool Screw
