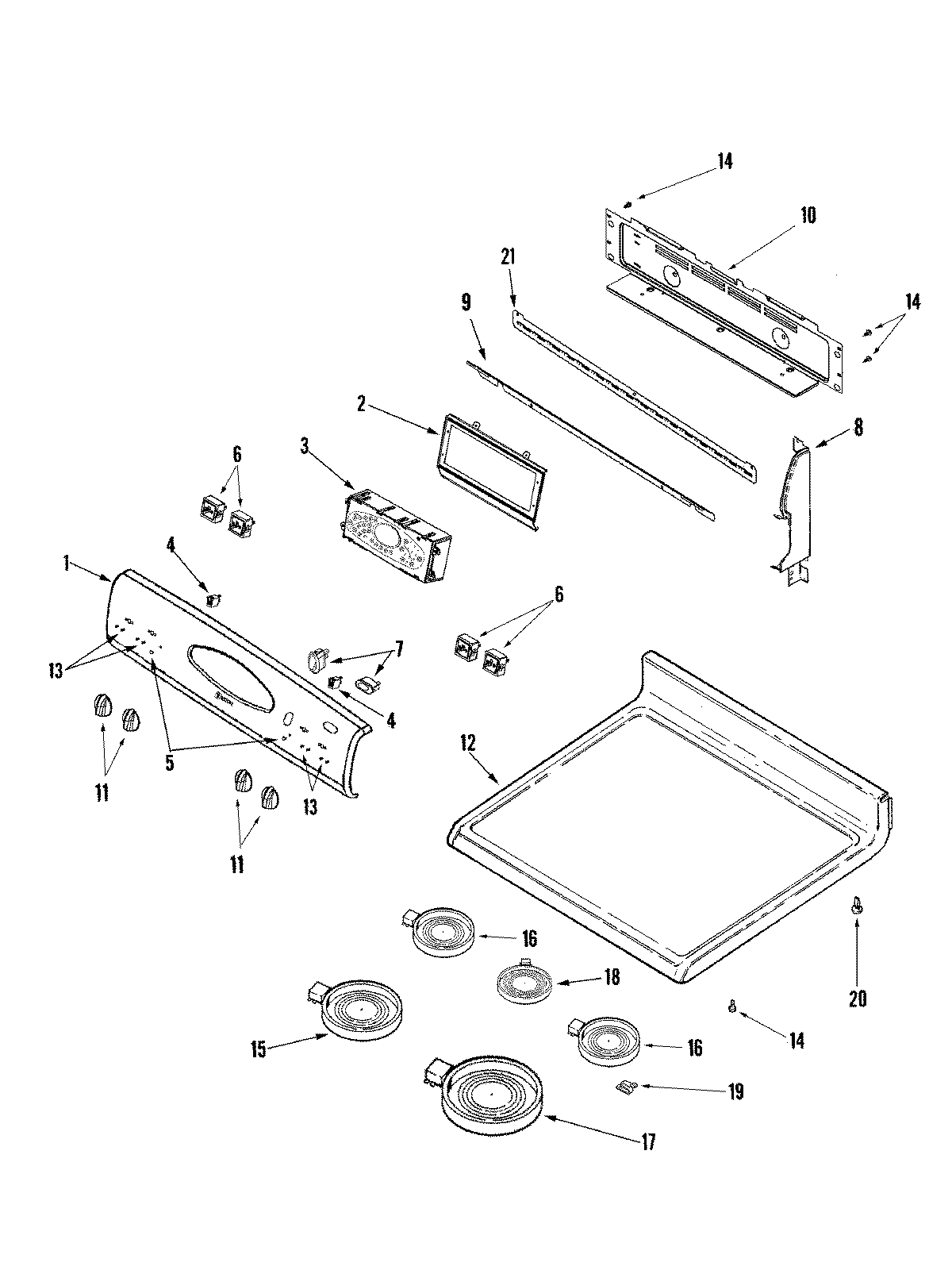

MER6875BAF 02 – CONTROL PANEL/TOP ASSEMBLY

MER6875BAF 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER6875BAF 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 2602D347-81
2MAY 74010058
3MAY 8507P301-60
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6SWITCH-ELMNT
6WP74008940 Whirlpool Infinite Switch
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
7WP74010226 Whirlpool RO Switch
8MAY 74010713
8MAY 74010212
8WP74003976 Whirlpool Screw
8WP98008544 Whirlpool Screw Assembly
9MAY 74009978
10SCREW (8BX3/8-NI)
10MAY 74010804
11WP74008947 Whirlpool Knob White
12MAY 5706X616-81
13SCREW
14SCREW
15MAY 74009898
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17MAY 74011844
18ELEMENT (CTR)
18WP74009899 Whirlpool Element
198004P093-60 Whirlpool Support C
20W11189172 Whirlpool Glide Drawer
21MAY 74009701
21WP90767 Whirlpool Screw
