MER6875BAF 03 – DOOR (LOWER)

MER6875BAF 03 – DOOR (LOWER)

Written by

in

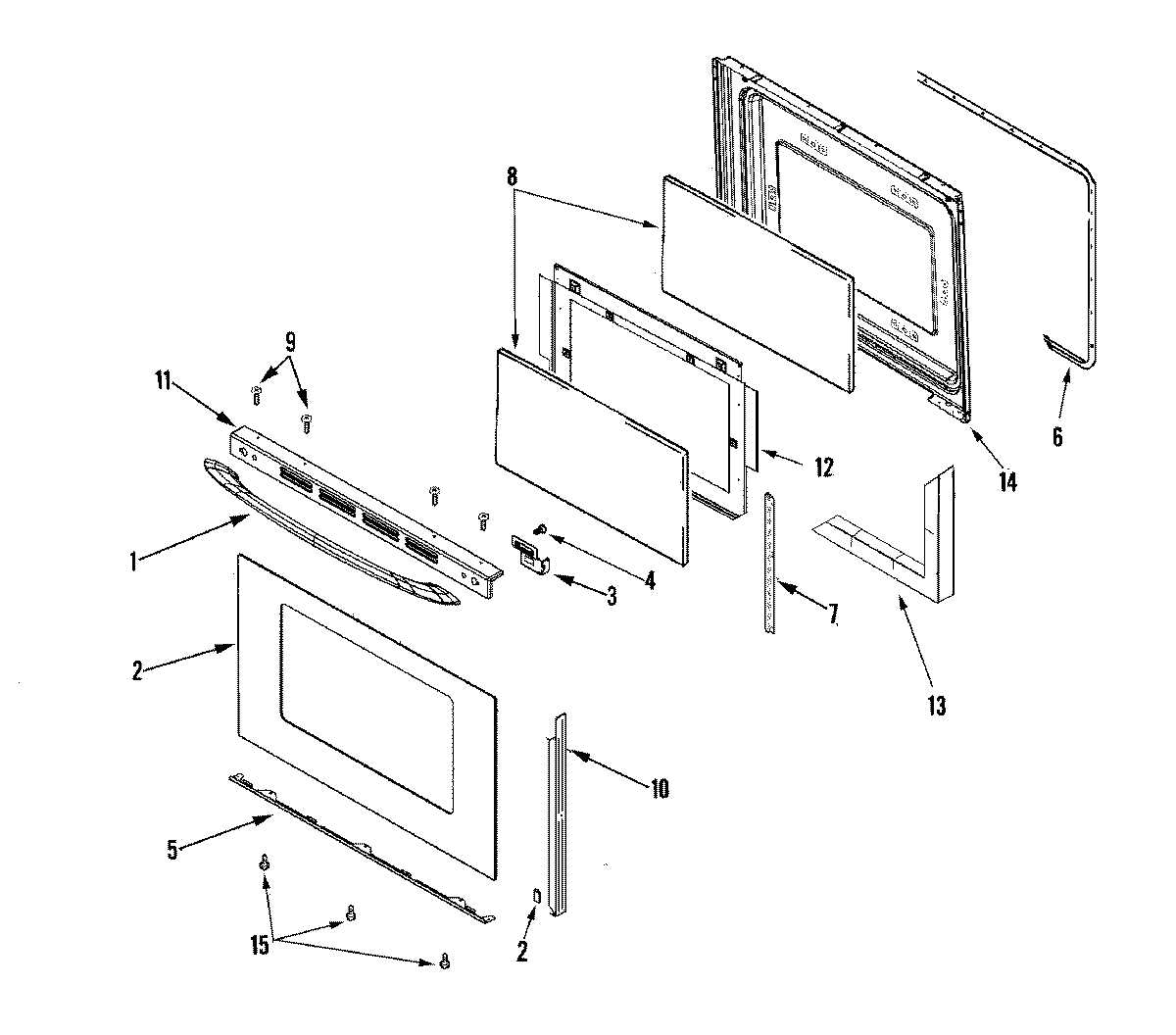

MER6875BAF 03 – DOOR (LOWER)

Products

PositionProduct
1WP74011768 Whirlpool Door Handle
2MAY 12002396
33801F832-45 Whirlpool Bracket
33801F831-45 Whirlpool Bracket Assembly
3WP74006515 Whirlpool Washer Screw
3WP74005546 Whirlpool RU Spacer
3SCREW (10ABX1/4P TR ZN)
5WP3807F708-71 Whirlpool Support
6GASKT-DOOR OVEN
73801F886-51 Whirlpool Mounting Bracket
874003645 Whirlpool Range Oven Door Inner Glass
10WP3608F117-71 Whirlpool Door Trim
10WP3608F116-71 Whirlpool Door Trim
10WP98008544 Whirlpool Screw Assembly
10WP74009014 Whirlpool Double Tape
11WP3608F141-71 Whirlpool Door Trim
123601F373-51 Whirlpool Baffle
13INSULATION, OVEN DOOR
14NUT, SNAP (ROUND-WHT)
14NUT, SNAP (ROUND-BLK)
14SCREW
14LINING, DOOR
15SCREW, 8 X 1/2
