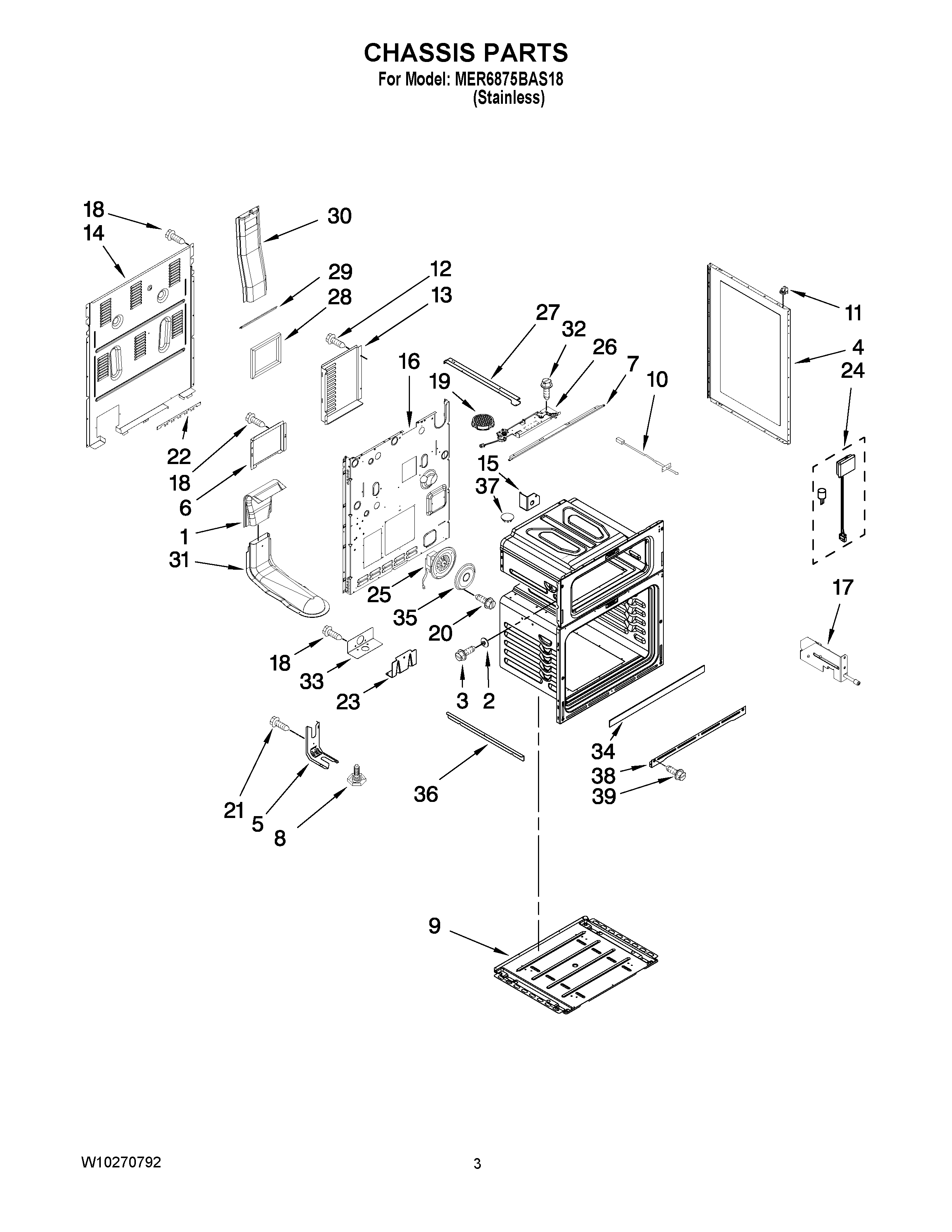

MER6875BAS18 03 – CHASSIS PARTS

Products

Position	Product
NI	Insulation, Back (Lower Oven)
NI	MAY 7002P434-60
NI	MAY 7002P490-60
1	MAY 8026P082-60
2	MAY 8004P024-60
3	MAY 7101P618-60
4	Panel, Side (Black) (2)
5	BRACKET, ANTI-TIP
6	MAY 4005F747-51
7	MAY 3801F924-80
8	Leg, Leveling
9	MAY W10312768
10	SENSOR, OVEN
10	MAY 7430P042-60
11	SPACER, MAIN TOP (RT)
11	SPACER, MAIN TOP (LT)
12	MAY 7101P388-60
13	MAY 4005F592-51
14	MAY W10167412
15	MAY 3801F706-51
15	MAY 3801F705-51
16	MAY 4002F332-51
17	MAY 7450P108-60
18	MAY 7101P376-60
19	SCREEN, SMOKE ELM.
20	MAY 7101P385-60
21	SCREW, ANTI-TIP KIT
22	SHIELD, POWER CORD
23	MAY W10260703
24	MAY 7407P181-60
25	MAY W10206588
26	MAY 8002P077-60
27	BOTTOM, BURNER BOX (RIGHT)
27	BOTTOM, BURNER BOX (LEFT)
28	MAY 7201P089-60
29	MAY 3604F335-51
30	MAY 4022W017-45
31	MAY 4006W139-45
31	MAY 4006W129-45
32	Screw (Black) (2)
33	BRACKET, POWER SUPPLY
34	MAY 7212P066-60
35	MAY 3605F305-19
36	MAY 3823F015-51
37	MAY 7718P030-60
38	TRIM, KICKPLATE (BLACK)
39	Screw (2) (Black)
