MER6875BCS17 05 – LOWER DOOR PARTS – Aparts

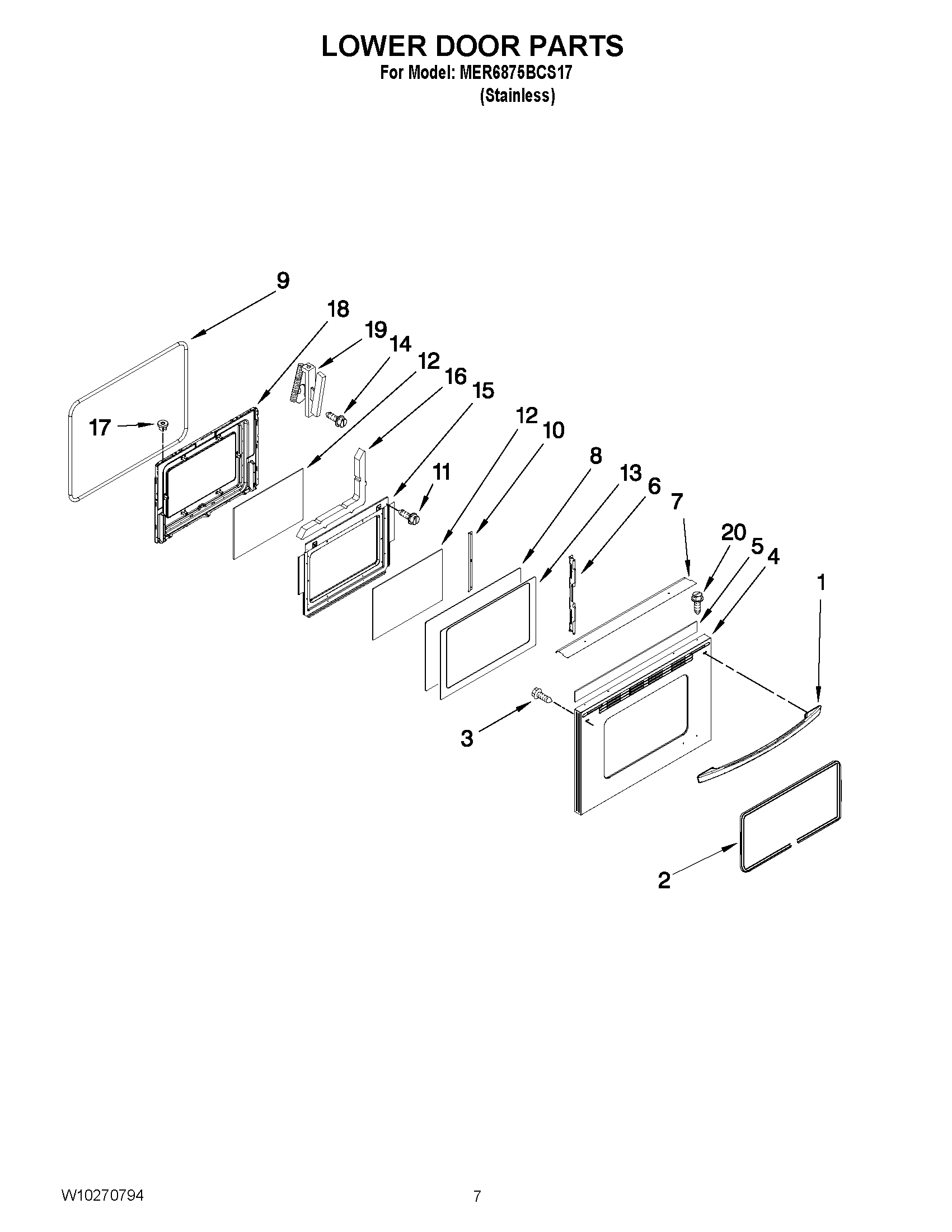

MER6875BCS17 05 – LOWER DOOR PARTS

Products

Position	Product
1	HANDLE, DOOR (STAINLESS)
2	MAY 7201P141-60
3	MAY 7101P388-60
4	GLASS, DOOR OUTER
5	Insulation, Foil
6	Retainer, Glass Support (2)
7	MAY 3604F441-51
8	Glass, Door
9	MAY W10162384
10	BRACKET, INNER GLASS
11	MAY 7101P376-60
12	Glass, Inner
13	MAY 7902P752-60
14	SCREW (10-24X5/16-NI)
15	MAY 3601F373-51
16	MAY 7002P246-60
17	MAY 7103P141-60
18	MAY 2402W312-19
19	MAY 7106P141-60
20	Screw (2) (Black)
