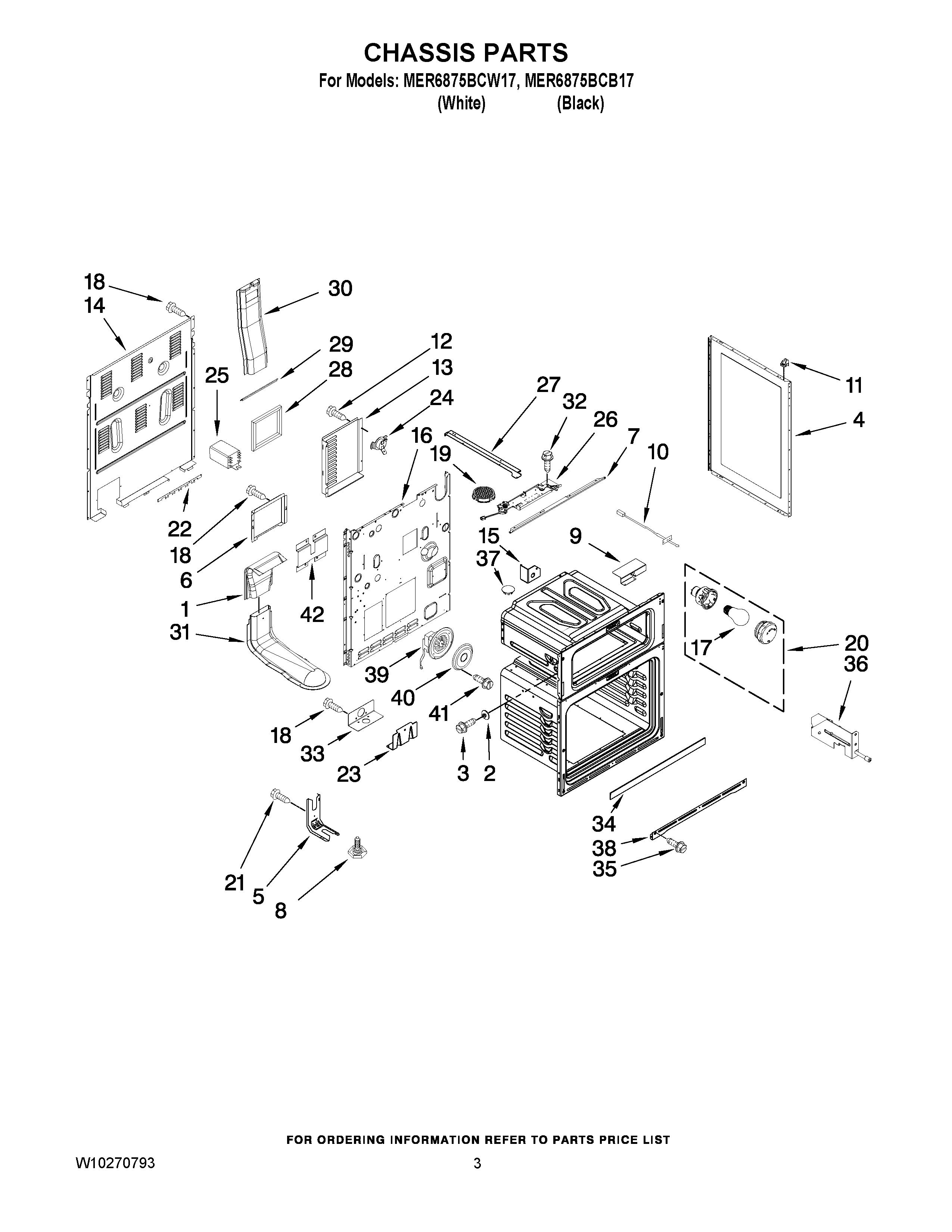

MER6875BCW17 03 – CHASSIS PARTSadmin2025-04-26T08:55:01+00:00MER6875BCW17 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | MAY 7002P276-60 |
| NI | MAY W10215032 |
| NI | MAY 7002P475-60 |
| NI | MAY 7002P434-60 |
| NI | Insulation, Back (Lower Oven) |
| NI | MAY 7002P490-60 |
| 1 | MAY 8026P082-60 |
| 2 | MAY 8004P024-60 |
| 3 | MAY 7101P618-60 |
| 4 | Panel, Side (White) (2) |
| 4 | Panel, Side (Black) (2) |
| 5 | BRACKET, ANTI-TIP |
| 6 | MAY 4005F747-51 |
| 7 | MAY 3801F924-80 |
| 8 | Leg, Leveling |
| 9 | MAY 3604F440-51 |
| 10 | SENSOR, OVEN |
| 10 | MAY 7430P042-60 |
| 11 | SPACER, MAIN TOP (LT) |
| 11 | SPACER, MAIN TOP (RT) |
| 12 | MAY 7101P388-60 |
| 13 | MAY 4005F592-51 |
| 14 | MAY W10167412 |
| 15 | MAY 3801F705-51 |
| 15 | MAY 3801F706-51 |
| 16 | MAY 4002F332-51 |
| 17 | RANGE ONLY 40W 120V APPL BULB |
| 18 | MAY 7101P376-60 |
| 19 | SCREEN, SMOKE ELM. |
| 20 | MAY 7407P181-60 |
| 21 | SCREW, ANTI-TIP KIT |
| 22 | SHIELD, POWER CORD |
| 23 | MAY W10260703 |
| 24 | SWITCH, HI-LIMIT (176 F/216 F) |
| 25 | RELAY, AUXILARY |
| 26 | MAY 8002P078-60 |
| 27 | BOTTOM, BURNER BOX (LEFT) |
| 27 | BOTTOM, BURNER BOX (RIGHT) |
| 28 | MAY 7201P089-60 |
| 29 | MAY 3604F335-51 |
| 30 | MAY 4022W017-45 |
| 31 | MAY 4006W139-45 |
| 31 | MAY 4006W129-45 |
| 32 | Screw (Black) (2) |
| 33 | BRACKET, POWER SUPPLY |
| 34 | MAY 7212P066-60 |
| 35 | Screw (2) (Black) |
| 36 | MAY 7450P108-60 |
| 37 | MAY 7718P030-60 |
| 38 | TRIM, KICKPLATE (BLACK) |
| 39 | MAY W10206588 |
| 40 | MAY 3605F305-19 |
| 41 | MAY 7101P385-60 |
| 42 | INSULATOR, HEAT SHIELD |
