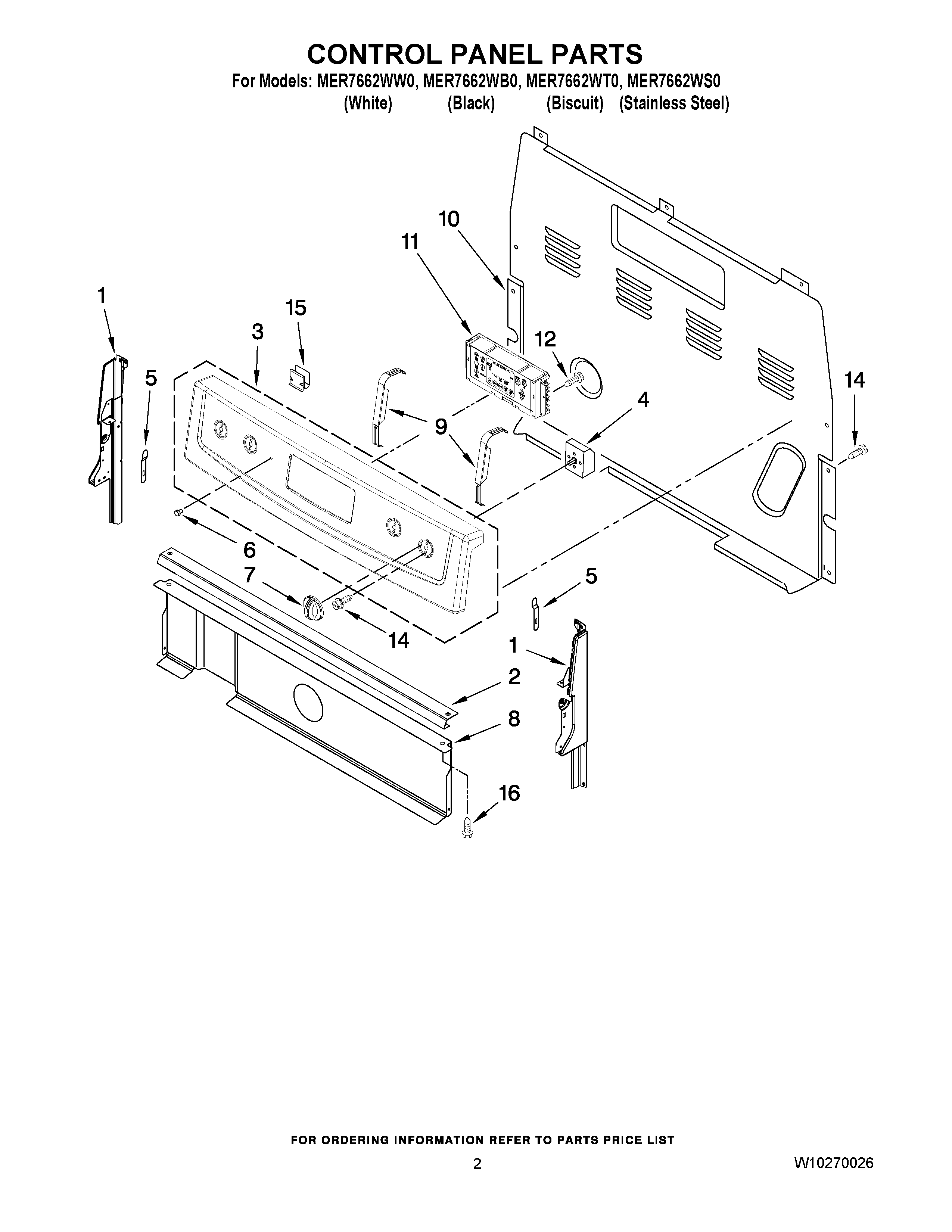

MER7662WB0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (BLACK (LEFT))
1	ENDCAP (WHITE (LEFT))
1	MAY W10184435
1	ENDCAP (BLACK (RIGHT))
1	ENDCAP (WHITE (RIGHT))
1	MAY W10184436
2	Bracket, Console
3	MAY W10225535
3	MAY W10225536
3	MAY W10225537
3	MAY W10225538
4	SWITCH, INFINITE (LEFT-FRONT)
4	Switch, Infinite (LF,RF)
4	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5	CLIP, SPRING
6	MAY 3196068
7	KNOB, INFINITE (BISCUIT)
7	MAY W10211372
7	KNOB, INFINITE (WHITE)
8	SHIELD, HEAT
9	BRACKET, MOUNTING, EOC
10	COVER, UPPER REAR
11	MAY W10236240
11	MAY W10236239
11	MAY W10236241
12	SCREW
14	SCREW
15	MAY 8273564
16	Screw (Black)
16	Screw (White)
16	MAY 8281194
