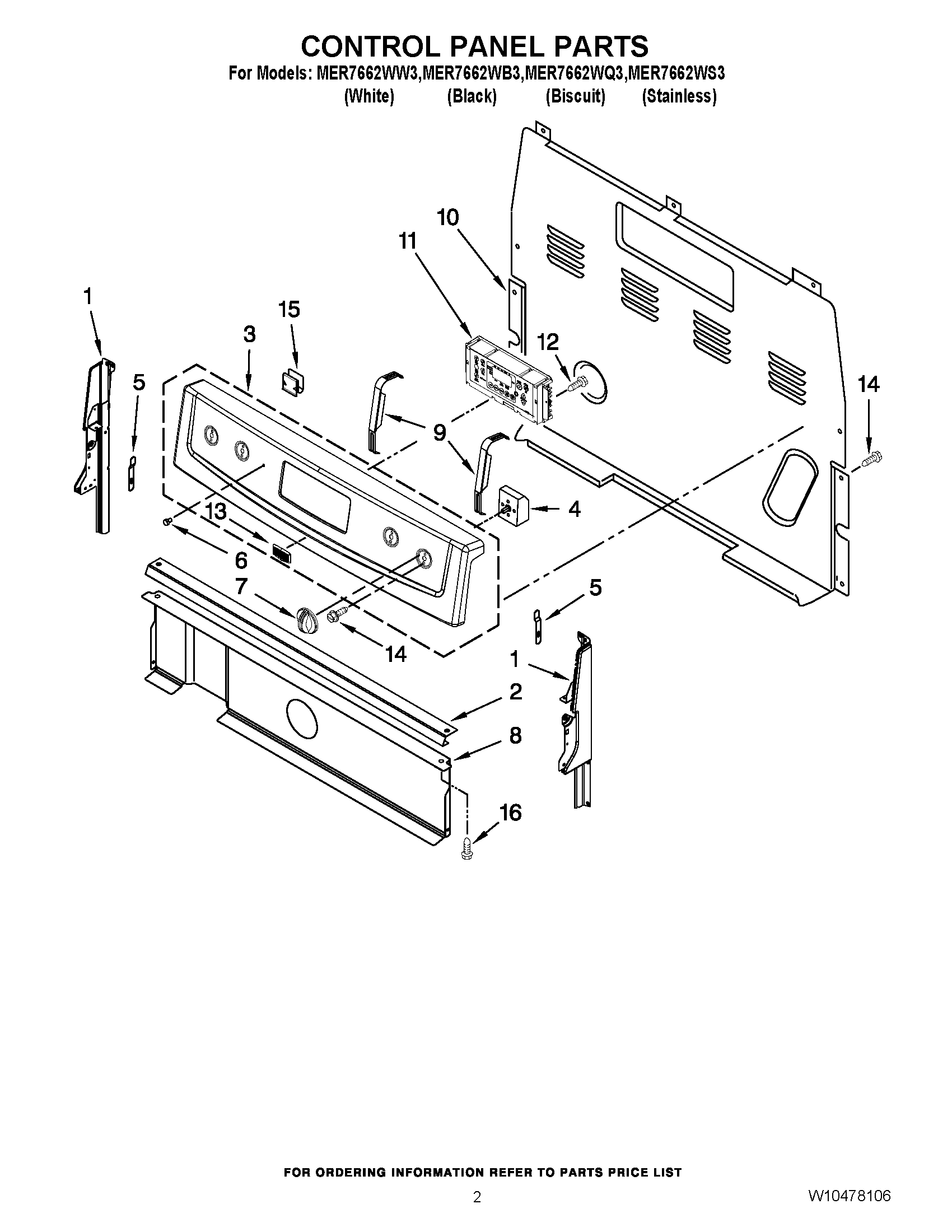

MER7662WB3 02 – CONTROL PANEL PARTS

MER7662WB3 02 – CONTROL PANEL PARTS

Written by

in

MER7662WB3 02 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10184436
1ENDCAP (BLACK (LEFT))
1MAY W10184435
1ENDCAP (WHITE (LEFT))
1ENDCAP (BLACK (RIGHT))
1ENDCAP (WHITE (RIGHT))
2Bracket, Console
3MAY W10292010
3MAY W10292009
3MAY W10292011
3PANEL, CONTROL (STAINLESS)
4SWITCH, INFINITE (LEFT-FRONT)
4SWITCH, INFINITE (DUAL) (LEFT FRONT)
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5CLIP, SPRING
6MAY 3196068
7MAY W10211372
7KNOB, INFINITE (BISCUIT)
7KNOB, INFINITE (WHITE)
8SHIELD, HEAT
9BRACKET, MOUNTING, EOC
10COVER, UPPER REAR
11MAY W10236240
11MAY W10236239
11MAY W10236241
12SCREW
13MAY W10199708
14SCREW
15MAY 8273564
16SCREW
