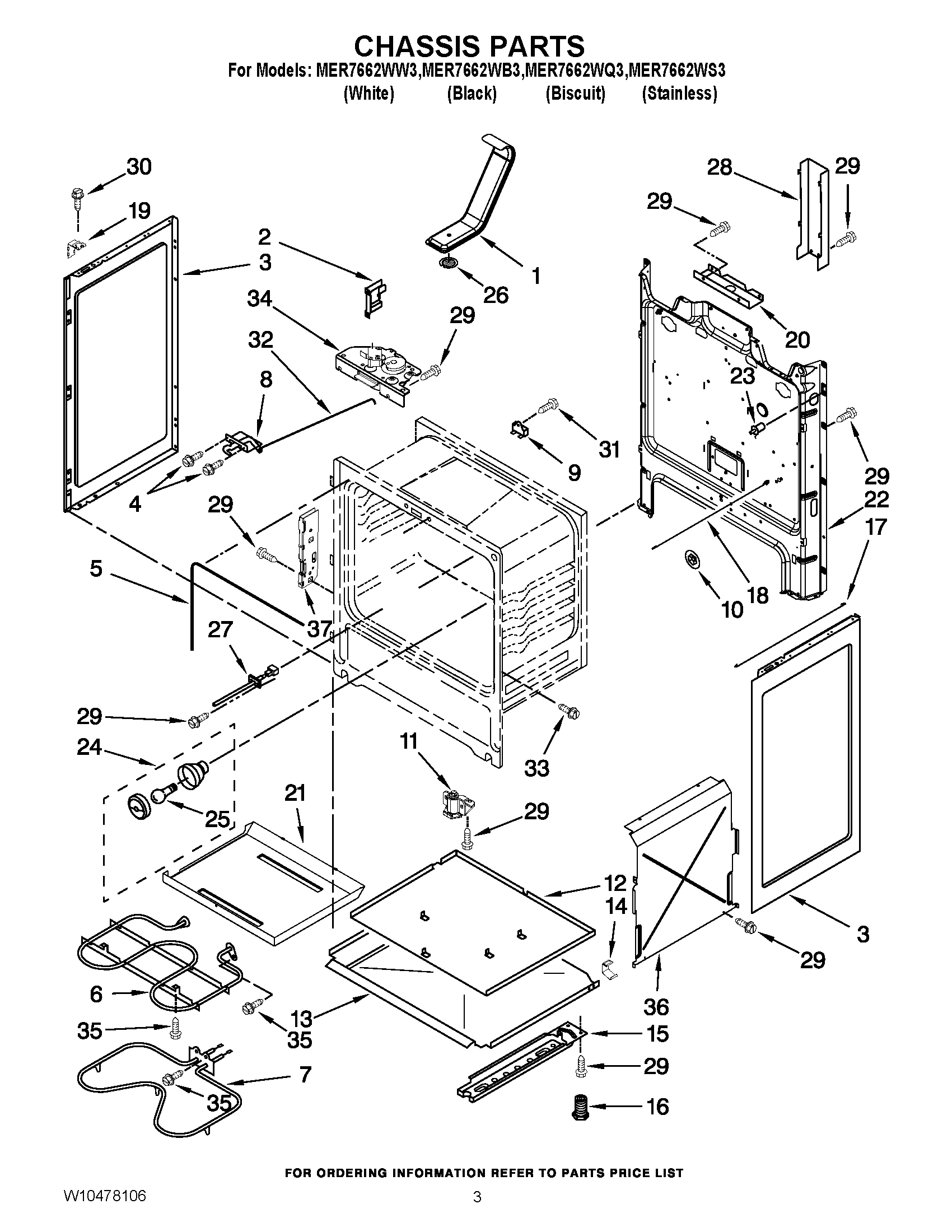

MER7662WB3 03 – CHASSIS PARTS

MER7662WB3 03 – CHASSIS PARTS

Written by

in

MER7662WB3 03 – CHASSIS PARTS

Products

Position	Product
NI	MAY W10208653
NI	INSULATION, BACK
NI	INSULATION, FLUE
NI	MAY 9759689
1	TUBE, VENT
2	BRACKET, OVEN SUPPORT
3	PANEL, SIDE (BISCUIT)
3	MAY W10322770
3	MAY W10322769
4	SCREW
5	MAY 8522416
6	ELEMENT, BROIL
7	ELEMENT, BAKE (HIDDEN)
8	ASSEMBLY, DOOR LATCH (FRONT)
9	FUSE, THERMAL
10	MAY 3400968
11	ASSEMBLY, FRONT FOOT
12	SHIELD, HEAT
13	TRAY, INSULATION
14	CLIP, PANEL
15	ASSEMBLY, BASE RAIL (RIGHT)
15	ASSEMBLY, BASE RAIL (LEFT)
16	FOOT, LEVELING
17	ROD, INSULATION RETAINER
18	ROD, DOOR SWITCH
19	CLIP, SPRING STEEL
20	BRACKET, SERVICE
21	TRAY, HIDDEN BAKE
22	BACK, MAIN
23	MAY 9757262
24	ASSEMBLY, LIGHT
25	BULB, OVEN LIGHT
26	MAY 9761301
27	SENSOR, OVEN
28	COVER, TERMINAL BLOCK
29	SCREW
30	SCREW
31	SCREW
32	ROD, LATCH
33	SCREW
34	ASSEMBLY, DOOR LATCH (REAR)
35	SCREW
36	RETAINER, INSULATION
37	RECEIVER, HINGE
