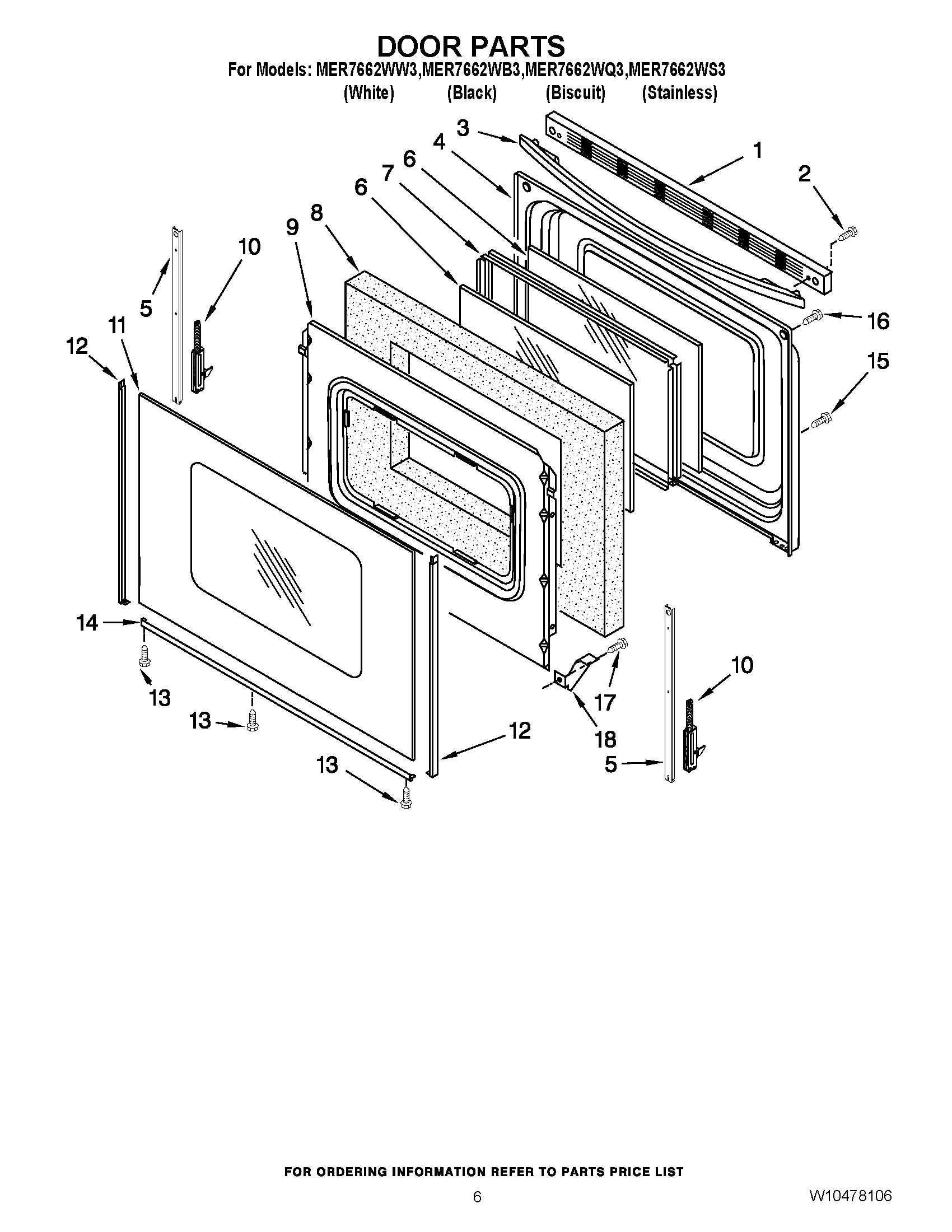

MER7662WB3 05 – DOOR PARTS

MER7662WB3 05 – DOOR PARTS

Written by

in

MER7662WB3 05 – DOOR PARTS

Products

PositionProduct
1MAY W10310923
1TRIM, TOP (BLACK)
1TRIM, TOP (WHITE)
2SCREW
3MAY W10323586
3MAY W10323584
3MAY W10171750
3MAY W10323581
4LINER, DOOR
5STRAP, DOOR
6GLASS, INNER
7FRAME, GLASS
8INSULATION, DOOR STRIP
9RETAINER, INSULATION
10HINGE, DOOR (PASSIVE)
10HINGE, ACTIVE (WITH SPRING)
11MAY W10106405
11GLASS, OUTER (WHITE)
11MAY W10106406
11GLASS, OUTER (STAINLESS)
12TRIM, SIDE (BLACK, LEFT HAND)
12TRIM, SIDE (BLACK, RIGHT HAND)
12MAY 8523173
12TRIM, SIDE (WHITE (LEFT))
12MAY 8523167
12TRIM, SIDE (WHITE (RIGHT))
13MAY 3196160
14MAY 8523178
14TRIM, LOWER (BLACK)
14TRIM, LOWER (WHITE)
15SCREW
16MAY W10031780
17SCREW
18CLIP, PANEL
