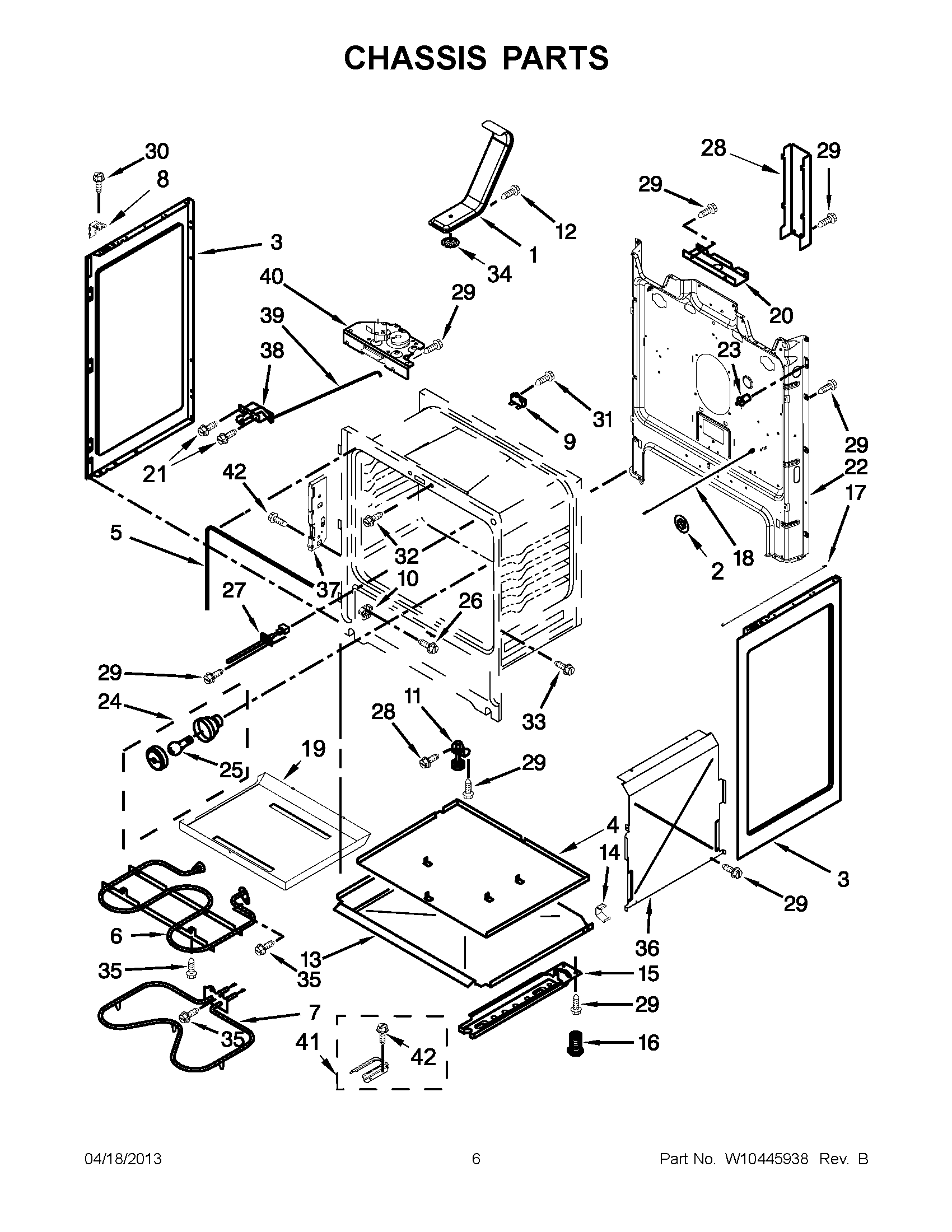

MER7662WQ2 03 – CHASSIS PARTS

Products

Position	Product
NI	MAY 9759689
NI	INSULATION, FLUE
NI	INSULATION, BACK
NI	MAY W10208653
1	TUBE, VENT
2	MAY 3400968
3	MAY W10322770
3	PANEL, SIDE (BISCUIT)
3	MAY W10322769
4	SHIELD, HEAT
5	MAY 8522416
6	ELEMENT, BROIL
7	ELEMENT, BAKE
8	CLIP, SPRING STEEL
9	FUSE, THERMAL
10	Glide, Drawer
11	ASSEMBLY, FRONT FOOT
13	TRAY, INSULATION
14	CLIP, PANEL
15	RAIL, BASE
16	FOOT, LEVELING
17	ROD, INSULATION RETAINER
18	ROD, DOOR SWITCH
19	TRAY, HIDDEN BAKE
20	BRACKET, SERVICE
21	SCREW
22	BACK, MAIN
23	MAY 9757262
24	ASSEMBLY, LIGHT
25	BULB, OVEN LIGHT
26	SCREW
27	SENSOR, OVEN
28	COVER, TERMINAL BLOCK
29	SCREW
30	SCREW
31	SCREW
32	MAY W10031780
33	SCREW
34	MAY 9761301
35	SCREW
36	RETAINER, INSULATION
37	RECEIVER, HINGE
38	ASSEMBLY, DOOR LATCH (FRONT)
39	ROD, LATCH
40	ASSEMBLY, DOOR LATCH (REAR)
41	MAY W10017440
42	MAY 3148604
