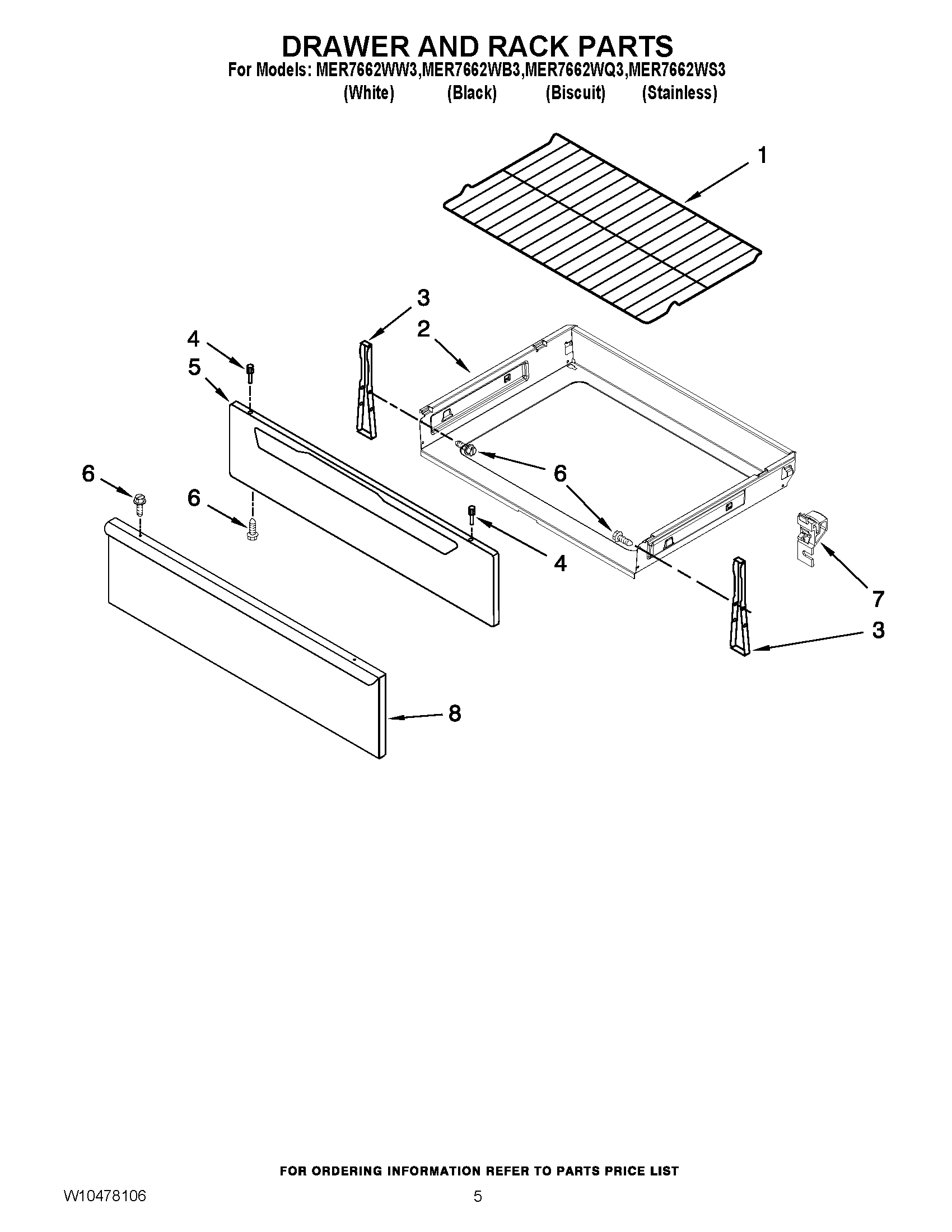

MER7662WQ3 04 – DRAWER AND RACK PARTS

Products

PositionProduct
1RACK, OVEN
2MAY W10300032
3BRACKET, MOUNTING DRAWER
4RIVET, PUSH (WHITE)
4RIVET, PUSH (BLACK)
5PANEL, DRAWER FRONT (BLACK)
5PANEL, DRAWER FRONT (WHITE)
5MAY 8272501
6SCREW
7GLIDE, REAR DRAWER
7GLIDE, DRAWER
8PANEL, DRAWER (SS MODEL)
