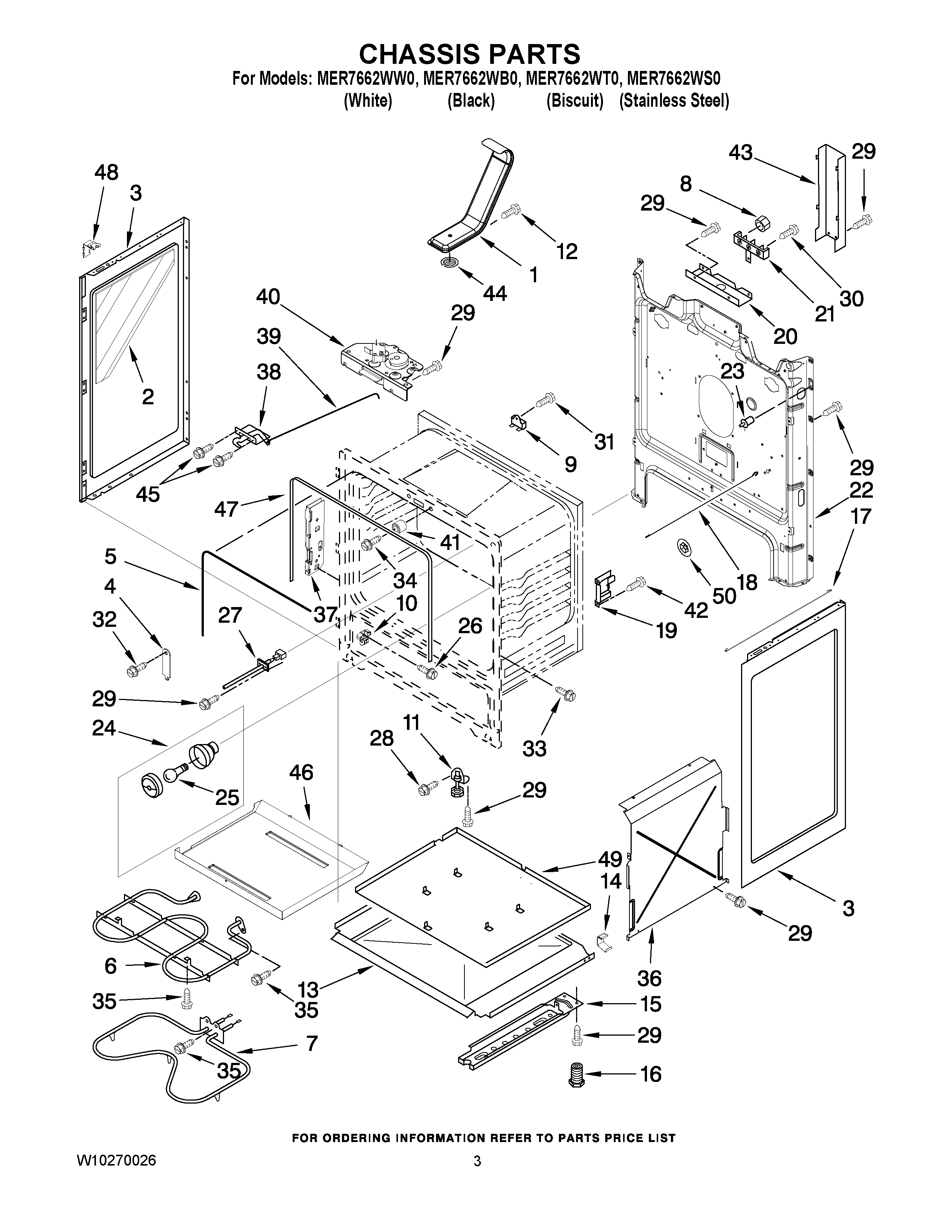

MER7662WS0 03 – CHASSIS PARTSadmin2025-04-26T08:54:37+00:00MER7662WS0 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | MAY W10208653 |
| NI | MAY 8272613 |
| NI | MAY W10219986 |
| 1 | TUBE, VENT |
| 2 | MAY W10182346 |
| 3 | Panel, Side (2) (White) |
| 3 | MAY 8053832 |
| 3 | MAY 8272519 |
| 4 | Clip,Door Mntg(2) |
| 5 | MAY 8522416 |
| 6 | ELEMENT, BROIL |
| 7 | ELEMENT, BAKE |
| 8 | WP7103P027-60 Whirlpool Nut |
| 9 | FUSE, THERMAL |
| 10 | Glide, Drawer |
| 11 | MAY 3196037 |
| 12 | MAY 3196566 |
| 13 | TRAY, INSULATION |
| 14 | CLIP, PANEL |
| 15 | RAIL, BASE |
| 16 | FOOT, LEVELING |
| 17 | ROD, INSULATION RETAINER |
| 18 | ROD, DOOR SWITCH |
| 19 | MAY 3186116 |
| 20 | BRACKET, SERVICE |
| 21 | Block, Terminal |
| 22 | MAY 8274034 |
| 23 | MAY 9757262 |
| 24 | MAY 3196701 |
| 25 | BULB, OVEN LIGHT |
| 26 | SCREW |
| 27 | SENSOR, OVEN |
| 28 | Screw |
| 29 | SCREW |
| 30 | SCREW |
| 31 | SCREW |
| 32 | MAY W10031780 |
| 33 | SCREW |
| 34 | Screw (Black) |
| 35 | SCREW |
| 36 | RETAINER, INSULATION |
| 37 | BRKT - MOUNTING |
| 38 | ASSEMBLY, DOOR LATCH (FRONT) |
| 39 | ROD, LATCH |
| 40 | ASSEMBLY, DOOR LATCH (REAR) |
| 41 | SPACER, DOOR |
| 42 | SCREW |
| 43 | MAY 9758283 |
| 44 | MAY 9761301 |
| 45 | SCREW |
| 46 | TRAY, HIDDEN BAKE |
| 47 | OVEN SEAL, FLANGE |
| 48 | CLIP, SPRING STEEL |
| 49 | SHIELD, HEAT |
| 50 | MAY 3400968 |
