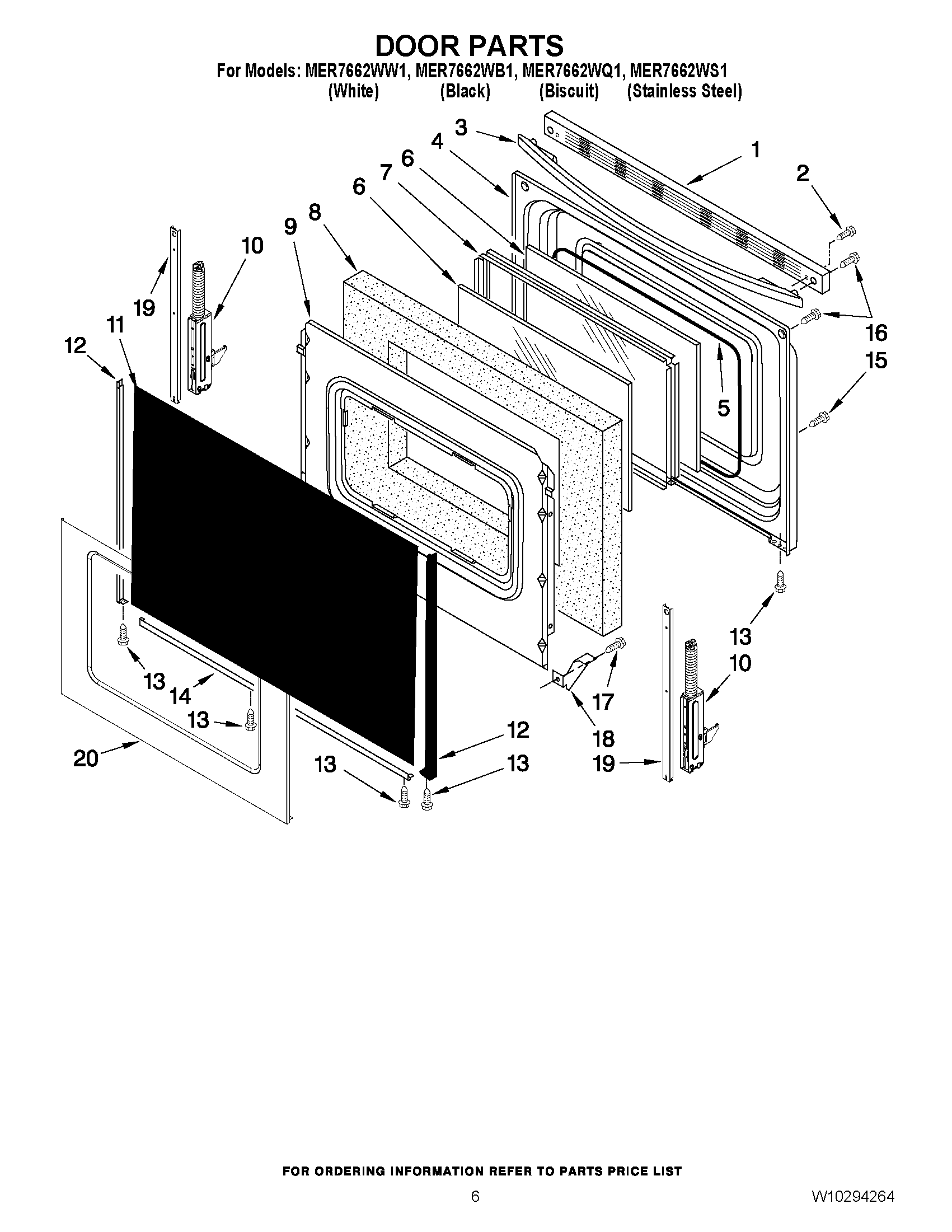

MER7662WW1 05 – DOOR PARTS

MER7662WW1 05 – DOOR PARTS

Written by

in

MER7662WW1 05 – DOOR PARTS

Products

PositionProduct
1MAY W10181675
1Trim, Top (Black)
1MAY W10144869
2SCREW
3MAY W10111311
3MAY W10171750
3MAY W10111310
3MAY W10111309
4LINER, DOOR
5MAY W10238912
6GLASS, INNER
7MAY 3186289
8INSULATION, DOOR STRIP
9RETAINER, INSULATION
10Hinge, Door
11GLASS, OUTER (WHITE)
11MAY W10106406
11MAY W10106405
12TRIM, SIDE (BLACK, RIGHT HAND)
12TRIM, SIDE (BLACK, LEFT HAND)
12MAY 8523167
12MAY 8523173
12TRIM, SIDE (WHITE (LEFT))
12TRIM, SIDE (WHITE (RIGHT))
13MAY 3196160
14MAY 8523178
14TRIM, LOWER (WHITE)
14TRIM, LOWER (BLACK)
15SCREW
16MAY W10031780
17SCREW
18CLIP, PANEL
19STRAP, DOOR
20GLASS, OUTER (STAINLESS)
