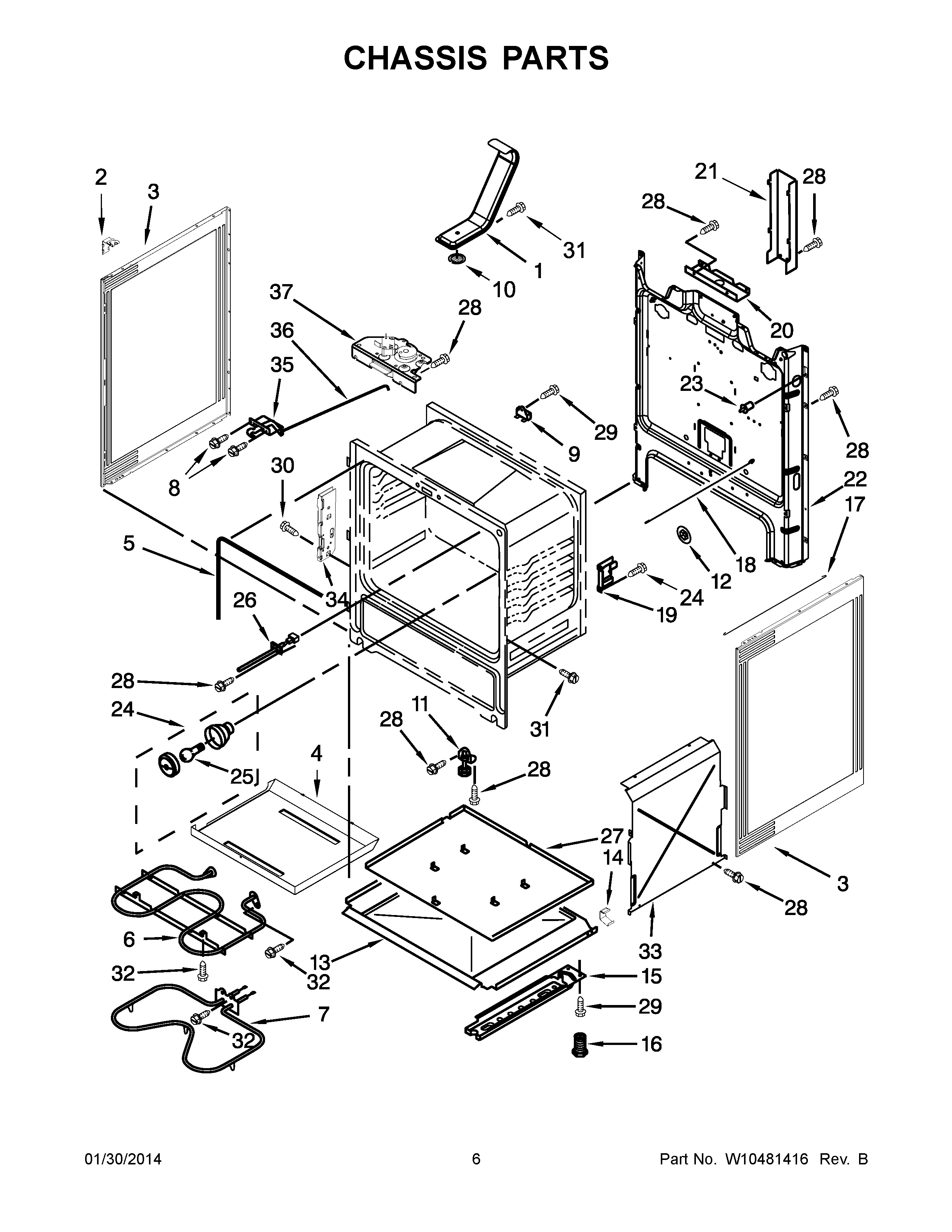

MER7664XB2 04 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	MAY W10208653
NI	INSULATION, FLUE
NI	MAY 9759689
1	TUBE, VENT
2	CLIP, SPRING STEEL
3	MAY W10322769
3	MAY W10322770
4	TRAY, HIDDEN BAKE
5	MAY 8522416
6	ELEMENT, BROIL
7	ELEMENT, BAKE (HIDDEN)
8	SCREW
9	FUSE, THERMAL
10	MAY 9761301
11	ASSEMBLY, FRONT FOOT
12	MAY 3400968
13	TRAY, INSULATION
14	CLIP, PANEL
15	ASSEMBLY, BASE RAIL (RIGHT)
15	ASSEMBLY, BASE RAIL (LEFT)
16	FOOT, LEVELING
17	MAY W10465685
18	ROD, DOOR SWITCH
19	CLIP, OVEN SUPPORT
20	BRACKET, SERVICE
21	COVER, TERMINAL BLOCK
22	BACK, MAIN
23	MAY 9757262
25	BULB, OVEN LIGHT
26	SENSOR, OVEN
27	SHIELD, HEAT
28	SCREW
29	SCREW
30	MAY W10031780
31	SCREW
32	SCREW
33	MAY W10450380
34	RECEIVER, HINGE
35	ASSEMBLY, DOOR LATCH (FRONT)
36	ROD, LATCH
37	ASSEMBLY, DOOR LATCH (REAR)
