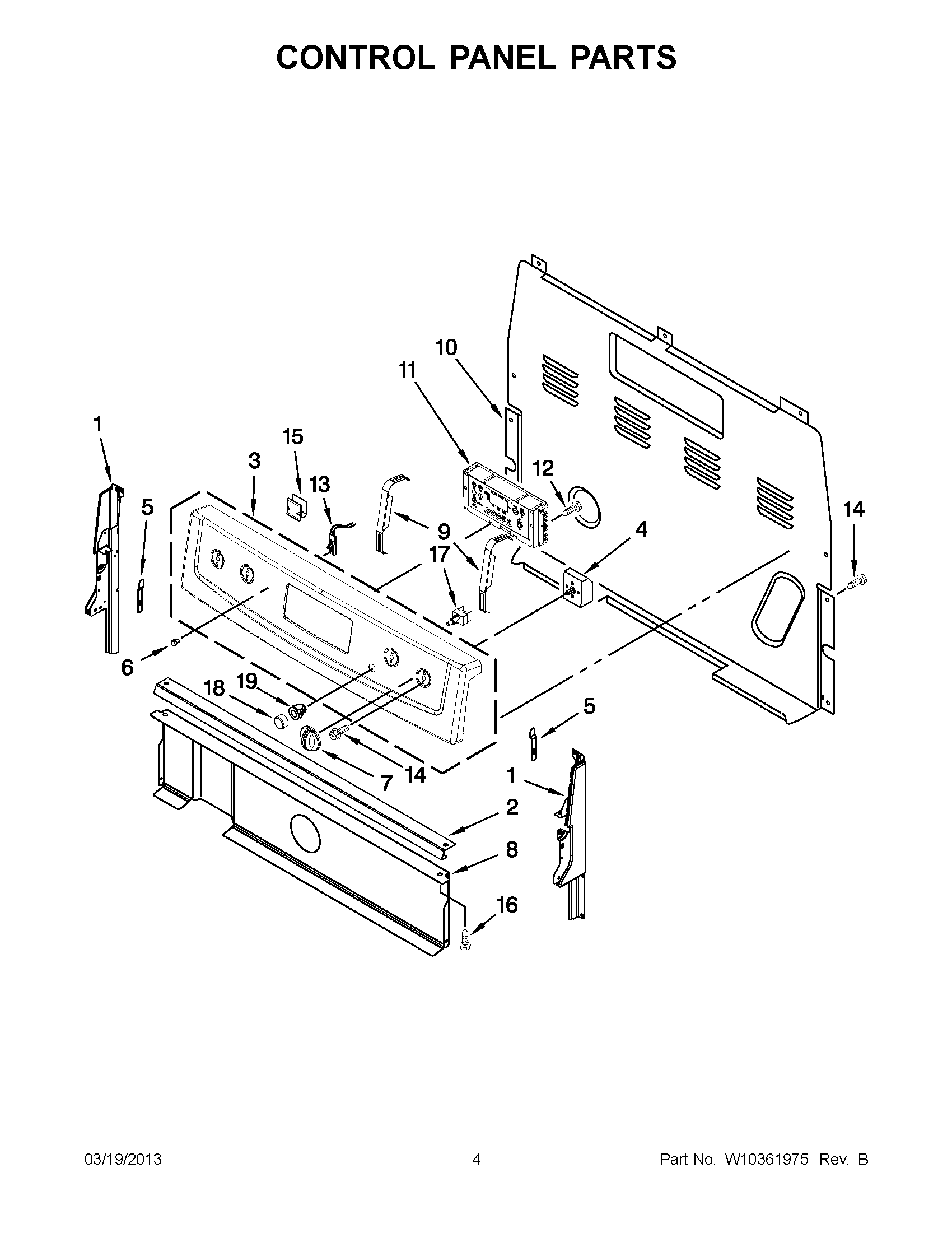

MER7664XS0 02 – CONTROL PANEL PARTSadmin2025-04-26T08:54:46+00:00MER7664XS0 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | ENDCAP (BLACK (LEFT)) |
| 1 | ENDCAP (WHITE (LEFT)) |
| 1 | ENDCAP (BLACK (RIGHT)) |
| 1 | ENDCAP (WHITE (RIGHT)) |
| 2 | BRACKET, CONSOLE MOUNTING |
| 3 | MAY W10315966 |
| 3 | MAY W10315964 |
| 3 | MAY W10315965 |
| 4 | Switch, Infinite (LF,RF) |
| 4 | SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR) |
| 5 | CLIP, SPRING |
| 6 | MAY 3196068 |
| 7 | MAY W10211372 |
| 7 | KNOB, INFINITE (WHITE) |
| 8 | SHIELD, HEAT |
| 9 | BRACKET, MOUNTING, EOC |
| 10 | COVER, UPPER REAR |
| 11 | MAY W10271759 |
| 11 | MAY W10271760 |
| 12 | SCREW |
| 13 | MAY 8523265 |
| 14 | SCREW |
| 15 | MAY 8273564 |
| 16 | Screw (Black) |
| 16 | Screw (White) |
| 17 | SWITCH, WARM CONSOLE MOUNTING |
| 18 | BUTTON, KEEP WARM (BLACK) |
| 18 | MAY 9757492 |
| 19 | BEZEL, KEEP WARM (WHITE) |
| 19 | MAY W10217758 |
