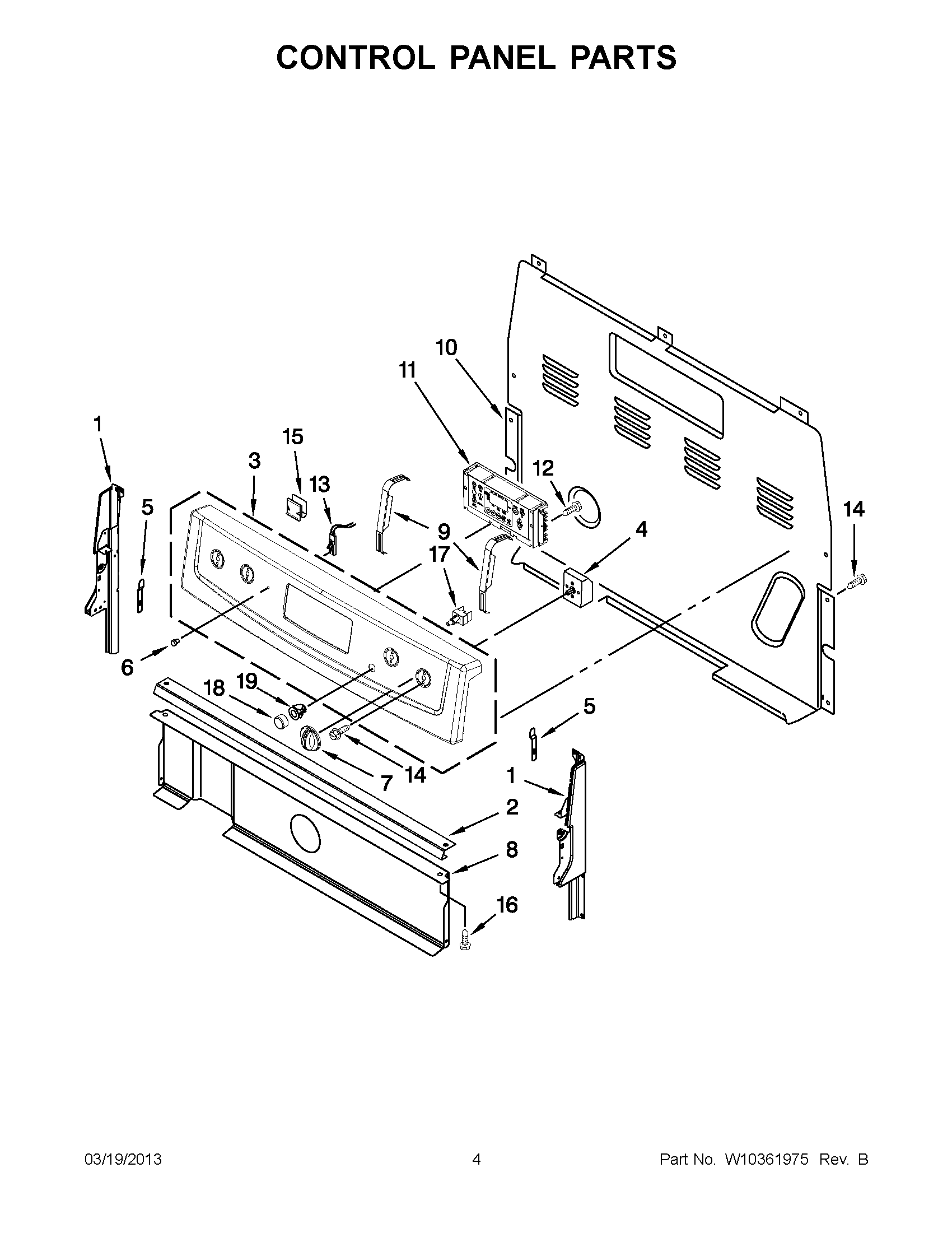

MER7664XW0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (LEFT))
1ENDCAP (BLACK (RIGHT))
1ENDCAP (WHITE (RIGHT))
2BRACKET, CONSOLE MOUNTING
3MAY W10315966
3MAY W10315964
3MAY W10315965
4Switch, Infinite (LF,RF)
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5CLIP, SPRING
6MAY 3196068
7MAY W10211372
7KNOB, INFINITE (WHITE)
8SHIELD, HEAT
9BRACKET, MOUNTING, EOC
10COVER, UPPER REAR
11MAY W10271759
11MAY W10271760
12SCREW
13MAY 8523265
14SCREW
15MAY 8273564
16Screw (Black)
16Screw (White)
17SWITCH, WARM CONSOLE MOUNTING
18BUTTON, KEEP WARM (BLACK)
18MAY 9757492
19BEZEL, KEEP WARM (WHITE)
19MAY W10217758
