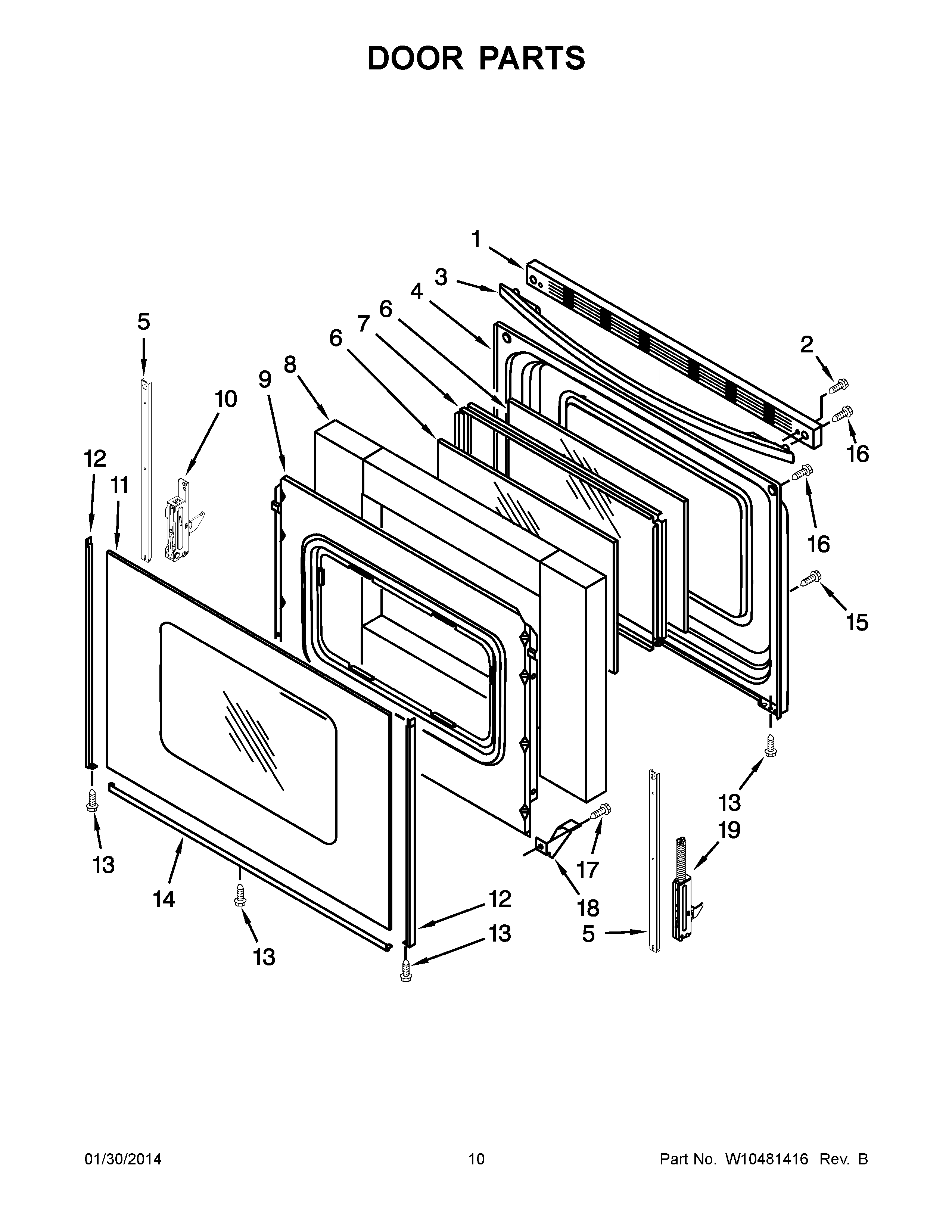

MER7664XW2 06 – DOOR PARTS

MER7664XW2 06 – DOOR PARTS

Written by

in

MER7664XW2 06 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
1	TRIM, TOP (WHITE)
2	SCREW
3	MAY W10323584
3	MAY W10171750
3	MAY W10323581
4	LINER, DOOR
5	STRAP, DOOR
6	GLASS, INNER
7	FRAME, GLASS
8	INSULATION, DOOR STRIP
9	RETAINER, INSULATION
10	HINGE, DOOR (PASSIVE)
11	MAY W10106405
11	GLASS, OUTER (STAINLESS)
11	GLASS, OUTER (WHITE)
12	TRIM, SIDE (BLACK, LEFT HAND)
12	TRIM, SIDE (BLACK, RIGHT HAND)
12	TRIM, SIDE (WHITE (LEFT))
12	TRIM, SIDE (WHITE (RIGHT))
13	MAY 3196160
14	TRIM, LOWER (BLACK)
14	TRIM, LOWER (WHITE)
15	SCREW
16	MAY W10031780
17	SCREW
18	CLIP, PANEL
19	HINGE, ACTIVE (WITH SPRING)
