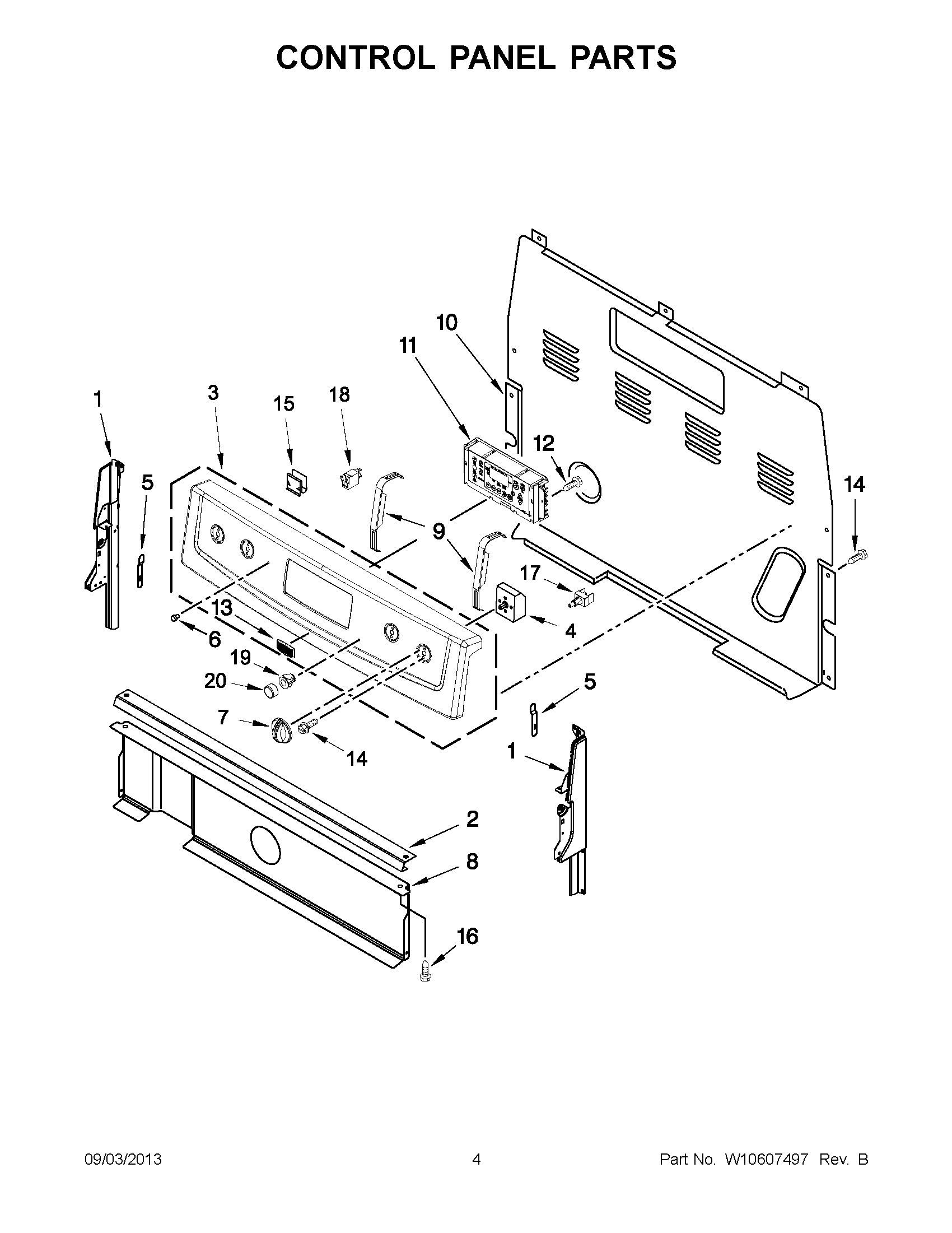

MER7685BB0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK (RIGHT))
1ENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (LEFT))
1ENDCAP (WHITE (RIGHT))
2BRACKET, CONSOLE MOUNTING
3MAY W10315964
3MAY W10315966
3MAY W10315965
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (LEFT-FRONT)
4SWITCH, INFINITE (DUAL) (LEFT FRONT)
5CLIP, SPRING
6MAY 3196068
7MAY W10211372
7KNOB, INFINITE (WHITE)
8SHIELD, HEAT
9BRACKET, MOUNTING, EOC
10COVER, UPPER REAR
11CONTROL, RANGE (LCC95) (WHITE)
11CONTROL, RANGE (LCC95) (BLACK)
12SCREW
13MAY W10199708
14SCREW
15MAY 8273564
16SCREW
17SWITCH, WARM CONSOLE MOUNTING
18MAY 8523265
19MAY W10217758
19BEZEL, KEEP WARM (WHITE)
20MAY 9757492
20BUTTON, KEEP WARM (BLACK)
