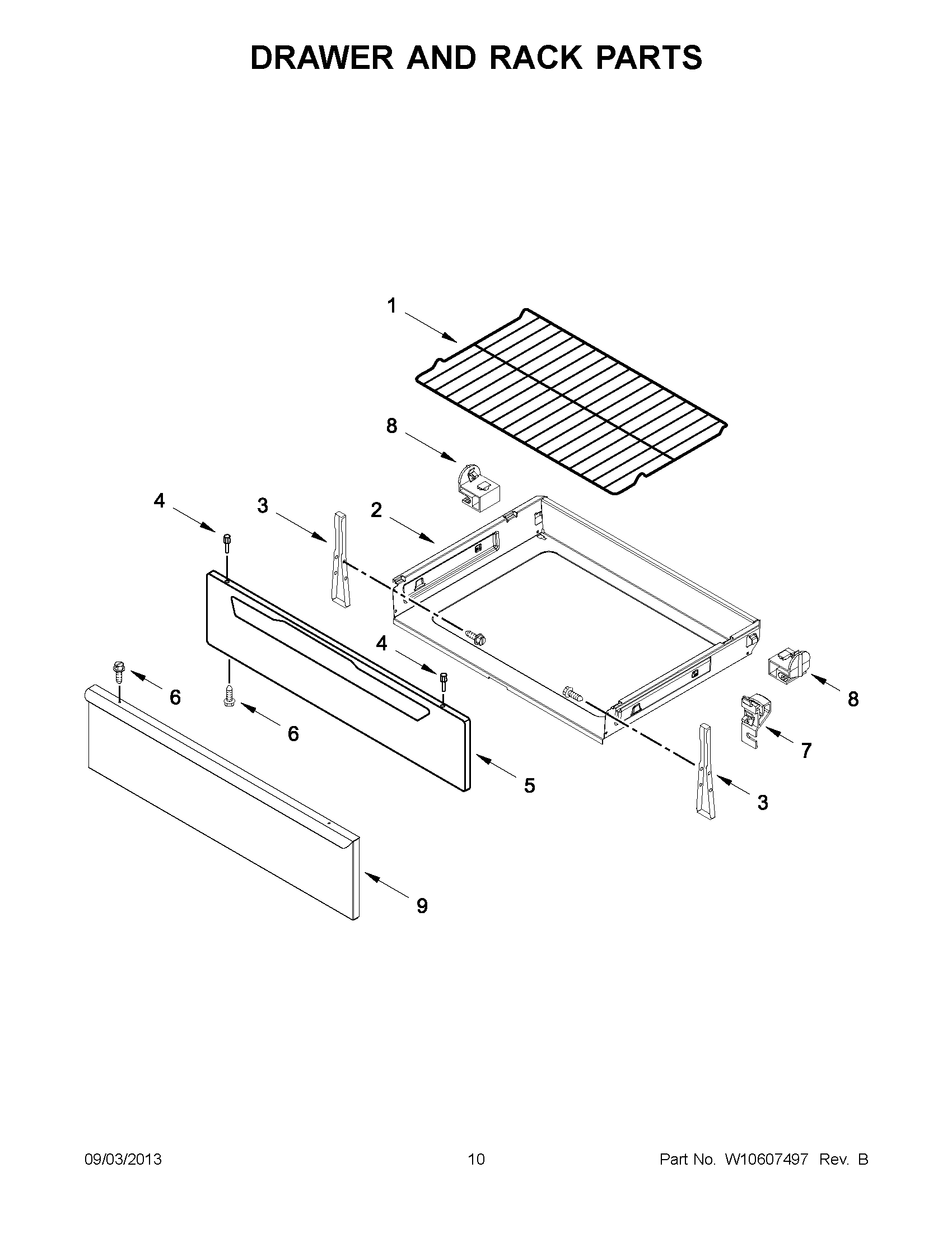

MER7685BB0 06 – DRAWER AND RACK PARTS

MER7685BB0 06 – DRAWER AND RACK PARTS

Written by

in

MER7685BB0 06 – DRAWER AND RACK PARTS

Products

PositionProduct
1RACK, OVEN
2MAY W10300032
3BRACKET, MOUNTING DRAWER
4RIVET, PUSH (WHITE)
4RIVET, PUSH (BLACK)
5PANEL, DRAWER FRONT (WHITE)
5PANEL, DRAWER FRONT (BLACK)
6SCREW
7GLIDE, DRAWER
8GLIDE, REAR DRAWER
9PANEL, DRAWER FRONT (STAINLESS)
