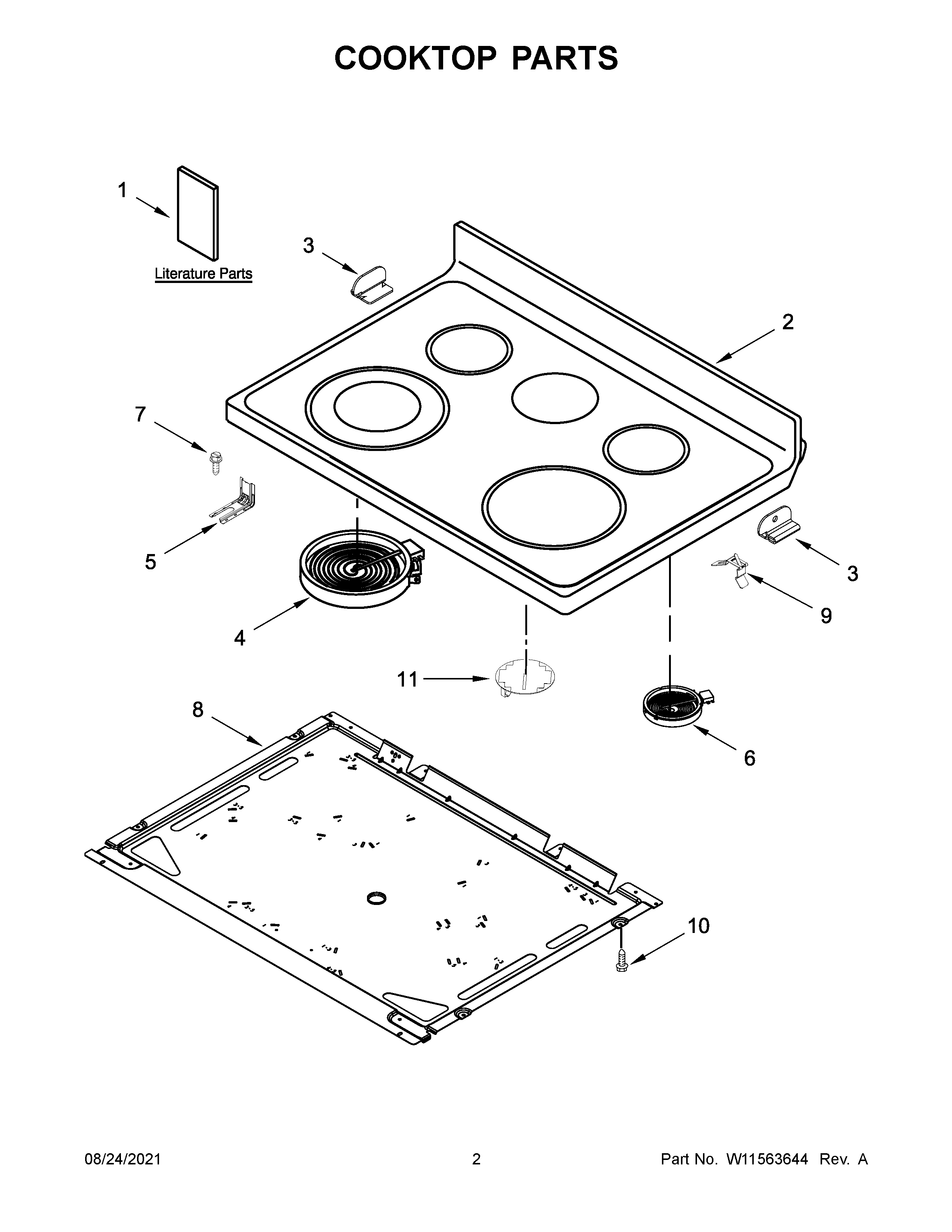

MER7700LZ0 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11172528 Whirlpool Harness Wire
NI	W11134845 Whirlpool Wire Harness
NI	W11134592 Whirlpool Wire Harness
NI	HARNS-WIRE
NI	W11675846 Whirlpool Wire Harness
NI	WPW10281322 Whirlpool Connector
1A	QUICK START GUIDE
1	OWNERS MANUAL
1B	TECH SHEET
2	W11548507 Whirlpool Cooktop Assembly
3	W10607641 Whirlpool Clip
3A	W10607642 Whirlpool Clip
4	W11517959 Whirlpool Electric Range Radiant Surface Element
5	W11447673 Whirlpool Range Tip Anchor
6	ELMNT-SURF
7	SCREW, ANTI-TIP KIT
8	PAN
9	WPW10225448 Whirlpool Spring Assembly
10	WP3196175 Whirlpool Screw
11	W11041453 Whirlpool Surface Element
