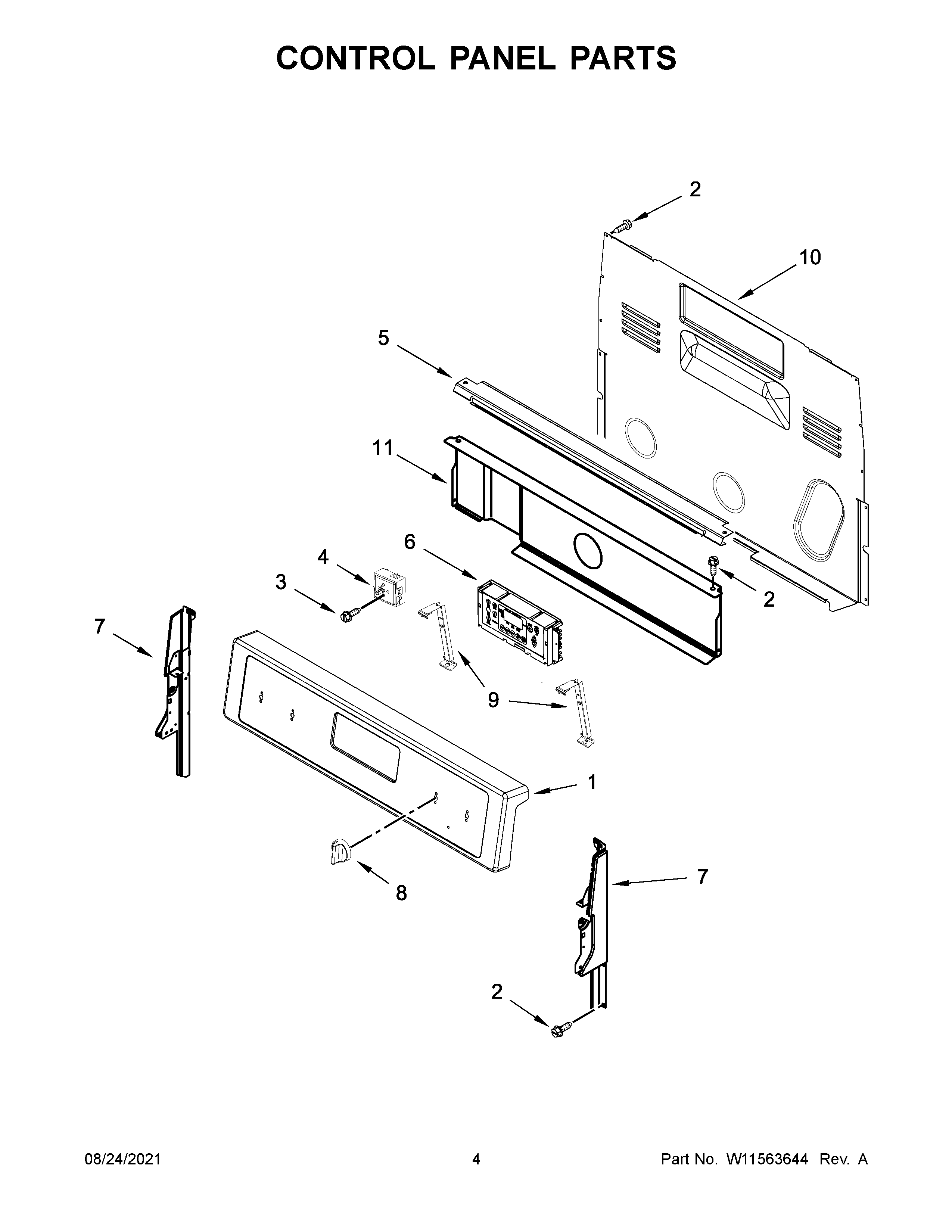

MER7700LZ0 03 – CONTROL PANEL PARTS

MER7700LZ0 03 – CONTROL PANEL PARTS

Written by

in

MER7700LZ0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11548761 Whirlpool Control Panel
2SCREW
3WP3400882 Whirlpool Screw
4AWP3149404 Whirlpool Oven Surface Element Switch
4SWITCH-INF
5W10525121 Whirlpool Control Bracket
6W11548762-includeCORE Whirlpool W11548762 Refrigerator Electronic Control Board + Core
7AW11219665 Whirlpool Panel Endcap
7W11219664 Whirlpool Endcap Panel
8W11092479 Whirlpool Knob
9W11230932 Whirlpool Bracket Mounting
10WP8272473 Whirlpool Rear Cover
11W10134247 Whirlpool Heat Shield
