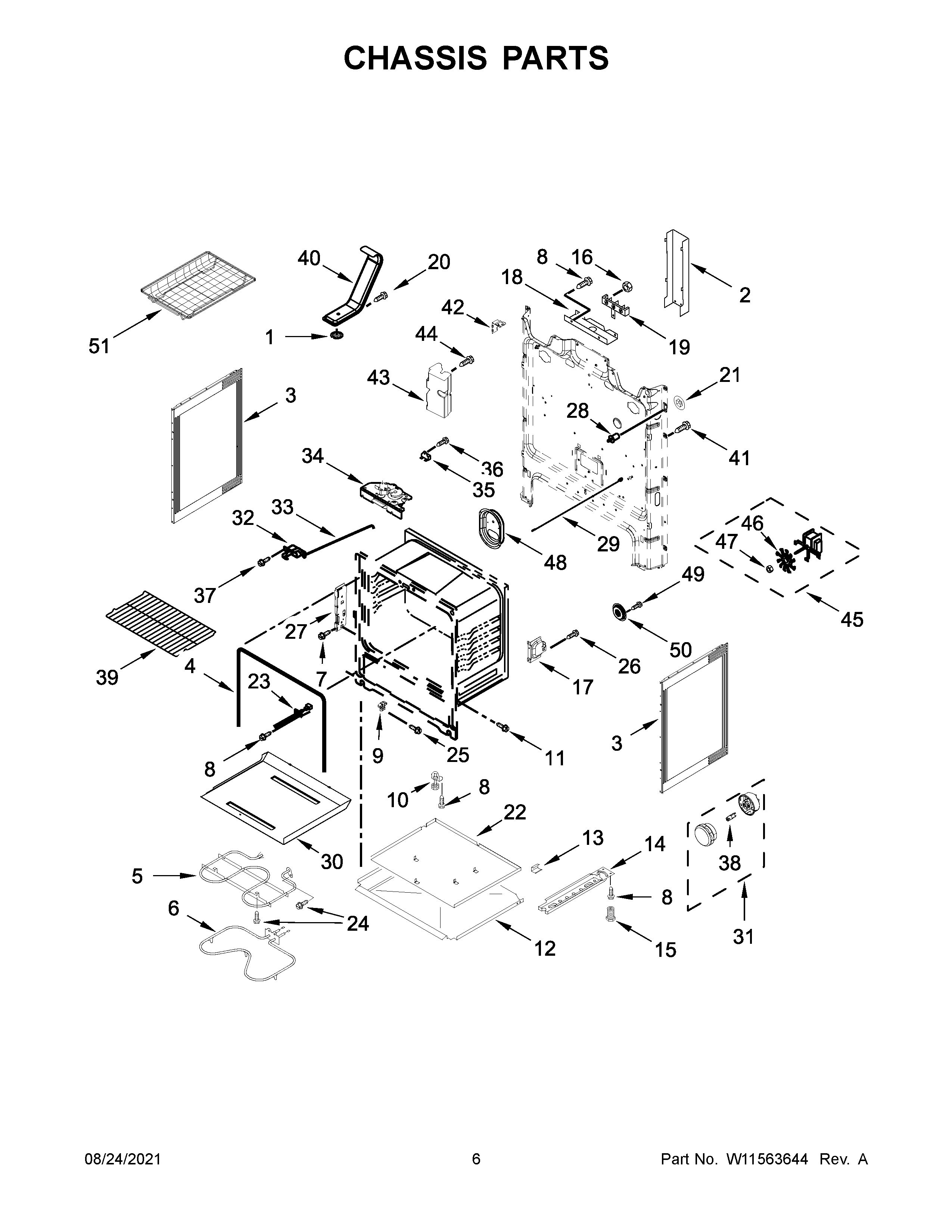

MER7700LZ0 04 – CHASSIS PARTS

Products

Position	Product
NI	W10646923 Whirlpool Insulator
NI	W11684918 Whirlpool Insulation
NI	3400964 Whirlpool Oven Clip
NI	W11684917 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11161831 Whirlpool Insulation
1	SCREEN, VENT
2	WPW10326122 Whirlpool Black Cover
3	W11730303 Whirlpool Side Panel
4	W11542153 Whirlpool Door Gasket
5	W10856603 Whirlpool Broil Element
6	WP9755770 Whirlpool Bake Element
7	W10777162 Whirlpool Screw
8	SCREW
9	W10807823 Whirlpool Drawer Glide
10	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
11	WPW10067840 Whirlpool Screw
12	W10134121 Whirlpool Insulation Tray
13	W10137382 Whirlpool Clip
14	WPW10306546 Whirlpool Base Rail
15	WPW10058460 Whirlpool Appliance Levelling Leg
16	WP3400029 Whirlpool Dishwasher Nut
17	W10404688 Whirlpool Bracket Support
18	W11728255 Whirlpool Service Bracket
19	WPW10245259 Whirlpool Terminal Block
21	WP3400968 Whirlpool Nut
22	W10134125 Whirlpool Retainer Clip
23	WPW10181986 Whirlpool Oven Sensor
24	WP3196154 Whirlpool Screw Assembly
25	Screw
26	WP3196557 Whirlpool Screw
27	W10647259 Whirlpool Hinge Receiver
28	WP9757262 Whirlpool Light Switch
29	W11370462 Whirlpool Door Rod
30	W10183712 Whirlpool Bake Tray
31	W11594170 Whirlpool Light Socket
32	WP9761013 Whirlpool Door Latch
33	Rod, Latch
34	WPW10107820 Whirlpool Door Latch
35	WP3196548 Whirlpool Thermal Fuse
36	3196172 Whirlpool Oven Screw
37	W11169708 Whirlpool Screw
38	BULB-LIGHT
39	RACK-OVEN
40	WPW10134285 Whirlpool Vent Tube
41	WP3400016 Whirlpool Screw Assembly
42	W10183541 Whirlpool Clip Assembly
43	W11135752 Whirlpool Anchor Tip
44	W11135756 Whirlpool Screw Torx
45	W11582241 Whirlpool Convection Fan
46	W10758272 Whirlpool Convection Fan
47	NUT
48	W10134126 Whirlpool Cover
49	WP4449809 Whirlpool Screw
50	WPW10134124 Whirlpool Fan Cover
51	W11692811 Whirlpool Fryer Basket
