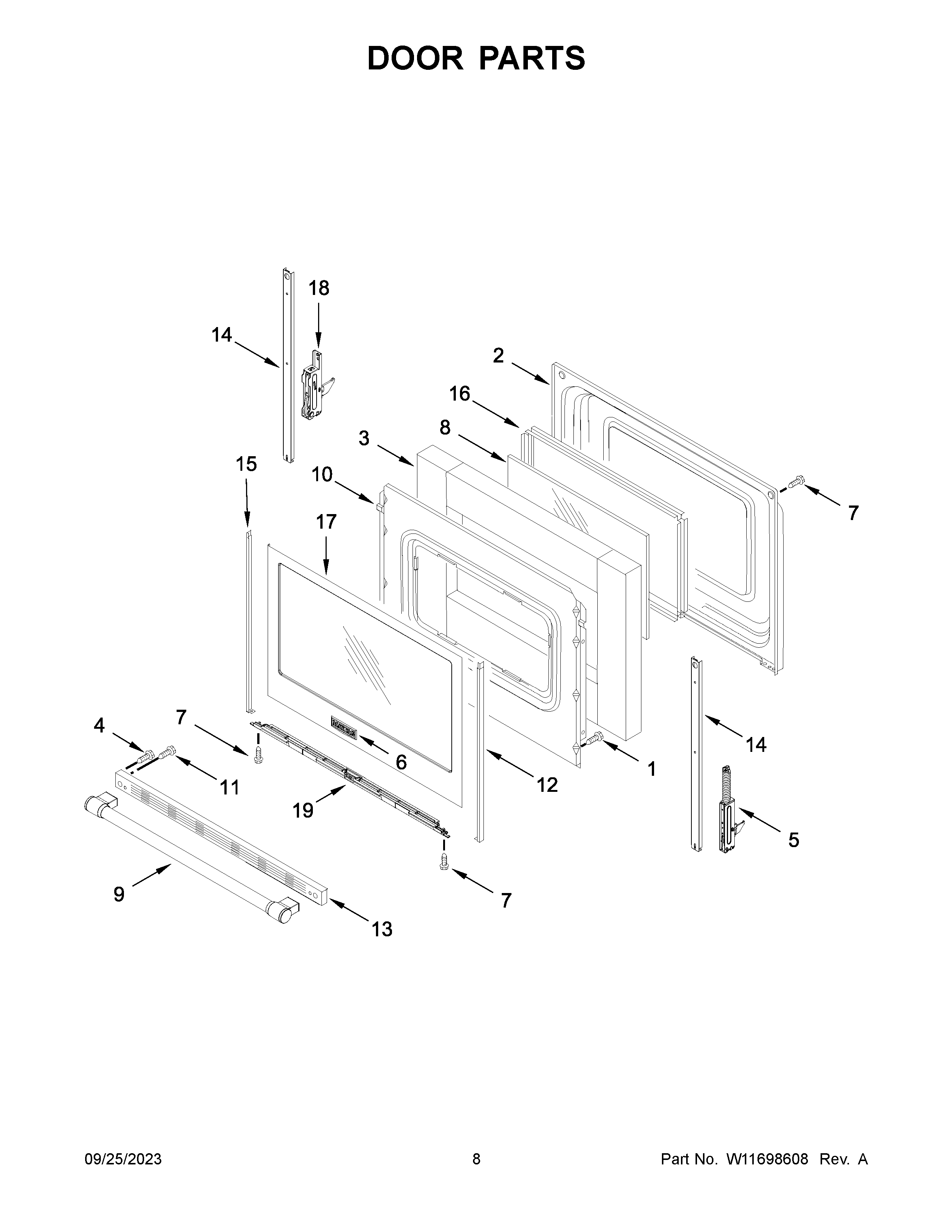

MER7700LZ3 05 – DOOR PARTS

MER7700LZ3 05 – DOOR PARTS

Written by

in

MER7700LZ3 05 – DOOR PARTS

Products

PositionProduct
1WPW10031790 Whirlpool Screw
2WP9761344 Whirlpool Door Liner
3WPW10278991 Whirlpool Insulation
4WPW10200660 Whirlpool Range Oven Door Handle Screw
5WPW10299224 Whirlpool Range Door Hinge Assembly with Spring
6WPW10612925 Whirlpool Microwave Nameplate
7WP355214 Whirlpool Screw
8WP8053948 Whirlpool Door Glass
9W10912640 Whirlpool Door Handle
10W11539580 Whirlpool Retainer
11W10831019 Whirlpool Stove Door Screw
12W10761014 Whirlpool Right Door Trim
13AW11702167 Whirlpool Door Glass
13W11096161 Whirlpool Vent Trim
14W11502236 Whirlpool Door Trim
15W10761018 Whirlpool Dishwasher Left Door Trim
16WPW10316950 Whirlpool Window Frame
17W11250167 Whirlpool Door Glass Assembly
18WPW10299227 Whirlpool Range Door Hinge
19W11440159 Whirlpool Mounting Bracket
