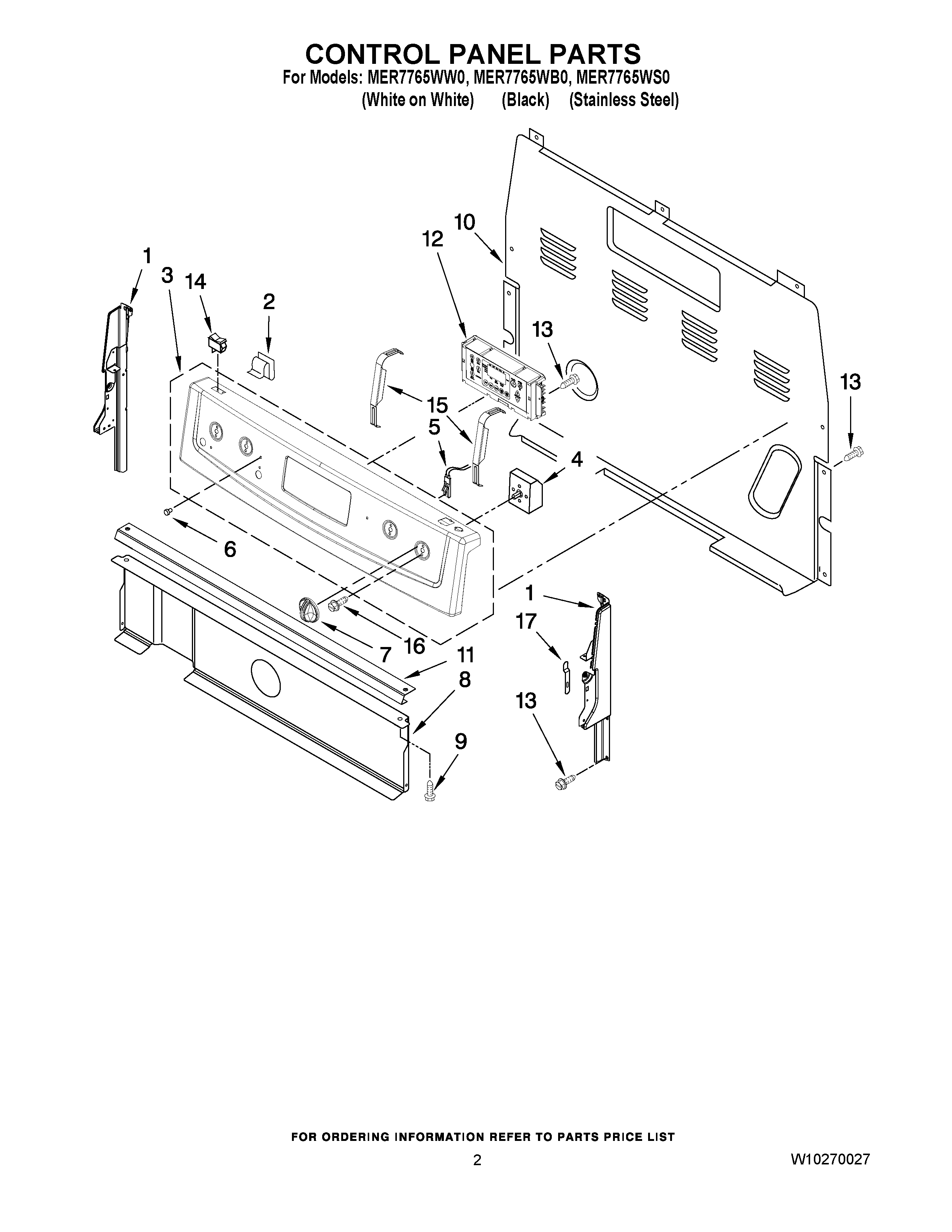

MER7765WB0 02 – CONTROL PANEL PARTS

MER7765WB0 02 – CONTROL PANEL PARTS

Written by

in

MER7765WB0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (WHITE (RIGHT))
1ENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (LEFT))
1ENDCAP (BLACK (RIGHT))
2MAY 8273564
3MAY W10225544
3MAY W10225543
3MAY W10225545
4Switch, Infinite (LF,RF)
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5MAY 8523265
6MAY 3196068
7MAY W10211372
7KNOB, INFINITE (WHITE)
8SHIELD, HEAT
9Screw (White)
9Screw (Black)
10COVER, UPPER REAR
11Bracket, Console
12MAY W10236246
12MAY W10236245
13SCREW
14SWITCH, ROCKER (BLACK)
14SWITCH, ROCKER (WHITE)
15BRACKET, MOUNTING, EOC
16SCREW
17CLIP, SPRING
