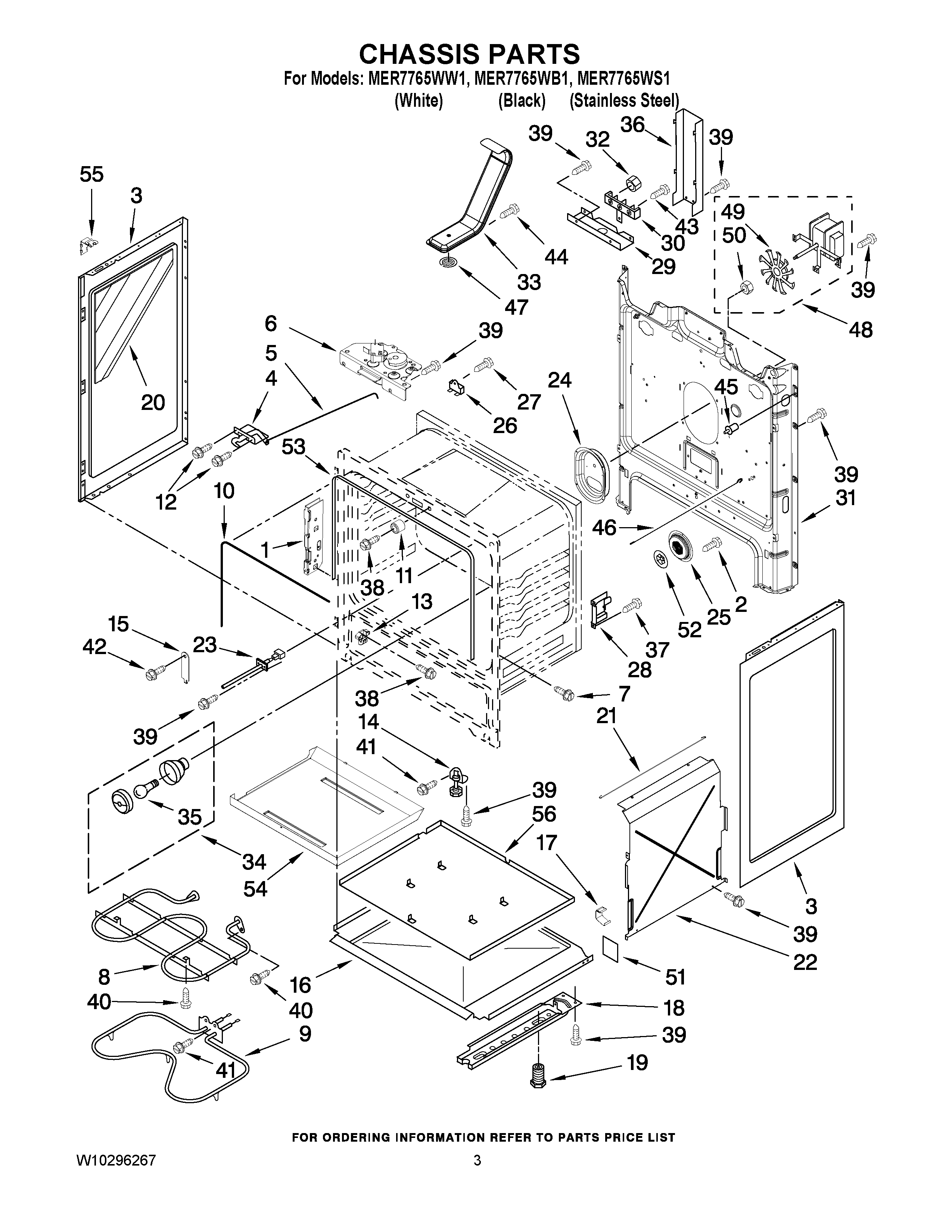

MER7765WS1 03 – CHASSIS PARTSadmin2025-04-26T08:54:45+00:00MER7765WS1 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | MAY W10208653 |
| NI | MAY W10219986 |
| NI | MAY 8272613 |
| 1 | BRKT - MOUNTING |
| 2 | MAY 4449809 |
| 3 | Panel, Side (2) (White) |
| 3 | MAY 8053832 |
| 4 | ASSEMBLY, DOOR LATCH (FRONT) |
| 5 | ROD, LATCH |
| 6 | Latch Asy, Rear |
| 7 | SCREW |
| 8 | ELEMENT, BROIL |
| 9 | ELEMENT, BAKE |
| 10 | MAY 8522416 |
| 11 | SPACER, DOOR |
| 12 | SCREW |
| 13 | Glide, Drawer |
| 14 | MAY 3196037 |
| 15 | Clip,Door Mntg(2) |
| 16 | TRAY, INSULATION |
| 17 | CLIP, PANEL |
| 18 | RAIL, BASE |
| 19 | FOOT, LEVELING |
| 20 | MAY W10182346 |
| 21 | ROD, INSULATION RETAINER |
| 22 | RETAINER, INSULATION |
| 23 | SENSOR, OVEN |
| 24 | MAY W10134126 |
| 25 | MAY W10134124 |
| 26 | FUSE, THERMAL |
| 27 | SCREW |
| 28 | MAY 3186116 |
| 29 | BRACKET, SERVICE |
| 30 | BLOCK, TERMINAL |
| 31 | MAY 9757029 |
| 32 | WP7103P027-60 Whirlpool Nut |
| 33 | TUBE, VENT |
| 34 | MAY 3196701 |
| 35 | BULB, OVEN LIGHT |
| 36 | MAY 9758283 |
| 37 | SCREW |
| 38 | Screw (Black) |
| 39 | SCREW |
| 40 | SCREW |
| 41 | Screw |
| 42 | MAY W10031780 |
| 43 | SCREW |
| 44 | MAY 3196566 |
| 45 | Switch, Door |
| 46 | ROD, DOOR SWITCH |
| 47 | MAY 9761301 |
| 48 | Fan, Motor Cnvctn |
| 49 | MAY W10116351 |
| 50 | MAY W10213748 |
| 51 | MAY 9759689 |
| 52 | MAY 3400968 |
| 53 | TRAY, HIDDEN BAKE |
| 54 | OVEN SEAL, FLANGE |
| 55 | CLIP, SPRING STEEL |
| 56 | SHIELD, HEAT |
