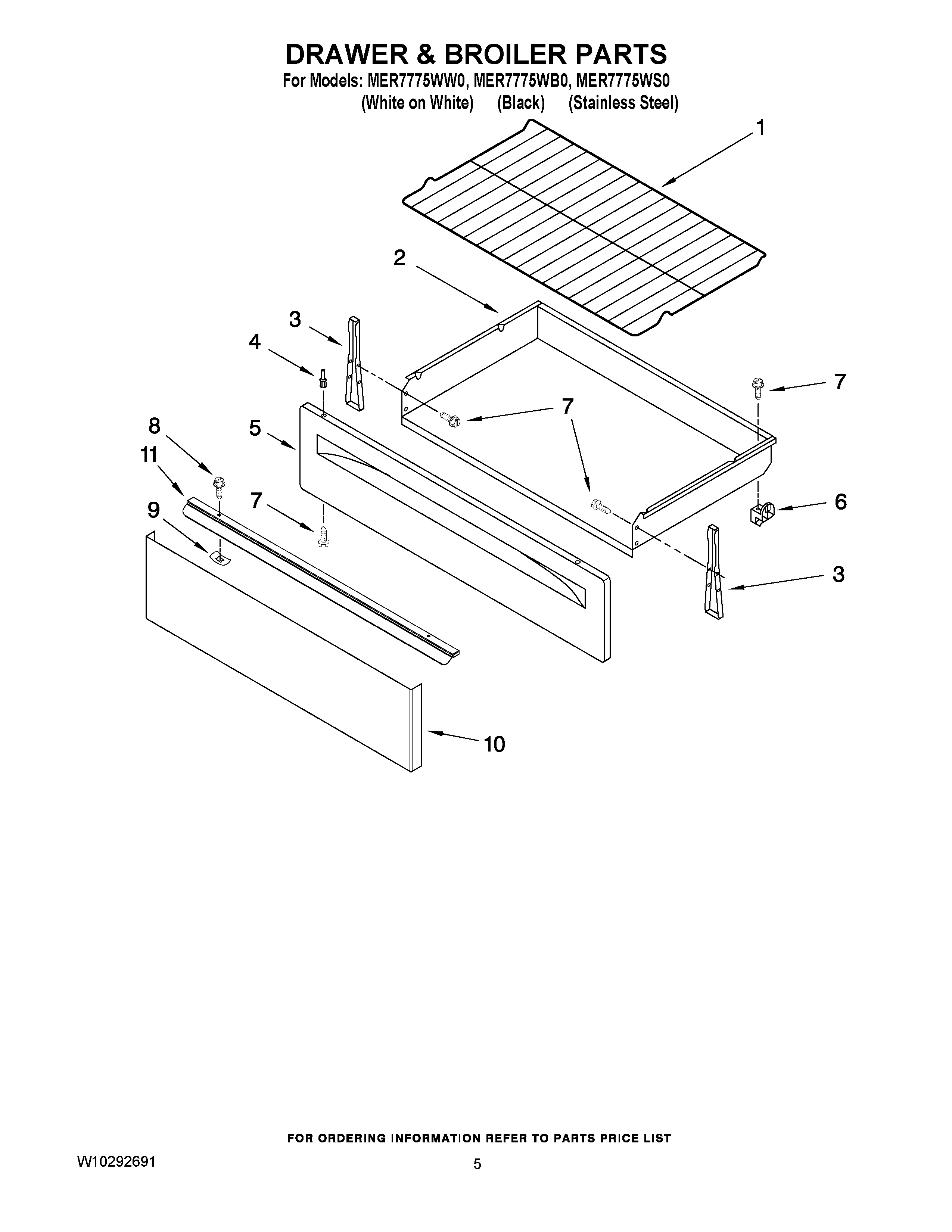

MER7775WB0 04 – DRAWER & BROILER PARTS

MER7775WB0 04 – DRAWER & BROILER PARTS

Written by

in

MER7775WB0 04 – DRAWER & BROILER PARTS

Products

Position	Product
1	RACK, OVEN
2	MAY 9761031
3	WHITE
4	RIVET, PUSH (WHITE)
4	RIVET, PUSH (BLACK)
5	PANEL, DRAWER FRONT (WHITE)
5	PANEL, DRAWER FRONT (BLACK)
6	GLIDE, DRAWER
7	Screw (Black)
8	SCREW
9	CLIP(STLS.MODEL)
10	Panel(Stls. Model)
11	Handle(Stls.Model)
