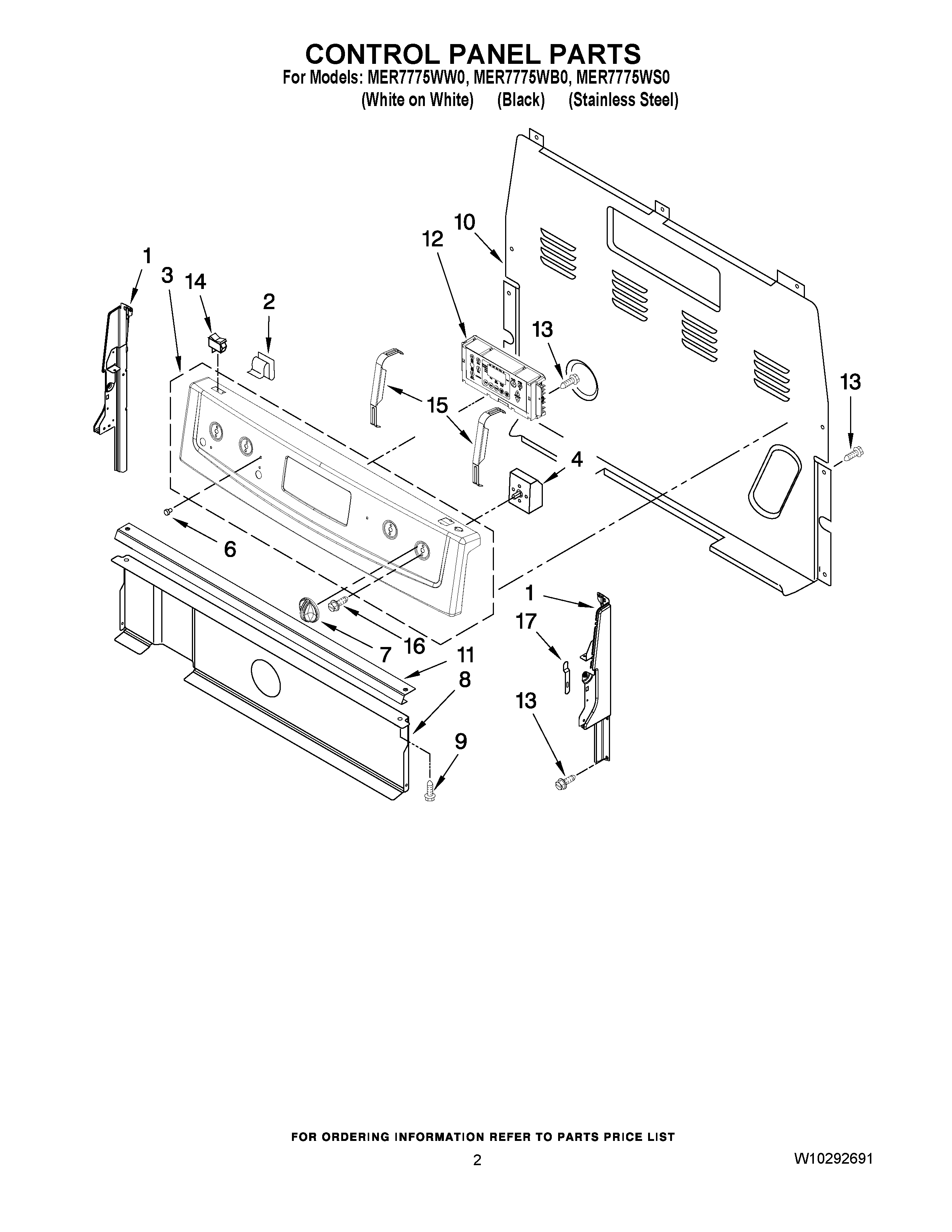

MER7775WW0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (WHITE (RIGHT))
1ENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (LEFT))
1ENDCAP (BLACK (RIGHT))
2MAY 8273564
3MAY W10287999
3MAY W10287997
3MAY W10288000
4Switch, Infinite (LF,RF)
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
6MAY 3196068
7KNOB, INFINITE (WHITE)
7MAY W10211372
8SHIELD, HEAT
9Screw (White)
9Screw (Black)
10COVER, UPPER REAR
11Bracket, Console
12MAY W10236270
12MAY W10236269
13SCREW
14SWITCH, ROCKER (WHITE)
14SWITCH, ROCKER (BLACK)
15BRACKET, MOUNTING, EOC
16SCREW
17CLIP, SPRING
