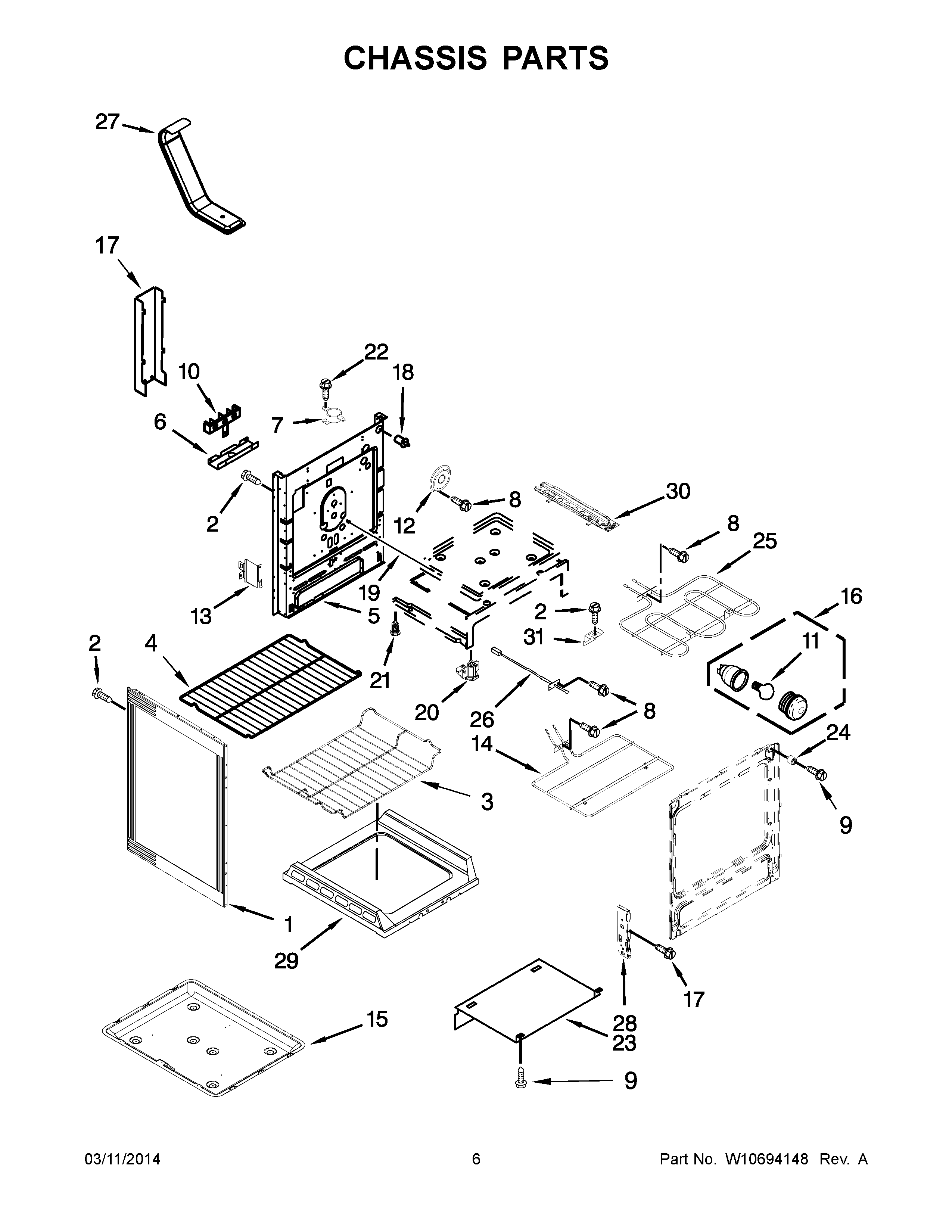

MER8600DH0 04 – CHASSIS PARTSadmin2025-04-26T08:54:45+00:00MER8600DH0 04 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | MAY W10225524 |
| NI | INSULATION, BOTTOM |
| NI | MAY W10194393 |
| NI | STRAP, INSULATION |
| 1 | MAY W10322770 |
| 1 | MAY W10322769 |
| 2 | SCREW |
| 3 | ACCESSORIES, RACK, OVEN (GULL-WING) |
| 4 | MAY W10531060 |
| 5 | BACK, MAIN |
| 6 | BRACKET, SERVICE |
| 7 | FUSE, THERMAL |
| 8 | MAY W10362924 |
| 9 | SCREW |
| 10 | BLOCK, TERMINAL |
| 11 | BULB, OVEN LIGHT |
| 12 | PLATE, CONVECTION |
| 13 | BRACKET, SUPPORT |
| 14 | ELEMENT, BAKE 3600W |
| 15 | MAY W10346147 |
| 16 | MAY W10565174 |
| 17 | COVER, TERMINAL BLOCK |
| 18 | SWITCH, DOOR |
| 19 | ROD, REAR DOOR |
| 20 | ASSEMBLY, FRONT FOOT |
| 21 | FOOT, LEVELING |
| 22 | SCREW |
| 23 | SHIELD, HEAT |
| 24 | SPACER, DOOR |
| 25 | ELEMENT, BROIL |
| 26 | SENSOR, OVEN |
| 27 | TUBE, VENT |
| 28 | RECEIVER, HINGE |
| 29 | MAY W10289079 |
| 30 | ASSEMBLY, BASE RAIL (LEFT) |
| 30 | ASSEMBLY, BASE RAIL (RIGHT) |
| 31 | MAY W10035900 |
