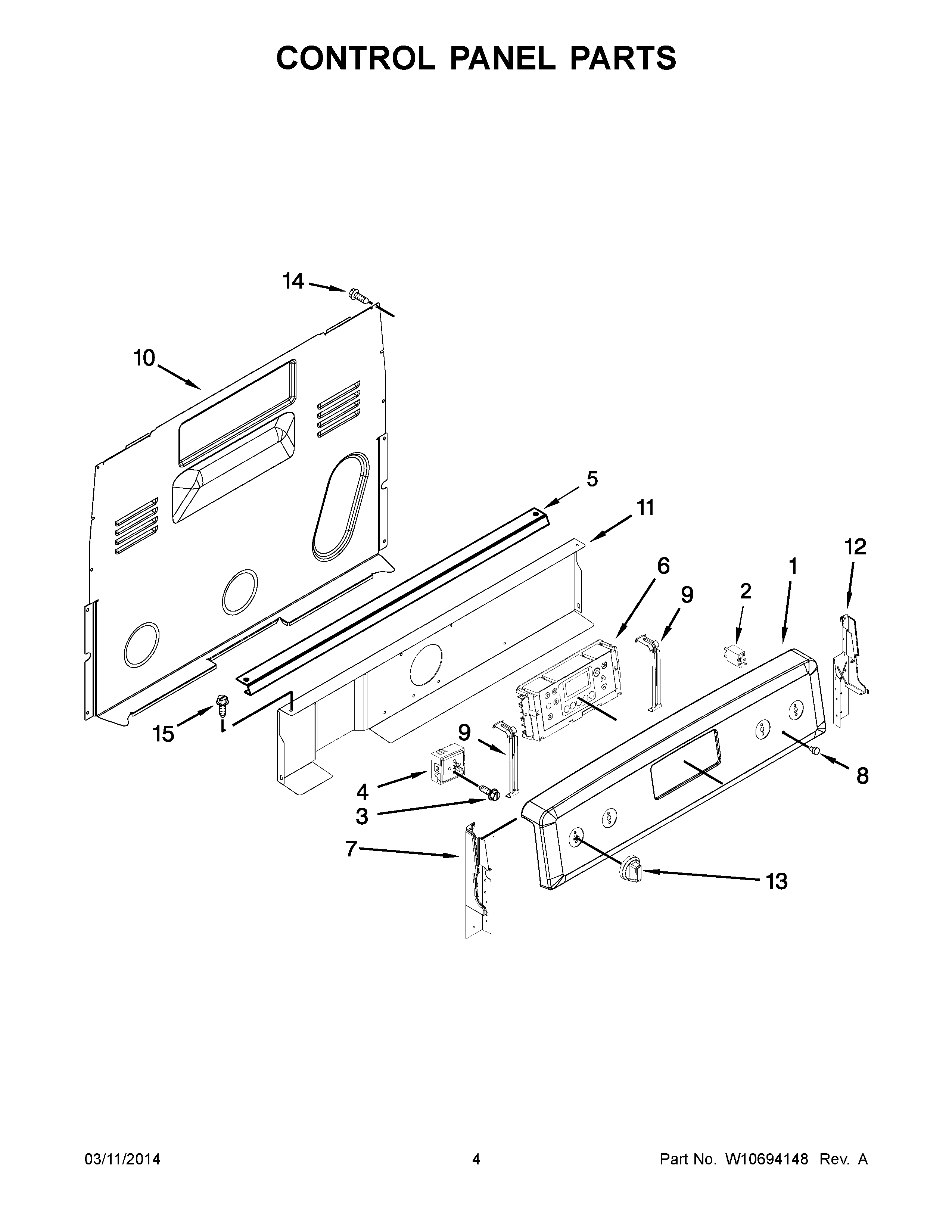

MER8600DS0 03 – CONTROL PANEL PARTS

MER8600DS0 03 – CONTROL PANEL PARTS

Written by

in

MER8600DS0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10655835
1MAY W10655833
1CONSOLE (STAINLESS)
2MAY 8523265
3SCREW
4SWITCH, INFINITE (RIGHT FRONT)
4SWITCH, INFINITE (DUAL) (LEFT FRONT)
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5BRACKET, CONSOLE MOUNTING
6MAY W10655837
6MAY W10655832
6MAY W10655829
7ENDCAP (BLACK (LEFT))
7ENDCAP (WHITE (LEFT))
8MAY 3196068
9MAY W10324410
10COVER, UPPER REAR
11SHIELD, HEAT
12ENDCAP (BLACK (RIGHT))
12ENDCAP (WHITE (RIGHT))
13MAY W10666901
14SCREW
15MAY W10362924
