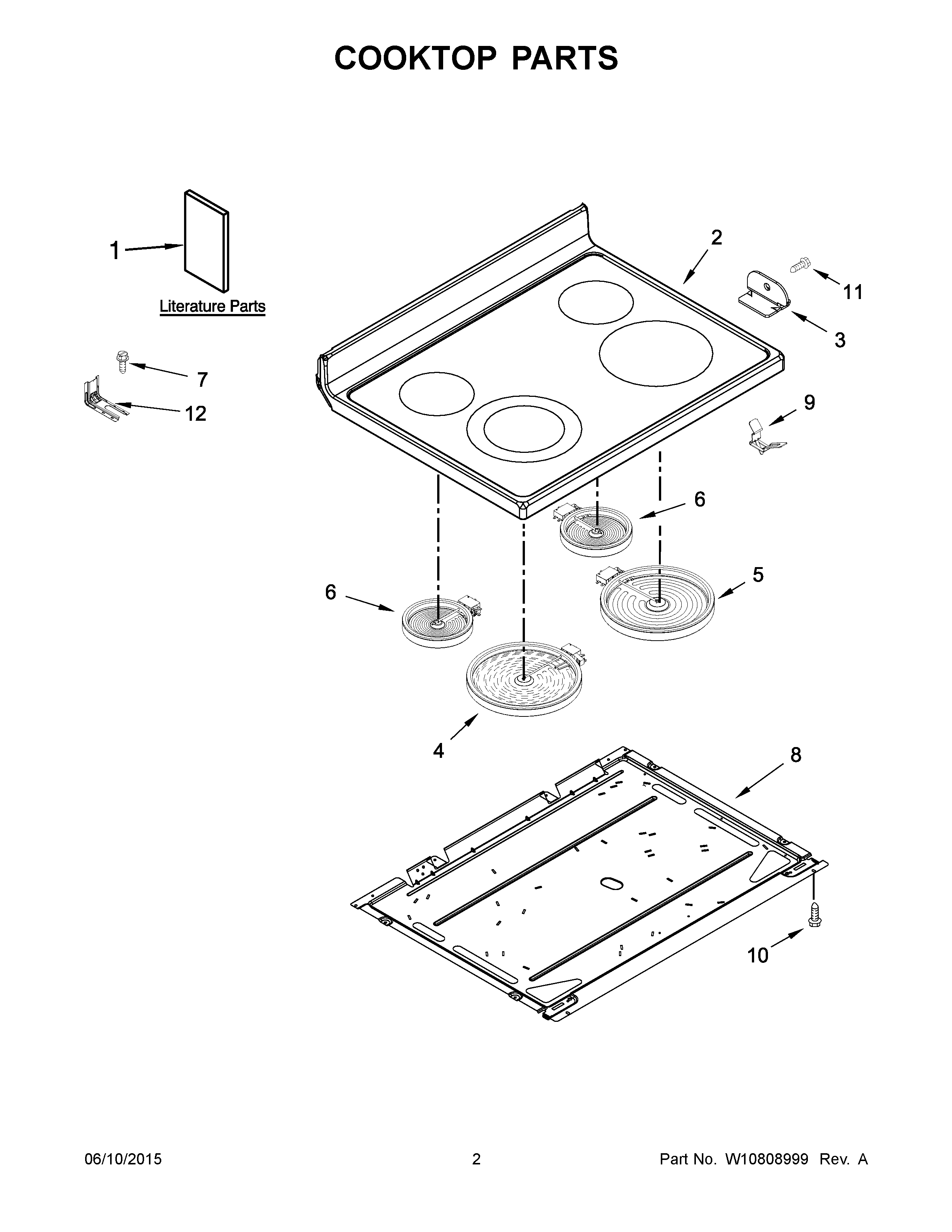

MER8650ES0 02 – COOKTOP PARTS

Products

Position	Product
NI	KIT, BARE WIRE ADAPTER BLOCK
NI	HARNESS, SENSOR
NI	MAY W10349708
NI	HARNESS, MAIN
NI	MAY W10349654
NI	MAY W10362924
1	MAY W10667165
1D	TIPS, SAFE COOKING (ENGLISH)
1B	TECH SHEET, ENGLISH
1A	MAY W10403811
1C	MAY W10400064
2	MAY W10655896
3	BRACKET, COOKTOP (LEFT)
3A	BRACKET, COOKTOP (RIGHT)
4	ELEMENT (3000/1400W) (LEFT FRONT)
5	ELEMENT (3200W) (RIGHT FRONT)
6	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7	SCREW, ANTI-TIP KIT
8	PAN, RADIANT ELEMENT
9	SPRING, ELEMENT
10	SCREW
11	SCREW
12	BRACKET, ANTI-TIP
