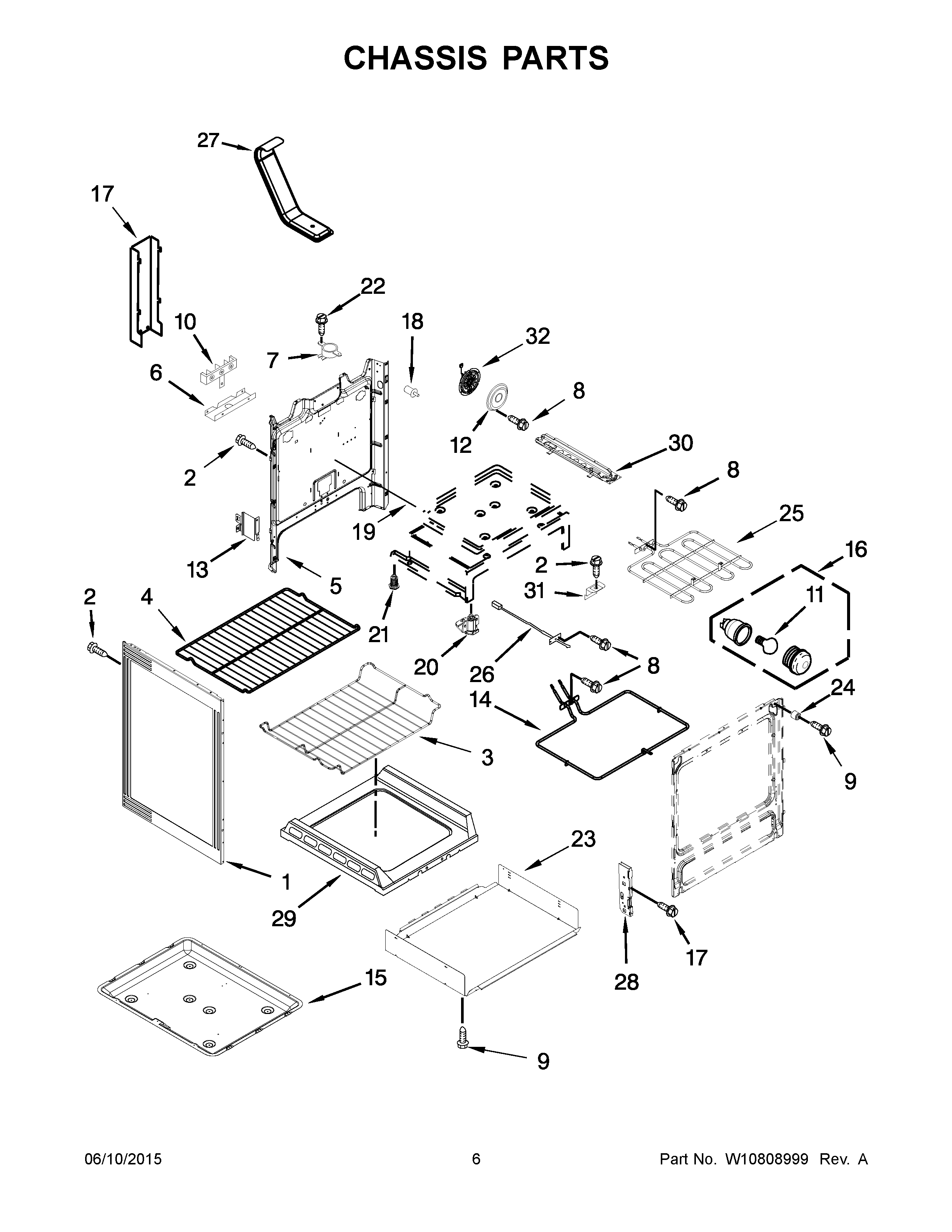

MER8650ES0 04 – CHASSIS PARTS

Products

Position	Product
NI	MAY W10194393
NI	STRAP, INSULATION
NI	MAY W10225524
NI	INSULATION, BOTTOM
1	PANEL, SIDE (BLACK)
2	SCREW
3	ACCESSORIES, RACK, OVEN (GULL-WING)
4	MAY W10531060
5	MAIN BACK
6	BRACKET, SERVICE
7	FUSE, THERMAL
8	MAY W10362924
9	SCREW
10	BLOCK, TERMINAL
11	BULB, OVEN LIGHT
12	MAY W10346154
13	BRACKET, SUPPORT
14	ELEMENT, BAKE
15	MAY W10346147
16	ASSEMBLY, LIGHT
17	COVER, TERMINAL BLOCK
18	SWITCH, DOOR
19	ROD, REAR DOOR
20	ASSEMBLY, FRONT FOOT
21	FOOT, LEVELING
22	SCREW
23	SHIELD, HEAT
24	SPACER, DOOR
25	ELEMENT, BROIL
26	MAY W10586204
27	TUBE, VENT
28	RECEIVER, HINGE
29	BOTTOM, OVEN
30	ASSEMBLY, BASE RAIL (LEFT)
30A	ASSEMBLY, BASE RAIL (RIGHT)
31	MAY W10035900
32	MAY W10617485
