MER8650ES0 05 – DOOR PARTS – Aparts

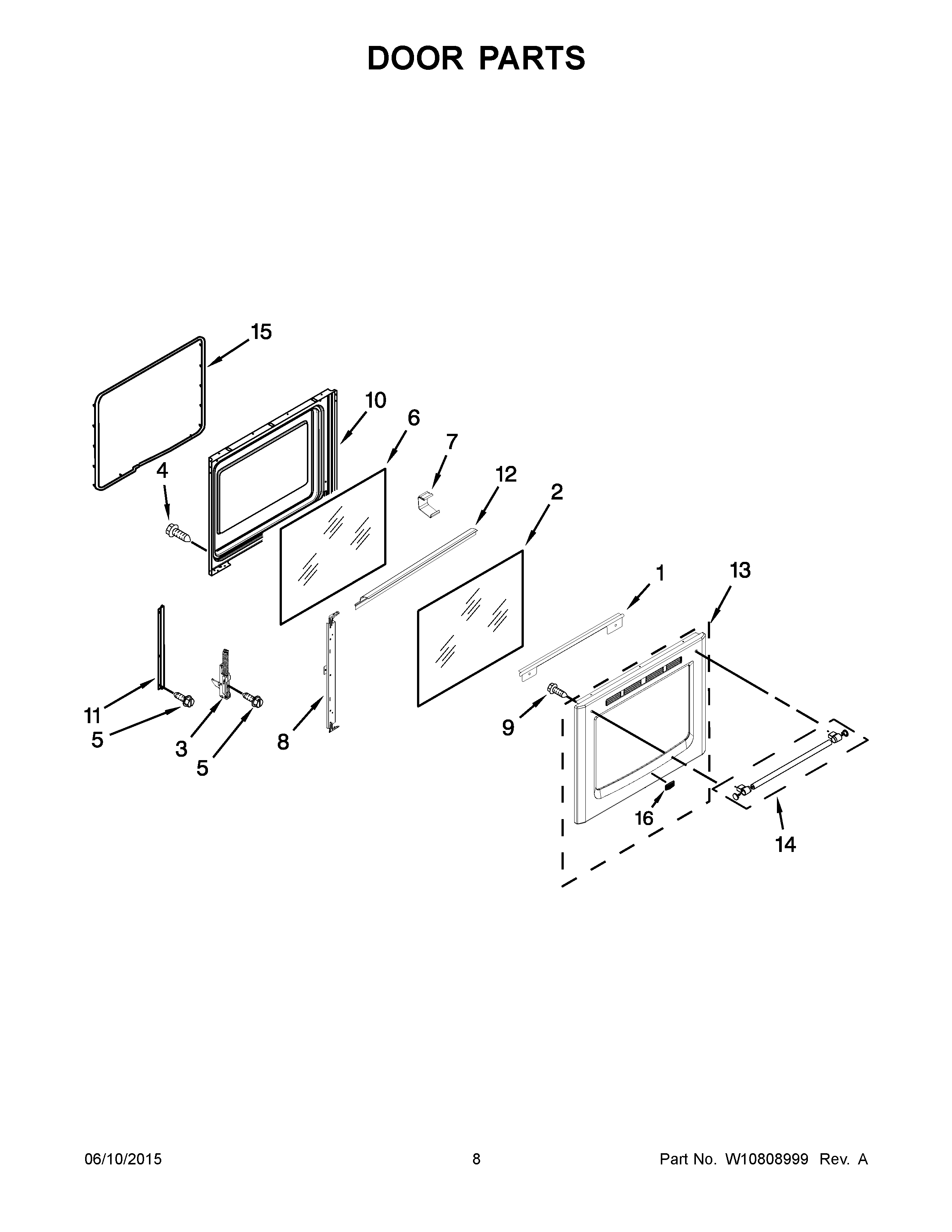

MER8650ES0 05 – DOOR PARTS

Products

Position	Product
1	TRIM, VENT (BLACK)
2	MAY W10615599
3	HINGE, DOOR (ACTIVE)
4	SCREW
5	MAY W10362924
6	GLASS, INNER
7	CLIP, PANEL
8	MAY W10294851
9	SCREW
10	LINING, DOOR
11	MAY W10294852
12	MAY W10294853
13	MAY W10655838
14	MAY W10665831
15	MAY W10162385
16	MAY W10636267
