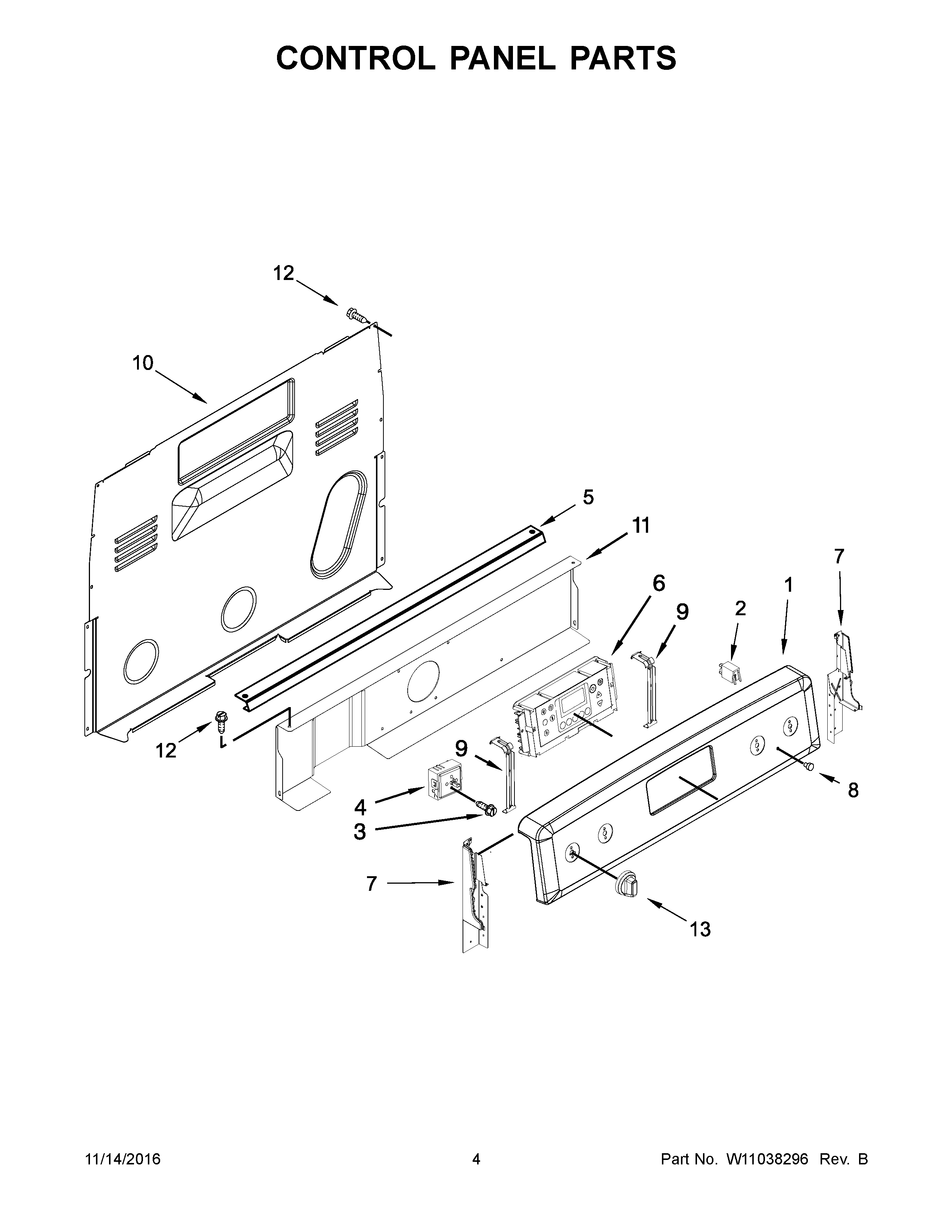

MER8650FZ0 03 – CONTROL PANEL PARTS

Products

Position	Product
1	CONSOLE (STAINLESS)
2	MAY 8523265
3	SCREW
4B	SWITCH, INFINITE (RIGHT FRONT)
4	SWITCH, INFINITE (DUAL) (LEFT FRONT)
4A	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5	BRACKET, CONSOLE MOUNTING
6	BOARD, CONTROL (STAINLESS)
7	ENDCAP (BLACK (LEFT))
7A	ENDCAP (BLACK (RIGHT))
8	MAY 3196068
9	BRACKET, CONTROL
10	COVER, UPPER REAR
11	SHIELD, HEAT
12	SCREW
13	KNOB (STAINLESS)
