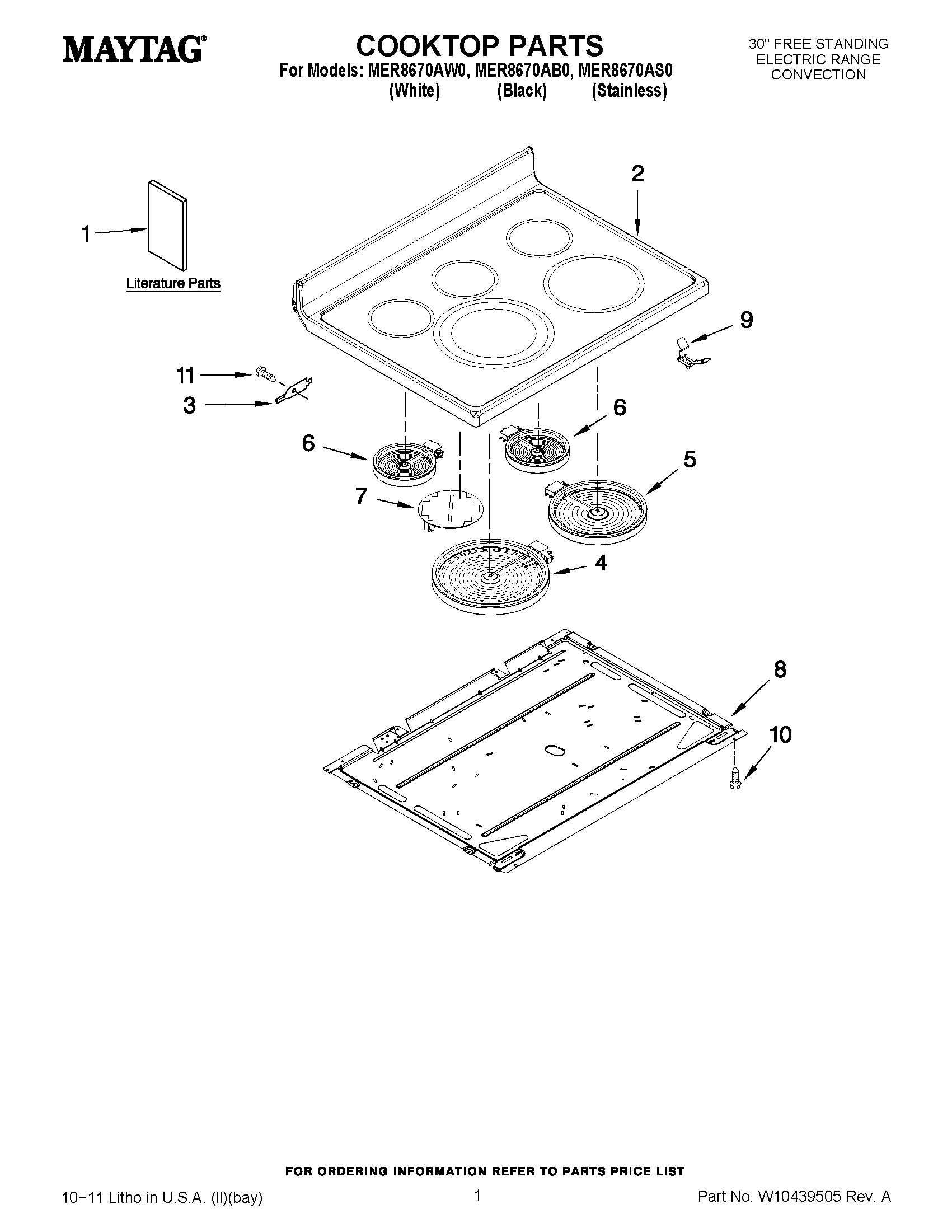

MER8670AB0 01 – COOKTOP PARTS

Products

Position	Product
1	TIPS, SAFE COOKING (ENGLISH)
1	WIRING DIAGRAM
1	MAY W10400067
1	MAY W10400066
1	MAY W10403811
1	MAY W10454293
2	MAY W10380669
2	MAY W10380668
3	HINGE, COOKTOP
4	ELEMENT (LF), 3000W DUAL
5	ELEMENT (2500W) (RIGHT FRONT)
6	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7	ELEMENT (CR), WARM ZONE
8	MAY W10106409
9	SPRING, ELEMENT
10	SCREW
11	SCREW
