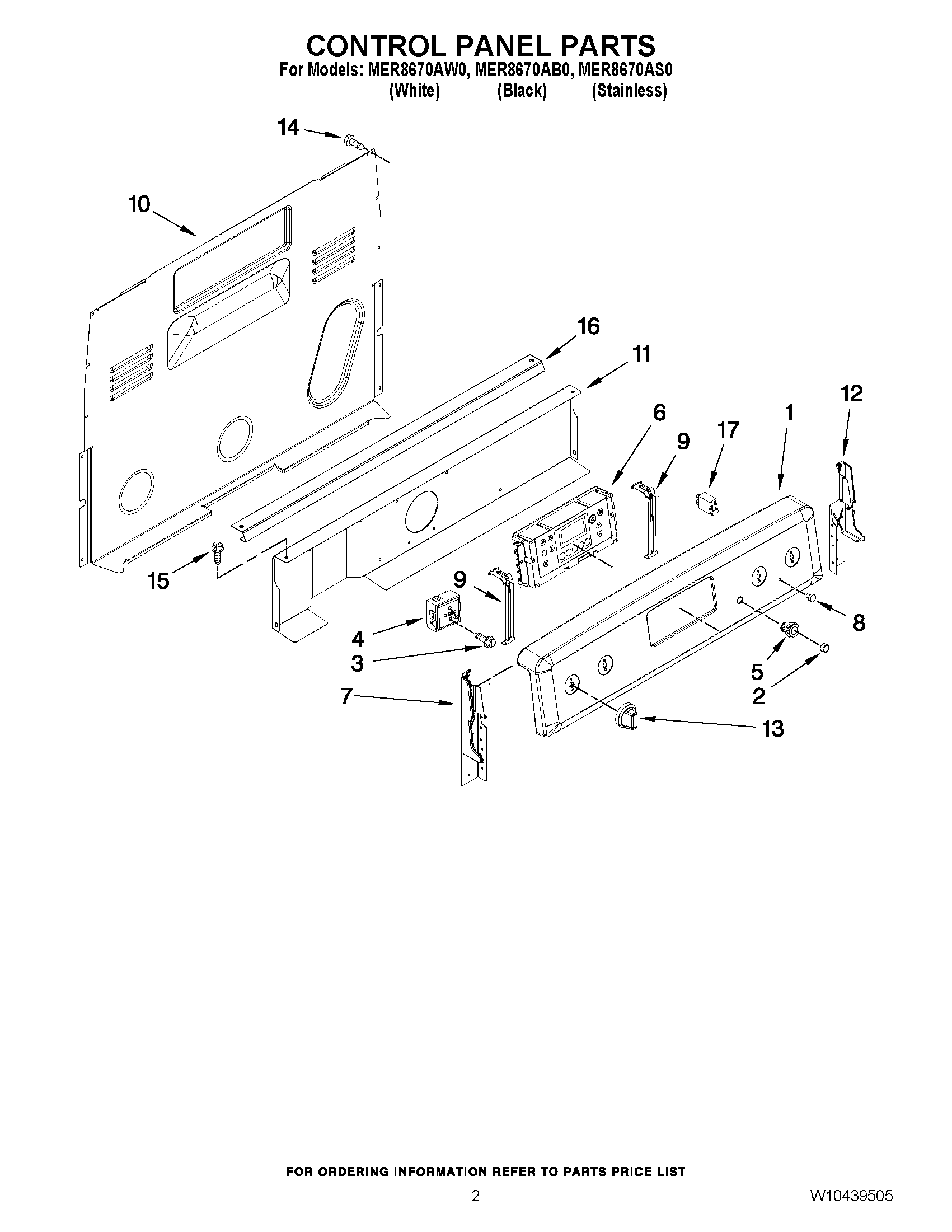

MER8670AB0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10333921
1MAY W10333920
1MAY W10333919
2BUTTON, KEEP WARM (STAINLESS)
2BUTTON, KEEP WARM (BLACK)
2MAY 9757492
3SCREW
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (DUAL) (LEFT FRONT)
4SWITCH, INFINITE (ORANGE) (LEFT FRONT AND RIGHT REAR)
5BEZEL, KEEP WARM (STAINLESS)
5BEZEL, KEEP WARM (WHITE)
5MAY W10217758
6CONTROL (LCC195) (BLACK)
6CONTROL (LCC195) (STAINLESS)
6CONTROL (LCC195) (WHITE)
7ENDCAP (BLACK (LEFT))
7ENDCAP (WHITE (LEFT))
8MAY 3196068
9MAY W10324410
10COVER, UPPER REAR
11SHIELD, HEAT
12ENDCAP (BLACK (RIGHT))
12ENDCAP (WHITE (RIGHT))
13MAY W10370184
13MAY W10370185
13MAY W10370186
14SCREW
15MAY W10362924
16Bracket, Console
17SWITCH, WARM CONSOLE MOUNTING
