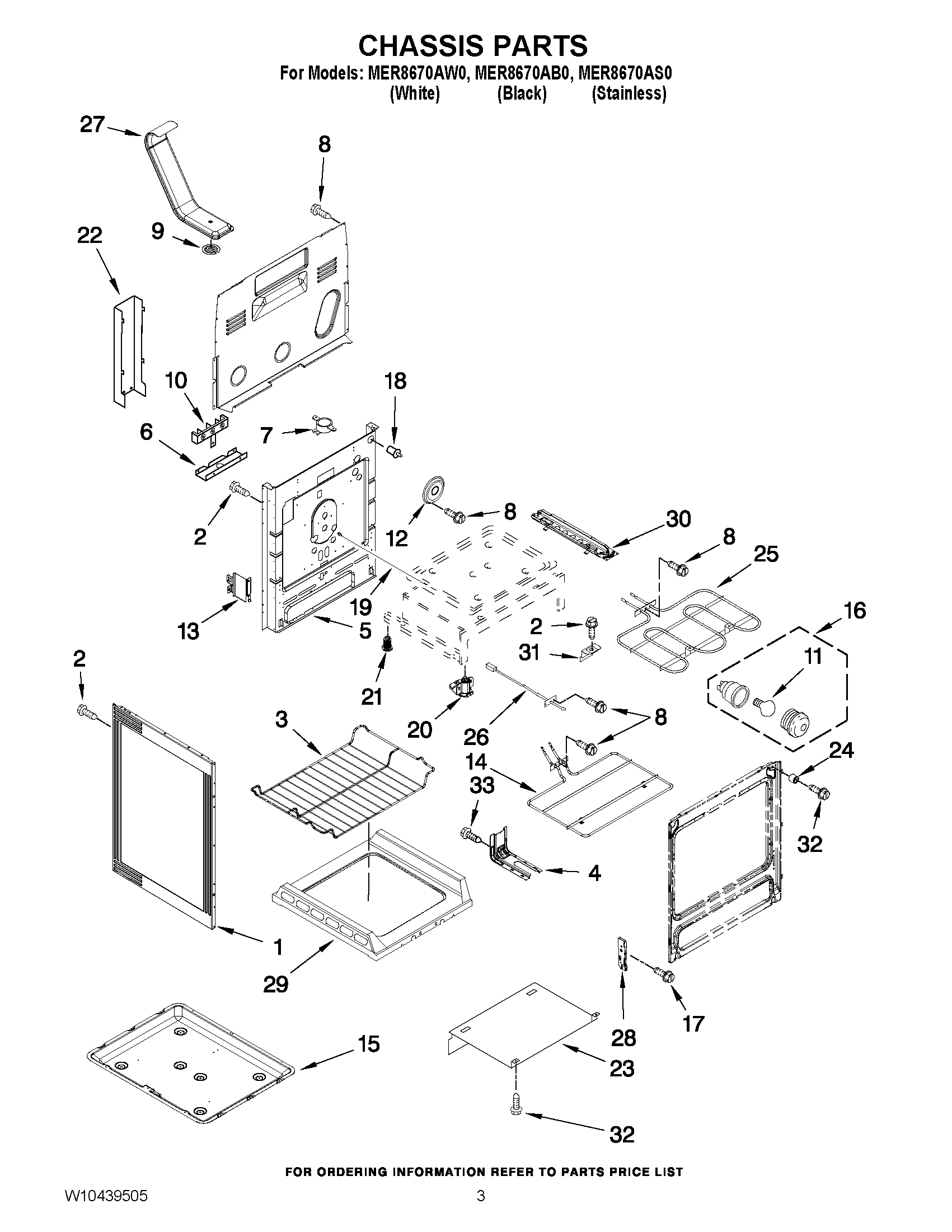

MER8670AB0 03 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, BOTTOM
NI	STRAP, INSULATION
NI	MAY W10194393
NI	MAY W10225524
NI	KIT, BARE WIRE ADAPTER BLOCK
1	MAY W10322769
1	MAY W10322770
2	SCREW
3	ACCESSORIES, RACK, OVEN (GULL-WING)
4	BRACKET, ANTI-TIP
5	BACK, MAIN
6	BRACKET, SERVICE
7	FUSE, THERMAL
8	MAY W10362924
9	MAY 9761301
10	BLOCK, TERMINAL
11	BULB, OVEN LIGHT
12	PLATE, CONVECTION
13	BRACKET, SUPPORT
14	ELEMENT, BAKE 3600W
15	MAY W10346147
16	MAY 3196701
17	MAY W10031780
18	MAY 9757262
19	ROD, REAR DOOR
20	ASSEMBLY, FRONT FOOT
21	FOOT, LEVELING
22	MAY 9758283
23	SHIELD, HEAT
24	SPACER, DOOR
25	MAY W10211455
26	SENSOR, OVEN
27	TUBE, VENT
28	RECEIVER, HINGE
29	MAY W10289079
30	ASSEMBLY, BASE RAIL (LEFT)
30	ASSEMBLY, BASE RAIL (RIGHT)
31	MAY W10035900
32	SCREW
33	SCREW, ANTI-TIP KIT
