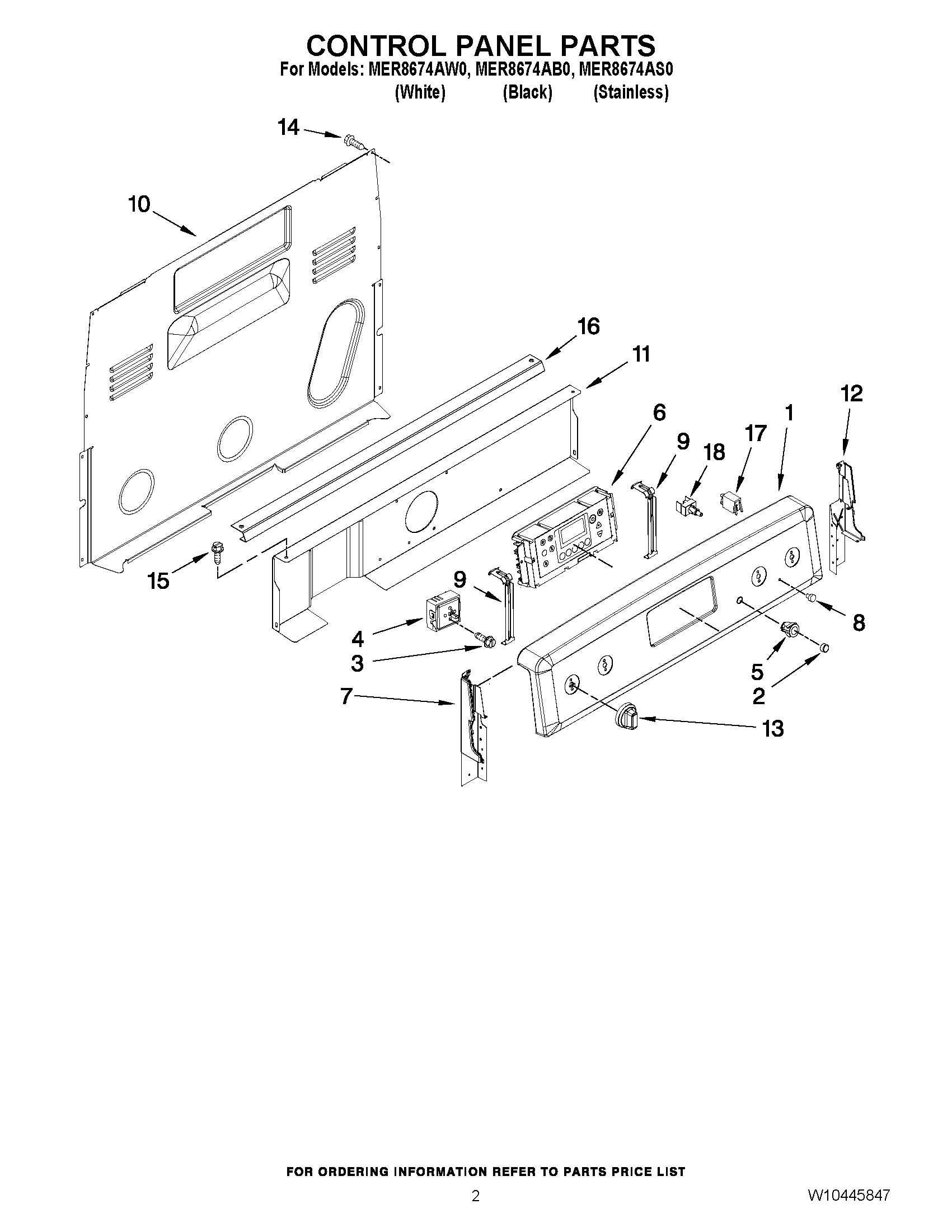

MER8674AB0 02 – CONTROL PANEL PARTS

MER8674AB0 02 – CONTROL PANEL PARTS

Written by

in

MER8674AB0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10333924
1MAY W10333923
1MAY W10333922
2BUTTON, KEEP WARM (BLACK)
2MAY 9757492
3SCREW
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (RIGHT FRONT)
4SWITCH, INFINITE (DUAL) (LEFT FRONT)
5BEZEL, KEEP WARM (STAINLESS)
5BEZEL, KEEP WARM (WHITE)
5MAY W10217758
6CONTROL (LCC195) (BLACK)
6CONTROL (LCC195) (STAINLESS)
6CONTROL (LCC195) (WHITE)
7ENDCAP (BLACK (LEFT))
7ENDCAP (WHITE (LEFT))
8MAY 3196068
9MAY W10324410
10COVER, UPPER REAR
11SHIELD, HEAT
12ENDCAP (WHITE (RIGHT))
12ENDCAP (BLACK (RIGHT))
13MAY W10370184
13MAY W10370186
13MAY W10370185
14SCREW
15MAY W10362924
16Bracket, Console
17MAY 8523265
18SWITCH, WARM CONSOLE MOUNTING
