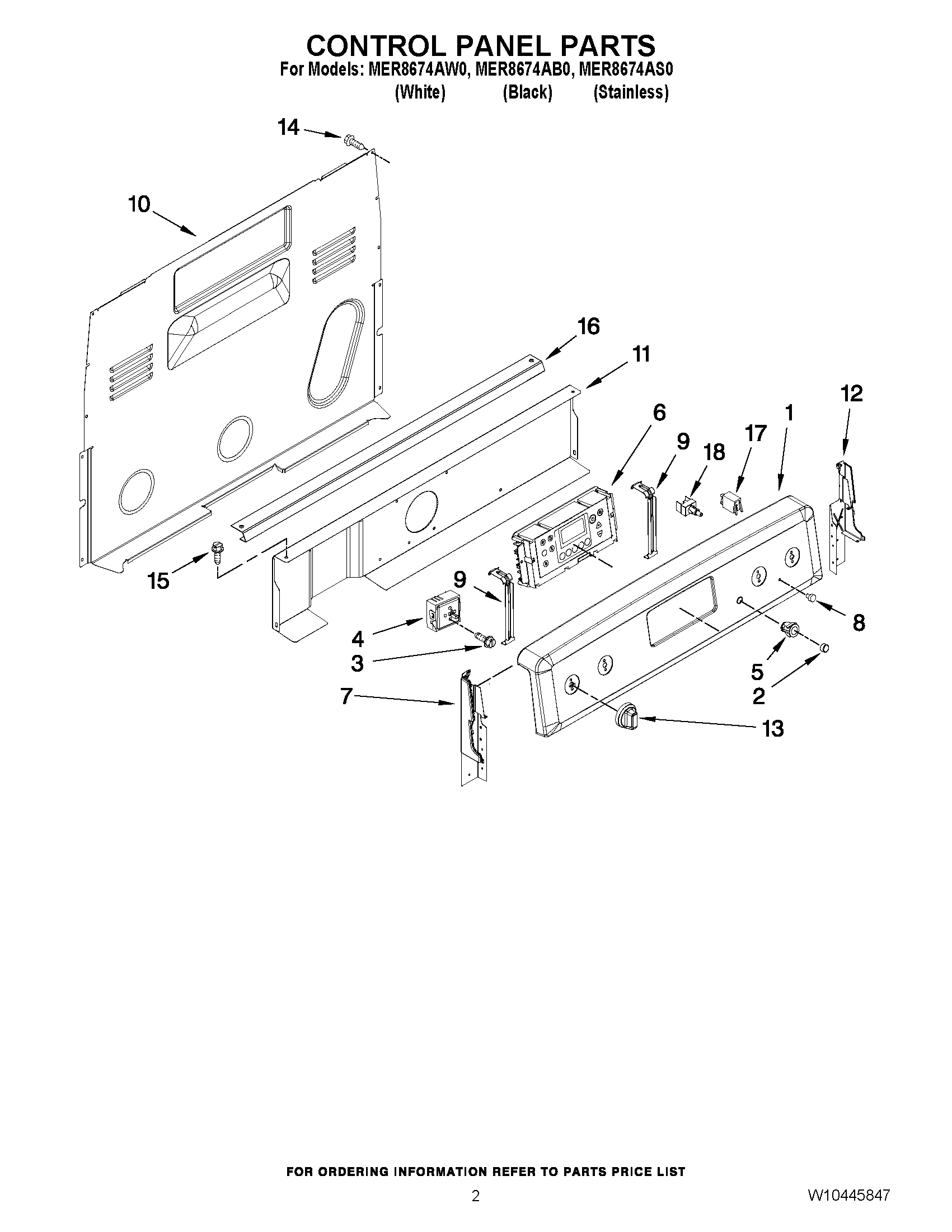

MER8674AS0 02 – CONTROL PANEL PARTSadmin2025-04-26T08:55:09+00:00MER8674AS0 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10333924 |
| 1 | MAY W10333923 |
| 1 | MAY W10333922 |
| 2 | BUTTON, KEEP WARM (BLACK) |
| 2 | MAY 9757492 |
| 3 | SCREW |
| 4 | SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR) |
| 4 | SWITCH, INFINITE (RIGHT FRONT) |
| 4 | SWITCH, INFINITE (DUAL) (LEFT FRONT) |
| 5 | BEZEL, KEEP WARM (STAINLESS) |
| 5 | BEZEL, KEEP WARM (WHITE) |
| 5 | MAY W10217758 |
| 6 | CONTROL (LCC195) (BLACK) |
| 6 | CONTROL (LCC195) (STAINLESS) |
| 6 | CONTROL (LCC195) (WHITE) |
| 7 | ENDCAP (BLACK (LEFT)) |
| 7 | ENDCAP (WHITE (LEFT)) |
| 8 | MAY 3196068 |
| 9 | MAY W10324410 |
| 10 | COVER, UPPER REAR |
| 11 | SHIELD, HEAT |
| 12 | ENDCAP (WHITE (RIGHT)) |
| 12 | ENDCAP (BLACK (RIGHT)) |
| 13 | MAY W10370184 |
| 13 | MAY W10370186 |
| 13 | MAY W10370185 |
| 14 | SCREW |
| 15 | MAY W10362924 |
| 16 | Bracket, Console |
| 17 | MAY 8523265 |
| 18 | SWITCH, WARM CONSOLE MOUNTING |
