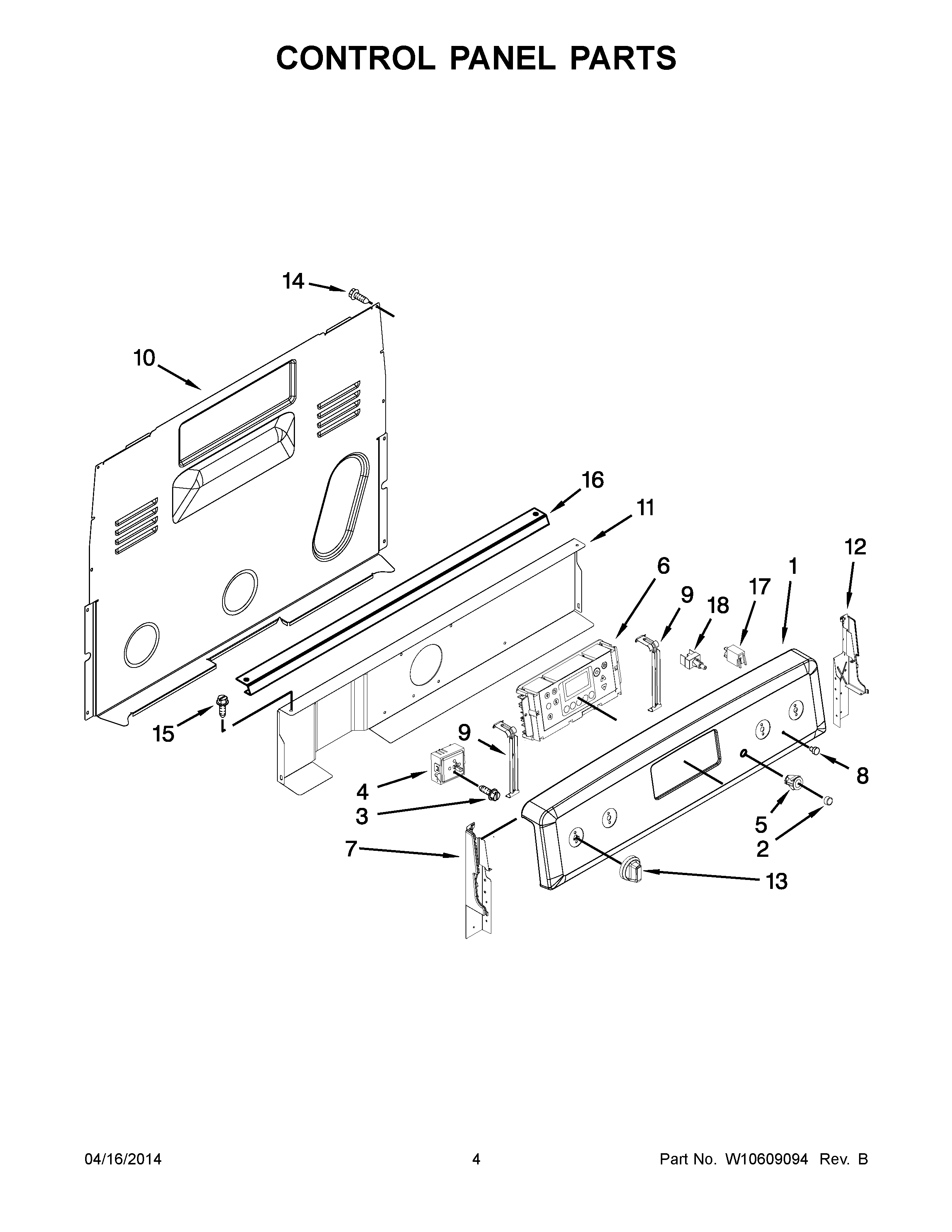

MER8680BS0 03 – CONTROL PANEL PARTS

Products

Position	Product
1	MAY W10604974
1	MAY W10604973
1	MAY W10604972
2	MAY 9757492
2	BUTTON, KEEP WARM (BLACK)
3	SCREW
4	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4	SWITCH, INFINITE (DUAL) (LEFT FRONT)
5	BEZEL, KEEP WARM (STAINLESS)
5	BEZEL, KEEP WARM (WHITE)
5	MAY W10217758
6	MAY W10477069
6	MAY W10477068
6	MAY W10477070
7	ENDCAP (BLACK (LEFT))
7	ENDCAP (WHITE (LEFT))
8	MAY 3196068
9	MAY W10324410
10	COVER, UPPER REAR
11	SHIELD, HEAT
12	ENDCAP (WHITE (RIGHT))
12	ENDCAP (BLACK (RIGHT))
13	MAY W10370184
13	MAY W10370186
13	MAY W10370185
14	SCREW
15	MAY W10362924
16	BRACKET, CONSOLE MOUNTING
17	MAY 8523265
18	SWITCH, WARM CONSOLE MOUNTING
