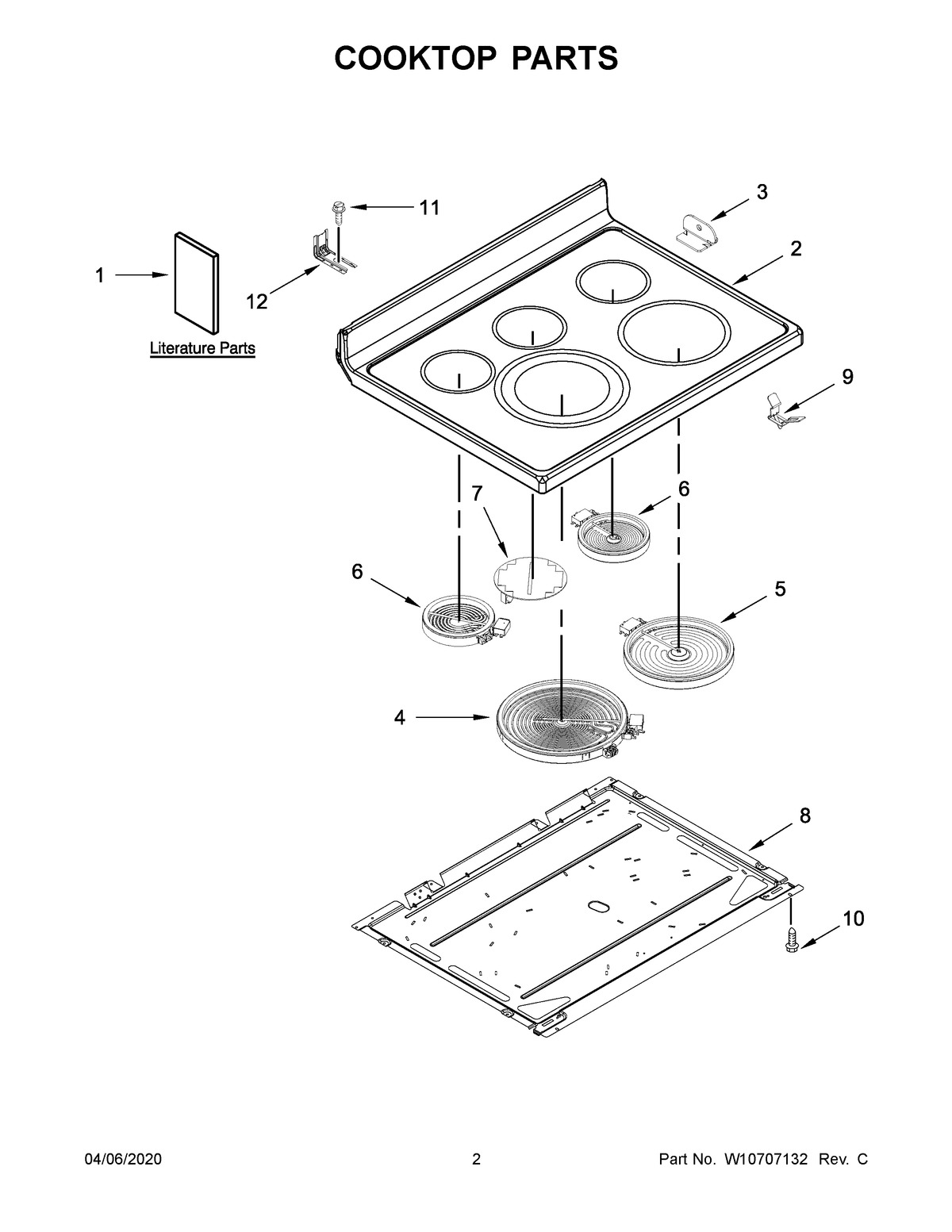

MER8700DB1 02 – COOKTOP PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	HARNESS, COOKTOP (LEFT)
NI	HARNESS, MAIN
NI	HARNESS, COOKTOP (RIGHT)
NI	HARNESS, SENSOR
NI	HARNESS, WIRE (CERAN)
1C	MAY W10400064
1	INSTRUCTIONS, INSTALLATION
1A	MAY W10667165
1B	TECH SHEET, ENGLISH
2A	MAY W10655905
2	MAY W10655902
3A	BRACKET, COOKTOP (RIGHT)
3	BRACKET, COOKTOP (LEFT)
4	ELEMENT (3000/1400W) (LEFT FRONT)
5	ELEMENT (3200W) (RIGHT FRONT)
6	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7	ELEMENT, WARM ZONE (CENTER REAR)
8	PAN, RADIANT ELEMENT
9	SPRING, ELEMENT
10	SCREW
11	SCREW, ANTI-TIP KIT
12	BRACKET, ANTI-TIP
