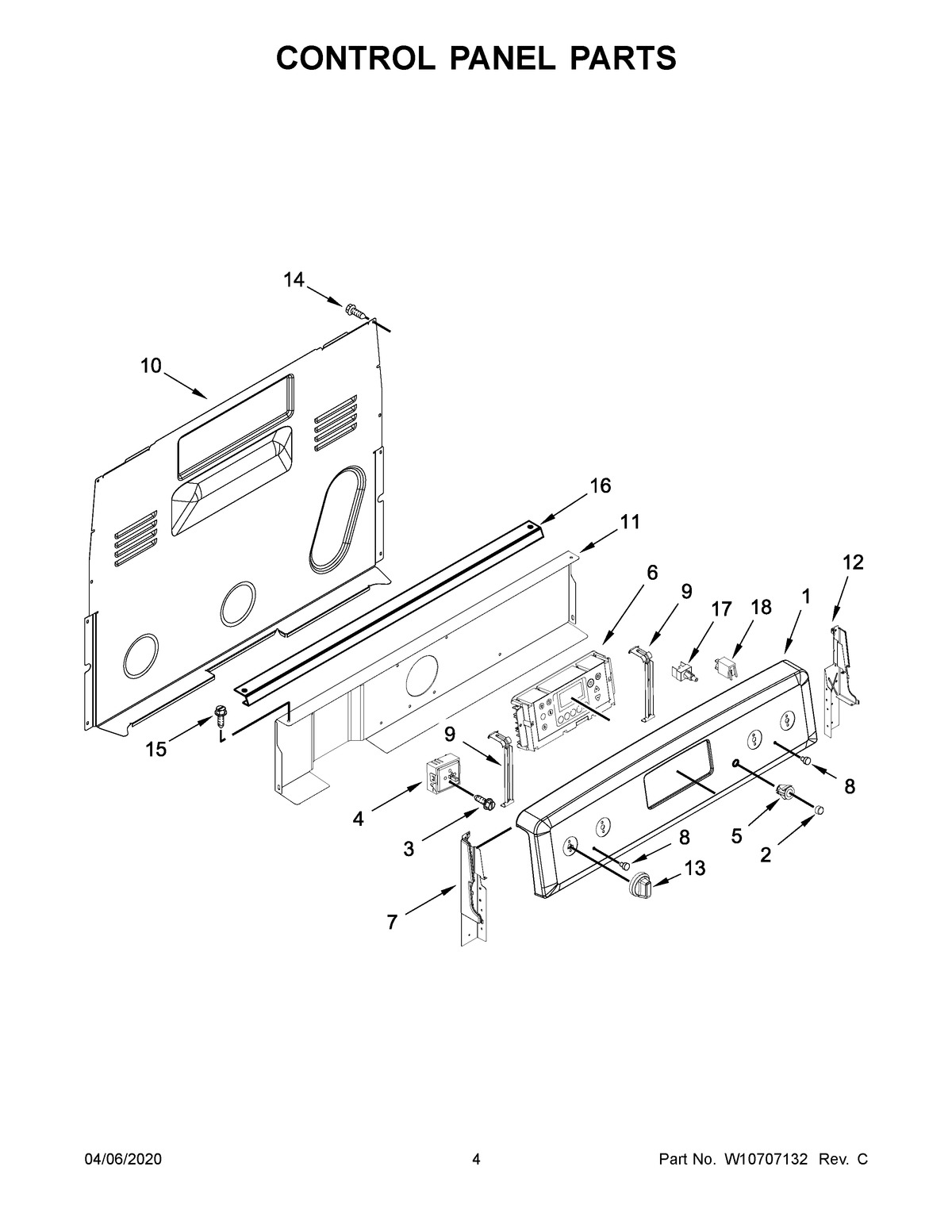

MER8700DB1 03 – CONTROL PANEL PARTS

Products

Position	Product
1B	MAY W10655844
1A	MAY W10655842
1	MAY W10655839
2B	BUTTON, KEEP WARM (STAINLESS)
2A	BUTTON, KEEP WARM (BLACK)
2	MAY 9757492
3	SCREW
4	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4B	SWITCH, INFINITE (RIGHT FRONT)
4A	SWITCH, INFINITE (DUAL) (LEFT FRONT)
5B	BEZEL, KEEP WARM (STAINLESS)
5	BEZEL, KEEP WARM (WHITE)
5A	MAY W10217758
6B	CONTROL (STAINLESS)
6A	MAY W10655843
6	MAY W10655840
7A	ENDCAP (BLACK (LEFT))
7	ENDCAP (WHITE (LEFT))
8	MAY 3196068
9	BRACKET, CONTROL
10	COVER, UPPER REAR
11	SHIELD, HEAT
12A	ENDCAP (BLACK (RIGHT))
12	ENDCAP (WHITE (RIGHT))
13	MAY W10666901
14	SCREW
15	MAY W10362924
16	BRACKET, CONSOLE MOUNTING
17	SWITCH, WARM CONSOLE MOUNTING
18	MAY 8523265
