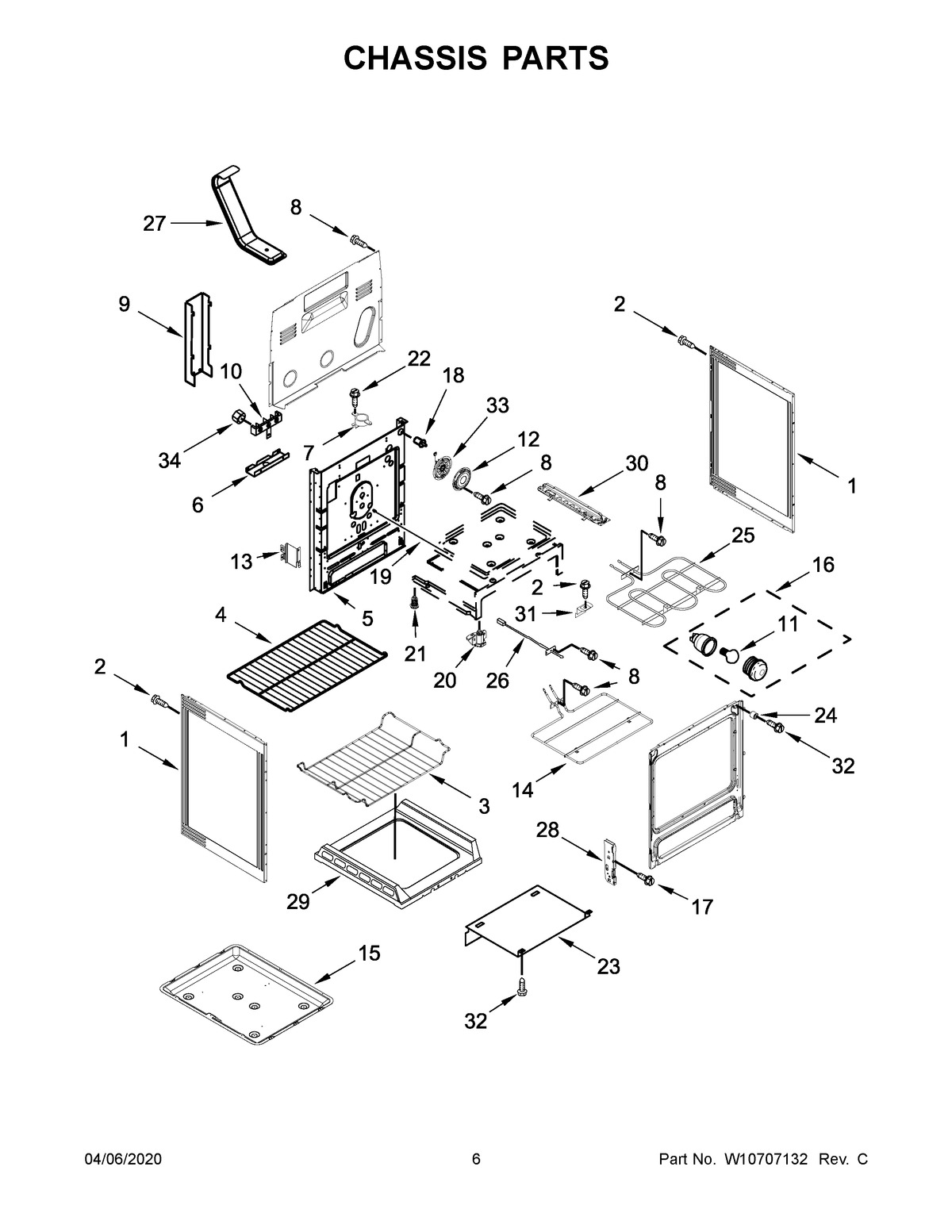

MER8700DB1 04 – CHASSIS PARTS

Products

Position	Product
NI	KIT, BARE WIRE ADAPTER BLOCK
NI	STRAP, INSULATION
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10194393
NI	INSULATION, BOTTOM
NI	MAY W10225524
1	PANEL, SIDE (WHITE)
1A	PANEL, SIDE (BLACK)
3	ACCESSORIES, RACK, OVEN (GULL-WING)
4	MAY W10531060
6	BRACKET, SERVICE
7	FUSE, THERMAL
8	MAY W10362924
9	COVER, TERMINAL BLOCK
10	BLOCK, TERMINAL
11	BULB, OVEN LIGHT
11A	BULB, HALOGEN 40 WATTS
12	MAY W10346154
13	BRACKET, SUPPORT
14	ELEMENT, BAKE
15	BAKE PAN
16	MAY W11175594
17	MAY W10031780
18	SWITCH, DOOR
19	ROD, REAR DOOR
20	ASSEMBLY, FRONT FOOT
21	FOOT, LEVELING
22	SCREW
23	SHIELD, HEAT
24	SPACER, DOOR
25	MAY W11095929
26	MAY W10586204
27	TUBE, VENT
28	RECEIVER, HINGE
29	BOTTOM, OVEN
30	ASSEMBLY, BASE RAIL (RIGHT)
30A	ASSEMBLY, BASE RAIL (LEFT)
31	MAY W10035900
32	SCREW
33	MAY W10617485
34	NUT
